Legrand
2097TRUSBAAGRY P&S SELF-TEST GFCI REC TR 20A W/ USB AA GRY..

Mouse over image to zoom, click to enlarge

  • 2097TRUSBAAGRY P&S SELF-TEST GFCI REC TR 20A W/ USB AA GRY..
  • 2097TRUSBAAGRY P&S SELF-TEST GFCI REC TR 20A W/ USB AA GRY..
  • 2097TRUSBAAGRY P&S SELF-TEST GFCI REC TR 20A W/ USB AA GRY..
  • 2097TRUSBAAGRY P&S SELF-TEST GFCI REC TR 20A W/ USB AA GRY..
  • 2097TRUSBAAGRY P&S SELF-TEST GFCI REC TR 20A W/ USB AA GRY..

Description: Pass & Seymour® GFCI/USB Receptacle Combo, Tamper-Resistant Self-Test, Series: radiant®, 125 V, 20 A, 2 Pole, NEMA 5-20R, Side Wire Terminal, Polycarbonate, Gray, 1.74 in W x 2.15 in D x 4.19 in H

Manufacturer PN: 2097TRUSBAAGRY

UPC:  78500737456

Kendall Electric Inc PN: 4614471

Invoice Description:

2097TRUSBAAGRY P&S SELF-TEST GFCI REC TR 20A W/ USB AA GRY..


SPEC SHEET

▸ See All in Combination GFCI Devices


How Can We Make This Page Better?

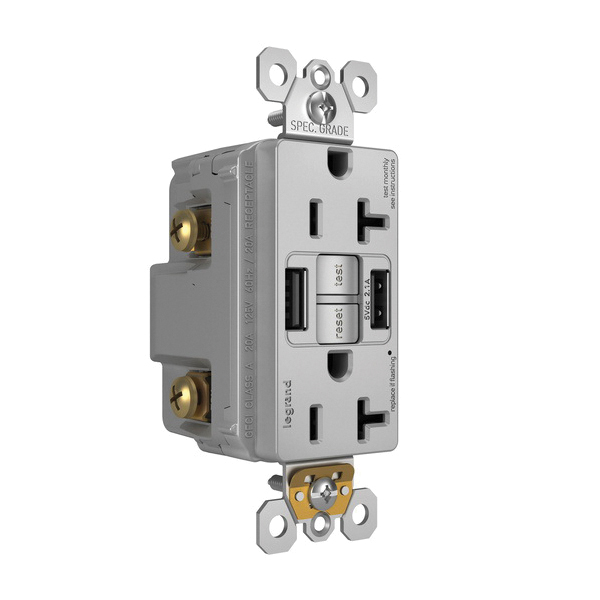

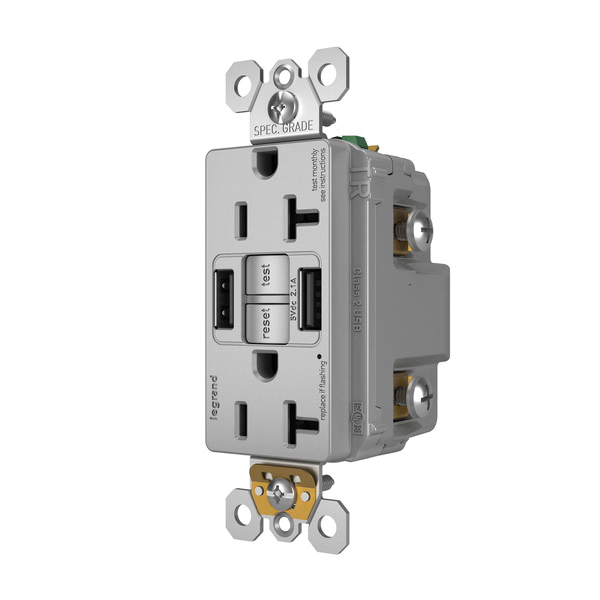

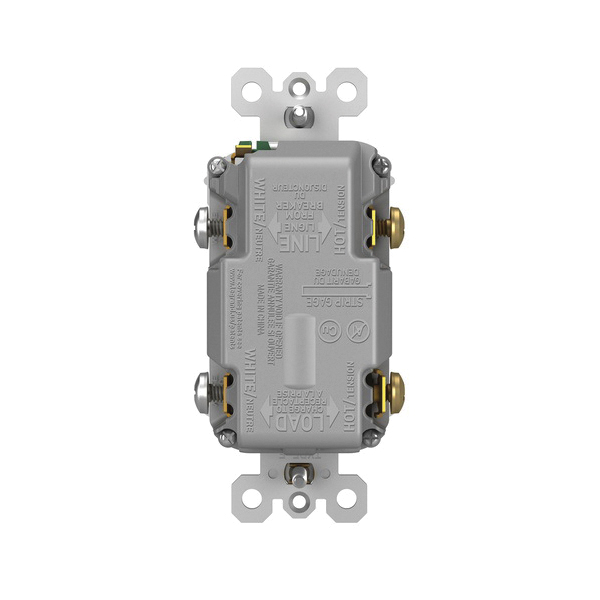

Pass & Seymour® 2097TRUSBAAGRY radiant® Tamper-Resistant Self-Test GFCI/USB Receptacle Combo With (2) USB Type A/A Port, 125 V, 20 A, 2 Poles, Gray

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Enjoy superior safety and the convenience of built-in USB charging, in a first-of-its-kind outlet! Perfect for adding modern connectivity anywhere, including areas of the home where ground fault protection is required (kitchens, bathrooms, laundry rooms and more). This outlet makes it easy to see and reset electrical trips right where they happen, while also providing two USB connections for keeping phones or tablets charged, no bulky adapter required.
Pass & Seymour® GFCI/USB Receptacle Combo, Tamper-Resistant Self-Test, Series: radiant®, 125 V, 20 A, 2 Pole, NEMA 5-20R, Side Wire Terminal, Polycarbonate, Gray, 1.74 in W x 2.15 in D x 4.19 in H

Specifications

 Amperage Rating 20 A
 Brand Name Pass & Seymour®
 Color Gray
 Dimensions 1.74 in W x 2.15 in D x 4.19 in H
 Manufacturer Part Number 2097TRUSBAAGRY
 Material Polycarbonate
 NEMA Rating 5-20R
 Number of Poles 2
 Series radiant®
 Standards/Approvals CSA C22.2 File No. 81/223|cULus File No. E140596|ECCN EAR99|NEC Certified
 Terminal Type Side Wire
 Type Tamper-Resistant Self-Test
 Video Links
 Voltage Rating 125 V

Features

▪ Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection
▪ First outlet of its kind to add USB connection to a GFCI outlet for easier charging, anywhere
▪ Provides reliable ground fault protection with a trip indicator light and reset button on the outlet for easy, accessible troubleshooting
▪ Includes traditional power outlets and two USB Type-A ports for convenient charging and shares 2 A charging capacity between both ports
▪ Self-tests every three seconds, ensuring continuous ground fault protection for greater safety
▪ Additionally, in case of test failure, the indicator light (red LED) will flash to signal there is an issue and the outlet should be replaced
▪ Equipped with proven SafeLock™ feature which disconnects power to the outlet if any critical components are damaged for added protection
▪ Protect children using a patented "invisi-shutter" system to prevent the insertion of foreign objects while maintaining a discreet, invisible effect and meets NEC® tamper-resistant requirements
▪ Installs quickly thanks to a redesigned side wire cavity for easier access
▪ Can provide ground fault protection to downstream outlets through feed-thru wiring
