Hubbell

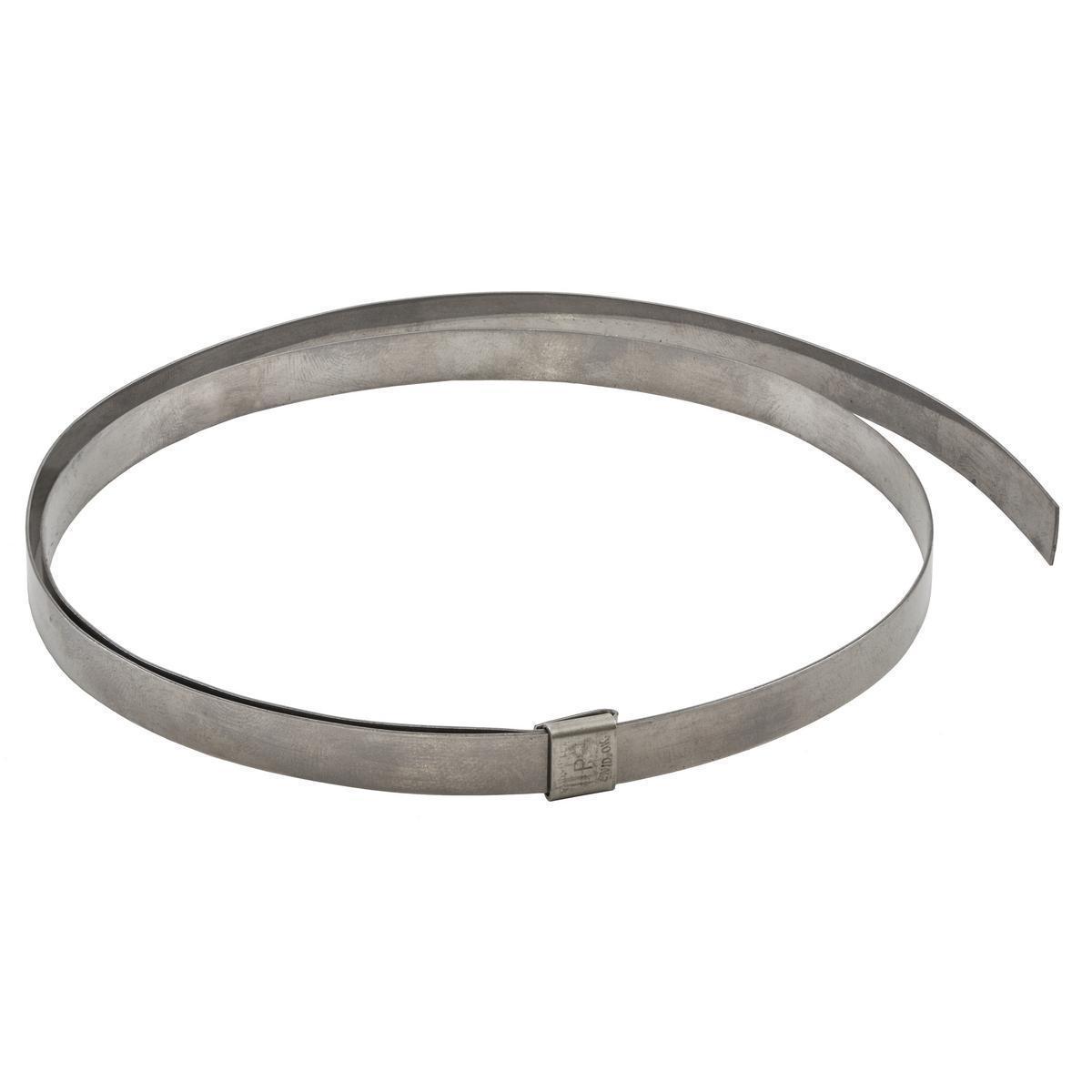

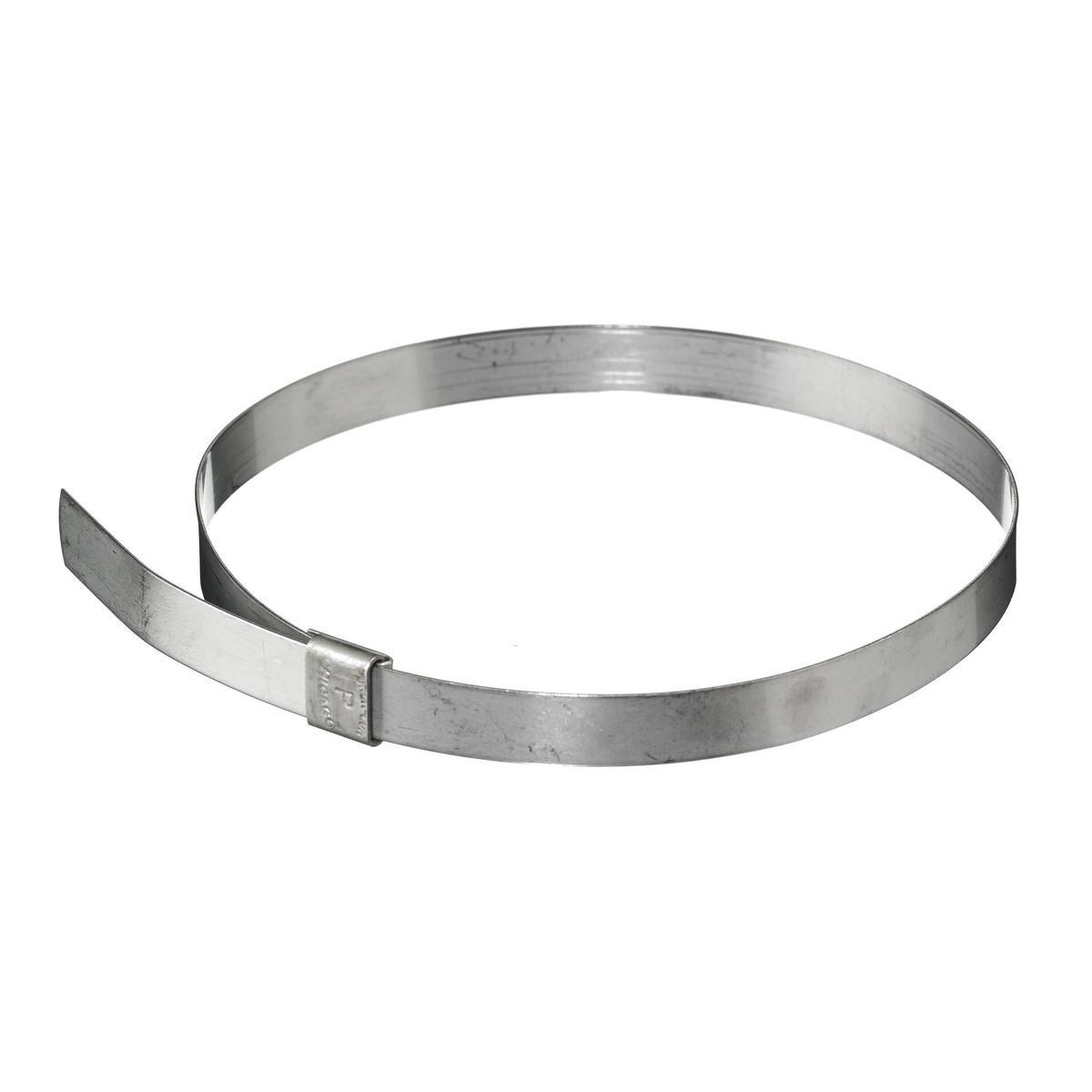

20320054 KELLEMS PUNCH-LOK BAND, 5/8" X 6"

Mouse over image to zoom, click to enlarge

  • 20320054 KELLEMS PUNCH-LOK BAND, 5/8" X 6"
  • 20320054 KELLEMS PUNCH-LOK BAND, 5/8" X 6"
  • 20320054 KELLEMS PUNCH-LOK BAND, 5/8" X 6"

Description: Hubbell Wiring Device-Kellems Punch-Lok®, 20320054, Cable End Band, Standard Non-Mounted, Series: 0-24, 3-1/2 to 5 in Cable, Specifications: Woven Construction, 0-24 Model, 6 in ID x 5/8 in W Dimensions

Manufacturer PN: 20320054

UPC:  78358532648

Kendall Electric Inc PN: 3989979

Invoice Description:

20320054 KELLEMS PUNCH-LOK BAND, 5/8" X 6"


SPEC SHEET

▸ See All in Cable Straps & Clamps


How Can We Make This Page Better?

Hubbell Wiring Device-Kellems Punch-Lok® 20320054 0-24 Standard Non-Mounted Cable End Band, 3-1/2 to 5 in Cable

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Punch-Lok® bands are applied over the tail of a grip to prevent the mesh from being tripped or pulled loose. Also, they assure full gripping action by locking the mesh of the tail in tight contact with the cable or rope. When the tail of a grip is the leading end, the bands are particularly important to prevent accidental release caused by tripping on obstructions. A conductor to conductor (double socking) pulling operation is a good example: where two grips connect two conductors to form a temporary splice. In all cases two Punch-Lok® bands should be double wrapped approximately one inch to two inches (2.54 to 5.08 cm) from the grips tail. Banding is required to ensure maximum reliability and guard against accidental release. It is also common practice to tape over the banded tail area to assure smooth passage through the sheaves. The conductor should be installed in the grip up to the elbows of the aluminum shoulders in order to assure full and complete gripping action as illustrated above.
Hubbell Wiring Device-Kellems Punch-Lok®, 20320054, Cable End Band, Standard Non-Mounted, Series: 0-24, 3-1/2 to 5 in Cable, Specifications: Woven Construction, 0-24 Model, 6 in ID x 5/8 in W Dimensions

Specifications

 Application General Cable Pulling Applications
 Brand Name Hubbell Wiring Device-Kellems
 Cable Size 3-1/2 to 5 in
 Dimensions 6 in ID x 5/8 in W
 Manufacturer Part Number 20320054
 PART NUMBER KEYWORDS 20320054 ; 8926743 ; 11829734 ; 783585326481 ; 78358532648 ; 00783585326481 ; 0783585326481
 Series 0-24
 Specifications Woven Construction, 0-24 Model
 Standards/Approvals CSA Certified|UL Listed
 Type Standard Non-Mounted
 Video Links

Features

▪ Bands are applied over the tail of a grip to prevent mesh frombeing tripped or pulled loose

Resources

 Catalog Page
 MSDS URL None Required
 Product Data Sheet
