Southwire Company

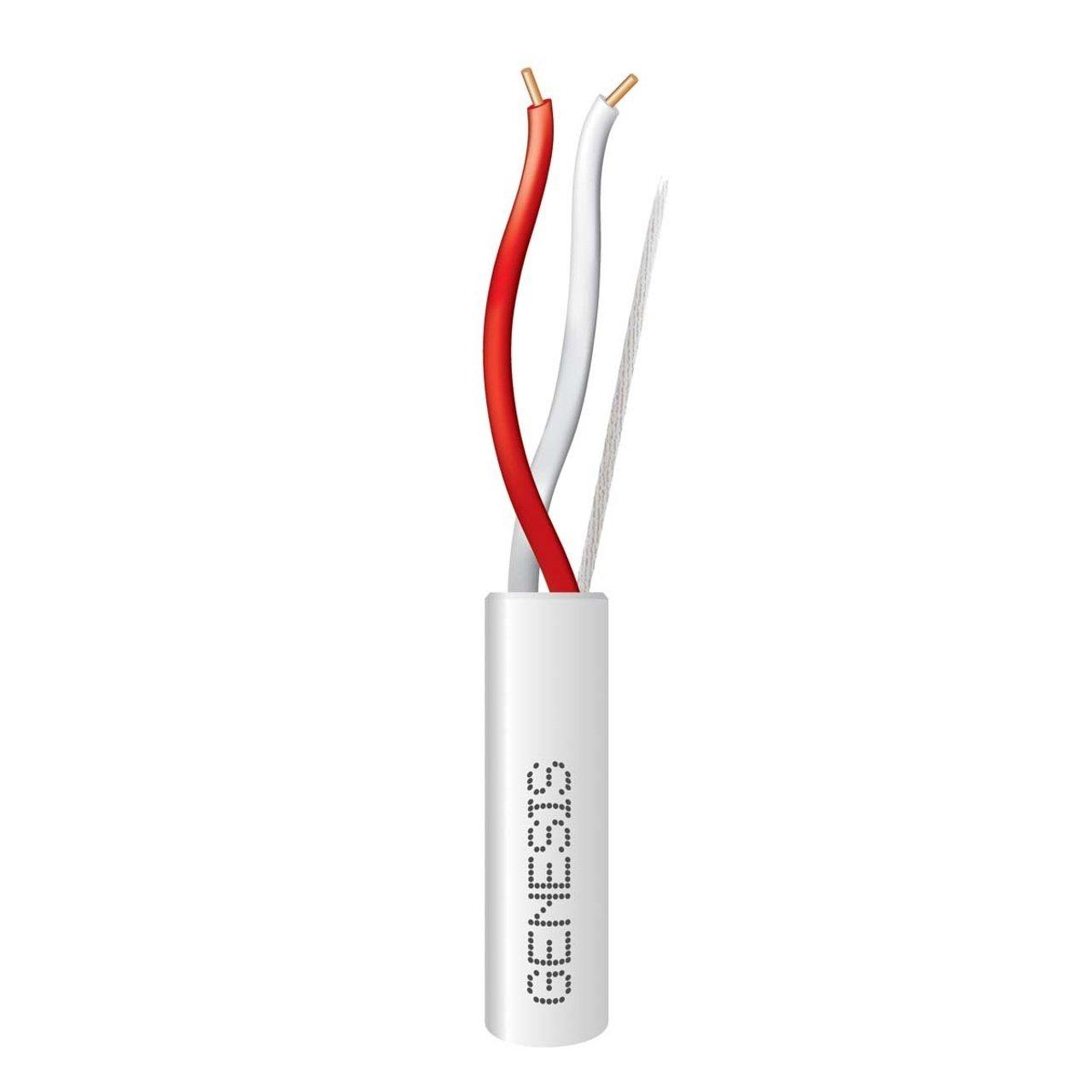

20/2 THERM (47014801) 500' SPOOL TYPE CL2 PLASTIC JACKET WHITE WIRE

Mouse over image to zoom, click to enlarge

  • 20/2 THERM (47014801) 500' SPOOL TYPE CL2 PLASTIC JACKET WHITE WIRE
  • 20/2 THERM (47014801) 500' SPOOL TYPE CL2 PLASTIC JACKET WHITE WIRE

Description: Genesis Cable, 47014801, Wire and Cable, Thermostat, Series: 4701, Reel Packaging, 150 V, 2 Conductors, Solid Conductor, 20 AWG Conductor, 0.118 in OD, 500 ft Length, 1 Strands, 11.1 Ohm/1000 ft at 20 deg C Resistance, Polypropylene Insulation, PVC Jacket, White Jacket, -20 to 60 deg C

Manufacturer PN: 47014801

UPC:  03288619043

Kendall Electric Inc PN: 61239

Invoice Description:

20/2 THERM (47014801) 500' SPOOL TYPE CL2 PLASTIC JACKET WHITE WIRE


SPEC SHEET

How Can We Make This Page Better?

Genesis Cable 47014801 4701 Thermostat Wire and Cable, Reel Packaging, 150 V, (2) Conductors 20 AWG Conductor Solid Conductor, 500 ft L

Log In for Pricing and Availability




Description

Genesis Cable, 47014801, Wire and Cable, Thermostat, Series: 4701, Reel Packaging, 150 V, 2 Conductors, Solid Conductor, 20 AWG Conductor, 0.118 in OD, 500 ft Length, 1 Strands, 11.1 Ohm/1000 ft at 20 deg C Resistance, Polypropylene Insulation, PVC Jacket, White Jacket, -20 to 60 deg C

Specifications

 Brand Name Genesis Cable
 Conductor Size 20 AWG
 Conductor Type Solid
 Insulation Material Polypropylene
 Jacket Color White
 Jacket Material PVC
 Length 500 ft
 Manufacturer Part Number 47014801
 Number of Conductors 2
 PART NUMBER KEYWORDS 47014801 ; 619172035200 ; 61917203520 ; 00619172035200
 Resistance 11.1 Ohm/1000 ft at 20 deg C
 Series 4701
 Strands 1
 Temperature Rating -20 to 60 deg C
 Type Thermostat
 Voltage Rating 150 V

Features

▪ 13.25 in Package Width
▪ 4.25 in Package Height
▪ 21 lb Product Weight
▪ Cable Rating - General Purpose
▪ Cable Listing - CL2, Sunlight Resistant
▪ Conductor Material - Bare Copper
▪ Shielding - No
▪ Rip Cord - Yes
▪ 67% Velocity of Propagation
▪ 4 Package Quantity
▪ Cable Packaging - Reel
▪ 13.25 in Package Length

Resources

 Product Data Sheet
