Eaton

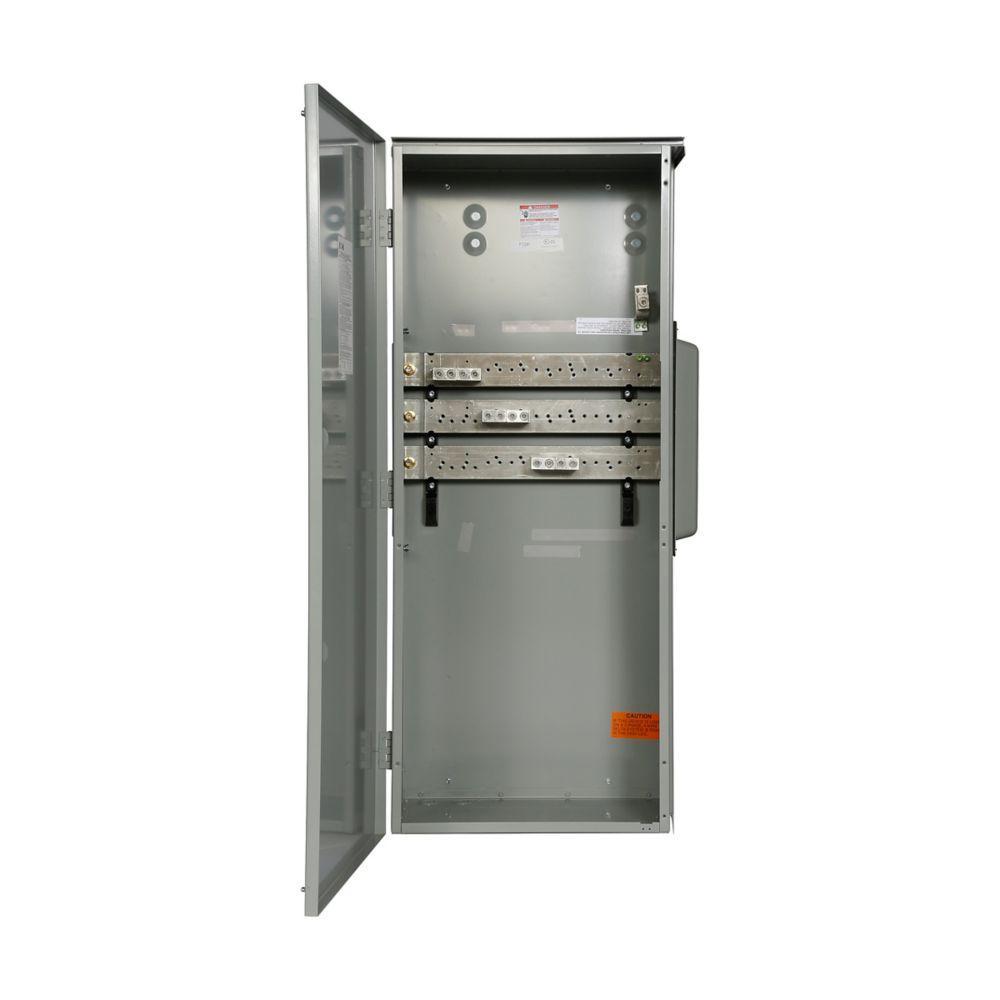

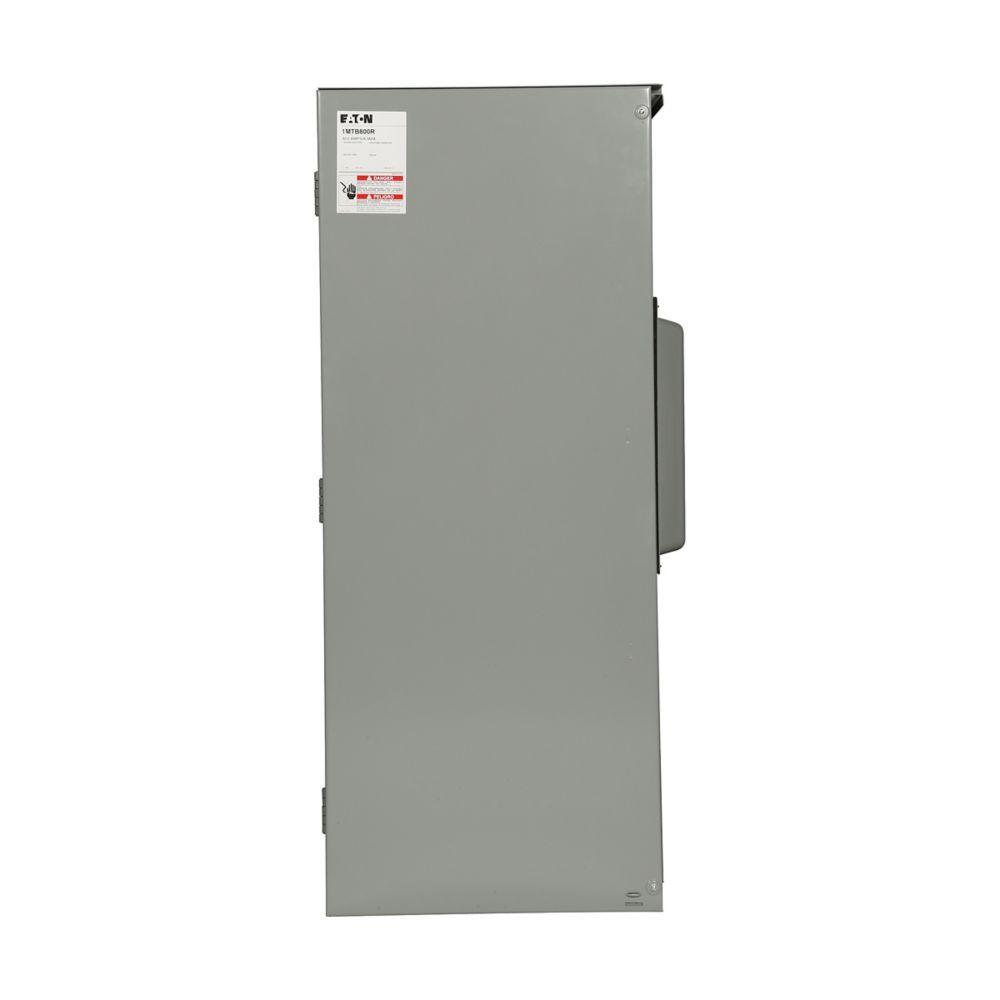

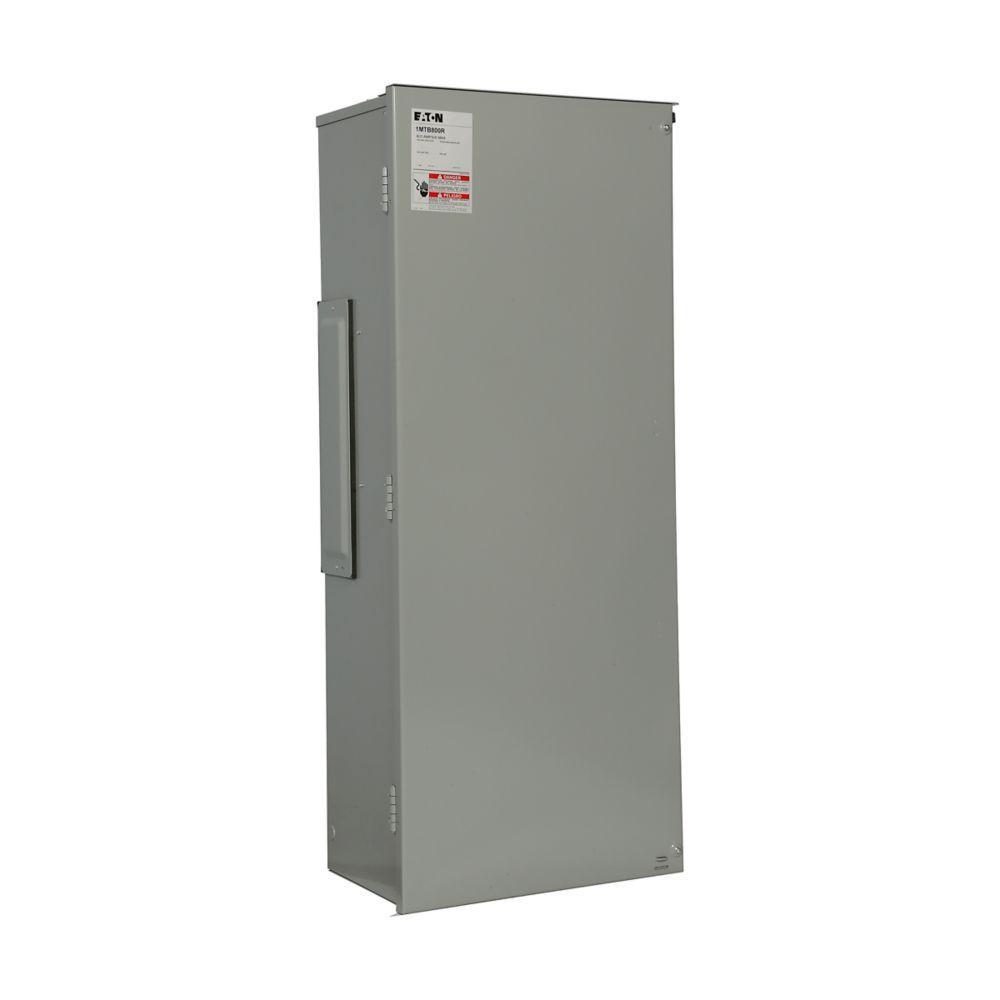

1MTB800R CH Main Service Module, Main Terminal Box

Mouse over image to zoom, click to enlarge

  • 1MTB800R CH Main Service Module, Main Terminal Box
  • 1MTB800R CH Main Service Module, Main Terminal Box
  • 1MTB800R CH Main Service Module, Main Terminal Box
  • 1MTB800R CH Main Service Module, Main Terminal Box

Description: EATON Main Terminal Box, 3-Wire Standard, 120/240 V AC, 800 A, 1 Phase , Bottom/Overhead/Top/Underground Feed, NEMA 3R, (4) 2 AWG to 600 kcmil Wire, 100 kA Short Circuit Current, Line Side Lug, 22.54 in L x 11.19 in W x 47.7 in H

Manufacturer PN: 1MTB800R

UPC:  78684905305

Kendall Electric Inc PN: 2102463

Invoice Description:

1MTB800R CH Main Service Module, Main Terminal Box


SPEC SHEET

▸ See All in Main Lug Terminal Box Modules


How Can We Make This Page Better?

EATON 1MTB800R 3-Wire Standard Main Terminal Box, 120/240 V AC, 800 A, 1 Phase , Bottom/Overhead/Top/Underground Feed, NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's main service modules are part of Gangable Metering, which consists of a main service module used in conjunction with meter stacks to make a custom metering lineup. Gangable metering is used in large condominiums, strip malls or other applications where more than six units are metered.
EATON Main Terminal Box, 3-Wire Standard, 120/240 V AC, 800 A, 1 Phase , Bottom/Overhead/Top/Underground Feed, NEMA 3R, (4) 2 AWG to 600 kcmil Wire, 100 kA Short Circuit Current, Line Side Lug, 22.54 in L x 11.19 in W x 47.7 in H

Specifications

 Amperage Rating 800 A
 Application Power Distribution, Indoor/Outdoor, Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Connection Type Line Side Lug
 Dimensions 22.54 in L x 11.19 in W x 47.7 in H
 Enclosure NEMA 3R
 Feed Type Bottom/Overhead/Top/Underground
 Includes Phase and Neutral Lug
 Manufacturer Part Number 1MTB800R
 PART NUMBER KEYWORDS 1MTB800R ; 7460107 ; 786849053055 ; 78684905305 ; 00786849053055
 Phase 1
 Short Circuit Current Rating 100 kA
 Standards/Approvals UL Listed
 Type 3-Wire Standard
 Voltage Rating 120/240 V AC

Features

▪ Short circuit rating is the least AIC rating of any installed main tenant breaker to a maximum of 100000 RMS symmetrical amperes
▪ Aluminum bus housing

Resources

 Catalog Page
 Product Data Sheet
