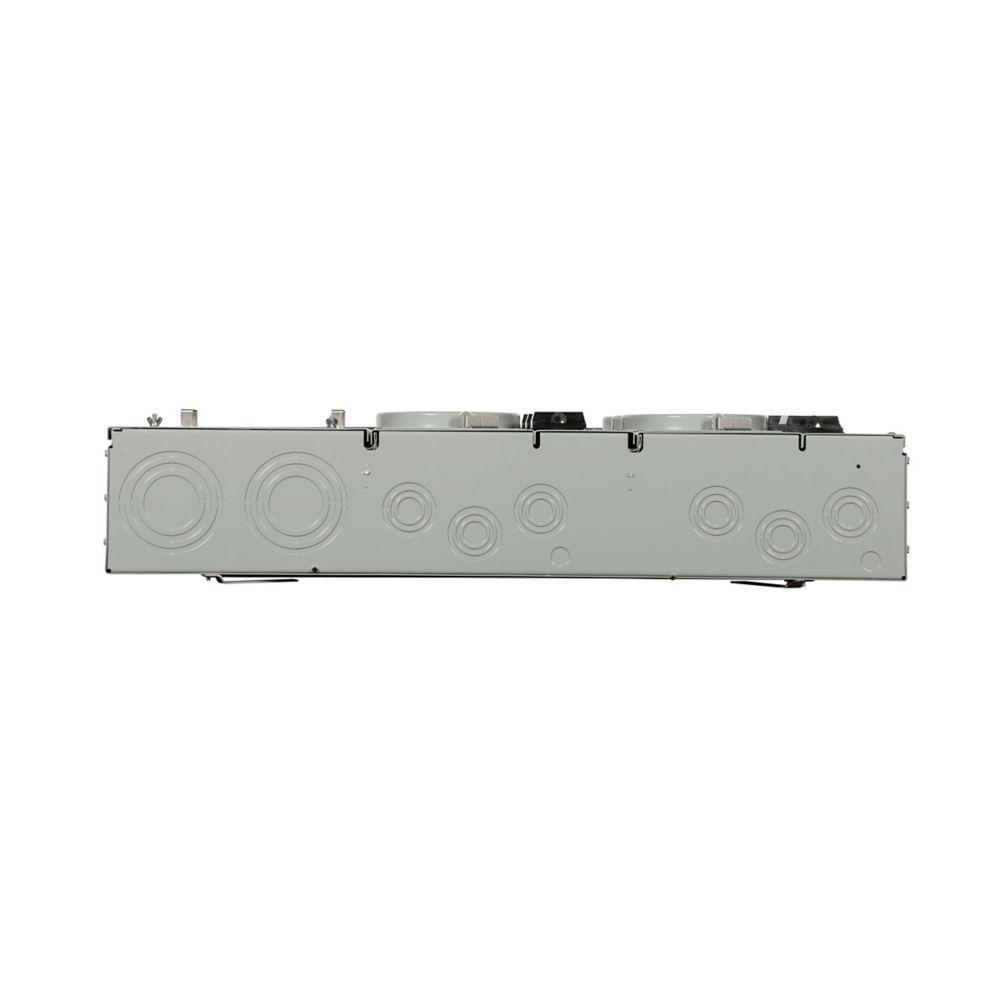

1MP6126RRLBC CH GROUP METERING METER PACK

Mouse over image to zoom, click to enlarge

  • 1MP6126RRLBC CH GROUP METERING METER PACK
  • 1MP6126RRLBC CH GROUP METERING METER PACK

Description: EATON Meter Pack, 120/240 V AC, 600 A Bus, 125 A Socket, 6 Meter Sockets, 1 ph, Ringless Socket Cover Style, 5 Socket Jaws, BRX2 Breaker, 44 in L x 38 in W x 9 in H

Manufacturer PN: 1MP6126RRLBC

UPC:  78211499031

Kendall Electric Inc PN: 3677898

Invoice Description:

1MP6126RRLBC CH GROUP METERING METER PACK


SPEC SHEET

▸ See All in Meter Packs


How Can We Make This Page Better?

EATON 1MP6126RRLBC Meter Pack, 125 A, 120/240 V AC, 600 A Bus

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Meter Packs, or All-In-Ones, allow multi-tenant metering in a single location and thus provide a space and installation cost savings for residential and light commercial applications. Ideal for garden apartments, small condominiums and townhouses where six or less units are metered through one centrally located meter pack.
EATON Meter Pack, 120/240 V AC, 600 A Bus, 125 A Socket, 6 Meter Sockets, 1 ph, Ringless Socket Cover Style, 5 Socket Jaws, BRX2 Breaker, 44 in L x 38 in W x 9 in H

Specifications

 Application Indoor and Outdoor Construction
 Brand Name EATON
 Breaker Type BRX2
 Bus Amps 600 A
 Dimensions 44 in L x 38 in W x 9 in H
 Manufacturer Part Number 1MP6126RRLBC
 Number Of Meter Sockets 6
 PART NUMBER KEYWORDS 1MP6126RRLBC ; 7430628 ; 782114990315 ; 78211499031 ; 00782114990315
 Phase 1
 Socket Amps 125 A
 Socket Cover Style Ringless
 Socket Jaws 5
 Standards/Approvals UL Listed
 Voltage Rating 120/240 V AC

Features

▪ Copper bus
▪ Ringless with horn bypass, fifth jaw factory installed at 9 o'clock position
▪ Eaton's 1MP units are self-contained (main terminal box included) for installations requiring up to six meter socket positions in a single enclosure
▪ Units are not gangable with any other metering device
▪ Approved by major power companies, UL listed, suitable as service equipment and meet the service and electrical requirements of EUSERC and CECHA
▪ Series rating up to 100 kA
▪ All ringless cover devices include fifth jaw as standard
▪ Bondable neutral
▪ Incoming lugs not included (phase A, phase B and neutral)
▪ Provision for Two-pole breaker (plug-on type for 125 A sockets and bolt-on type for 200 A sockets), circuit breakers not included
▪ For overhead use, order DS_MH type hub
