Eaton

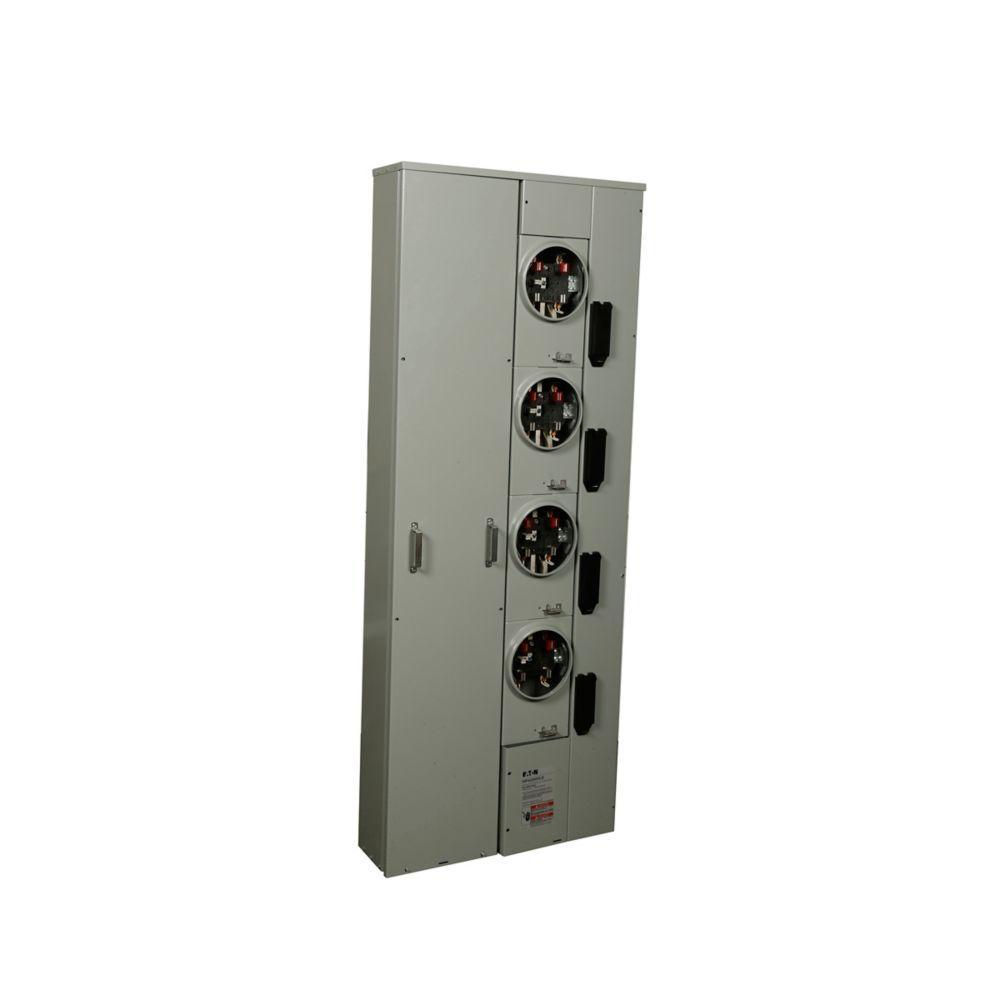

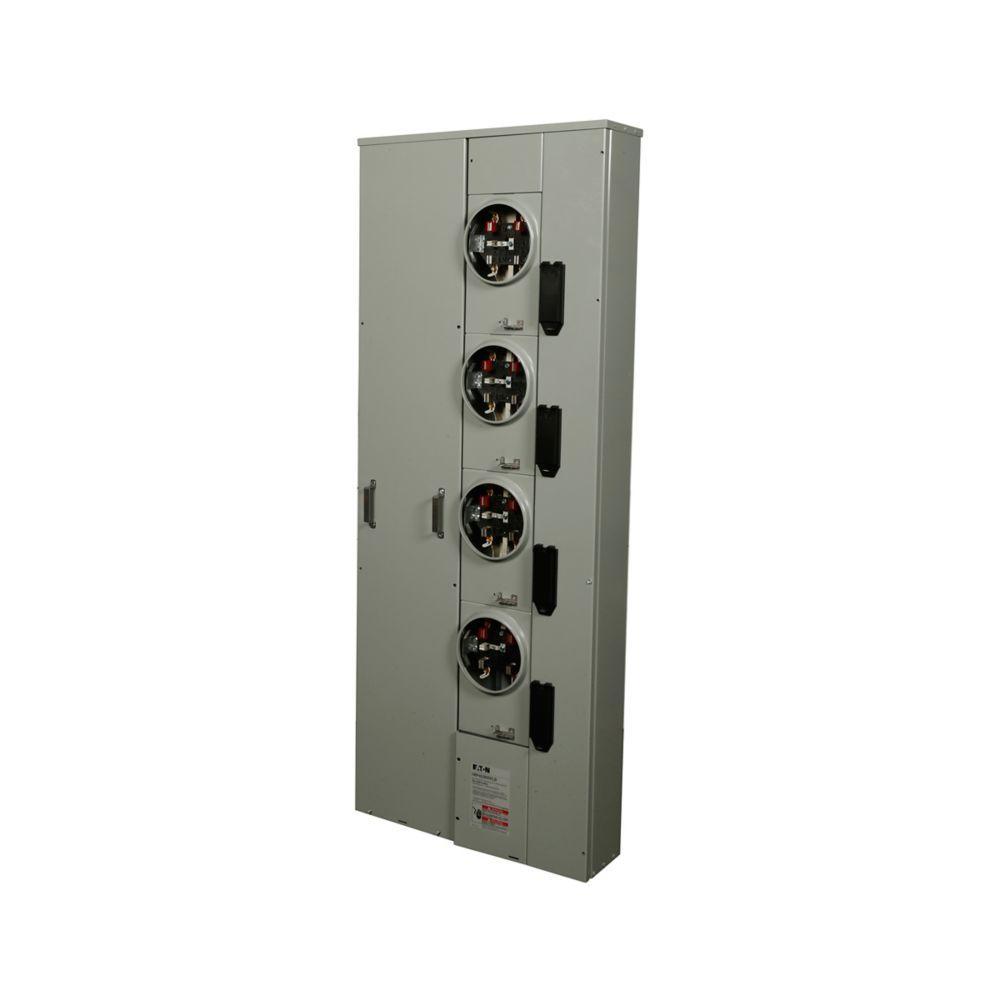

1MP4206RRLB C-H METER PACK 4 200A SOCKETS

Mouse over image to zoom, click to enlarge

  • 1MP4206RRLB C-H METER PACK 4 200A SOCKETS
  • 1MP4206RRLB C-H METER PACK 4 200A SOCKETS
  • 1MP4206RRLB C-H METER PACK 4 200A SOCKETS

Description: EATON Meter Pack, Group Metering, Self-Contained Socket, Underground Feed, 120/240 V AC, 600 A Bus, 200 A Socket, 4 Meter Sockets, 1 ph, Ringless Socket Cover Style, 5 Socket Jaws, Bolt-On/CCV2_X/CCVH2_X/CVS2_XMM/CV2_XMM/CVH2_XMM/MN/WI/IA/MI Breaker, 7.01 in L x 25.5 in W x 42.69 in H Dimensions

Manufacturer PN: 1MP4206RRLB

UPC:  78684905275

Kendall Electric Inc PN: 2225784

Invoice Description:

1MP4206RRLB C-H METER PACK 4 200A SOCKETS


SPEC SHEET

▸ See All in Meter Packs


How Can We Make This Page Better?

EATON 1MP4206RRLB Group Metering Meter Pack With Horn Bypass, 200 A Self-Contained Socket, Underground Feed, 120/240 V AC, 600 A Bus

Log In for Pricing and Availability




Description

Eaton's Meter Packs, or All-In-Ones, allow multi-tenant metering in a single location and thus provide a space and installation cost savings for residential and light commercial applications. Ideal for garden apartments, small condominiums and townhouses where six or less units are metered through one centrally located meter pack.
EATON Meter Pack, Group Metering, Self-Contained Socket, Underground Feed, 120/240 V AC, 600 A Bus, 200 A Socket, 4 Meter Sockets, 1 ph, Ringless Socket Cover Style, 5 Socket Jaws, Bolt-On/CCV2_X/CCVH2_X/CVS2_XMM/CV2_XMM/CVH2_XMM/MN/WI/IA/MI Breaker, 7.01 in L x 25.5 in W x 42.69 in H Dimensions

Specifications

 Application Electrical Assemblies, Panels and OEMs Applications
 Brand Name EATON
 Breaker Type Bolt-On/CCV2_X/CCVH2_X/CVS2_XMM/CV2_XMM/CVH2_XMM/MN/WI/IA/MI
 Bus Amps 600 A
 Dimensions 7.01 in L x 25.5 in W x 42.69 in H
 Feed Type Underground
 Manufacturer Part Number 1MP4206RRLB
 Number Of Meter Sockets 4
 PART NUMBER KEYWORDS 1MP4206RRLB ; 7459978 ; 786849052751 ; 78684905275 ; 00786849052751
 Phase 1
 Socket Amps 200 A
 Socket Cover Style Ringless
 Socket Jaws 5
 Standards/Approvals UL Listed
 Type Group Metering
 Voltage Rating 120/240 V AC

Features

▪ Units are self-contained (main terminal box included) for installations requiring up to six meter socket positions in a single enclosure
▪ Units are not gangable with any other metering device
▪ Series rating up to 100 kAIC
▪ Bondable neutral
▪ Provision for 2-pole breaker
▪ Underground incoming feed
▪ Aluminum bus housing
