Eaton

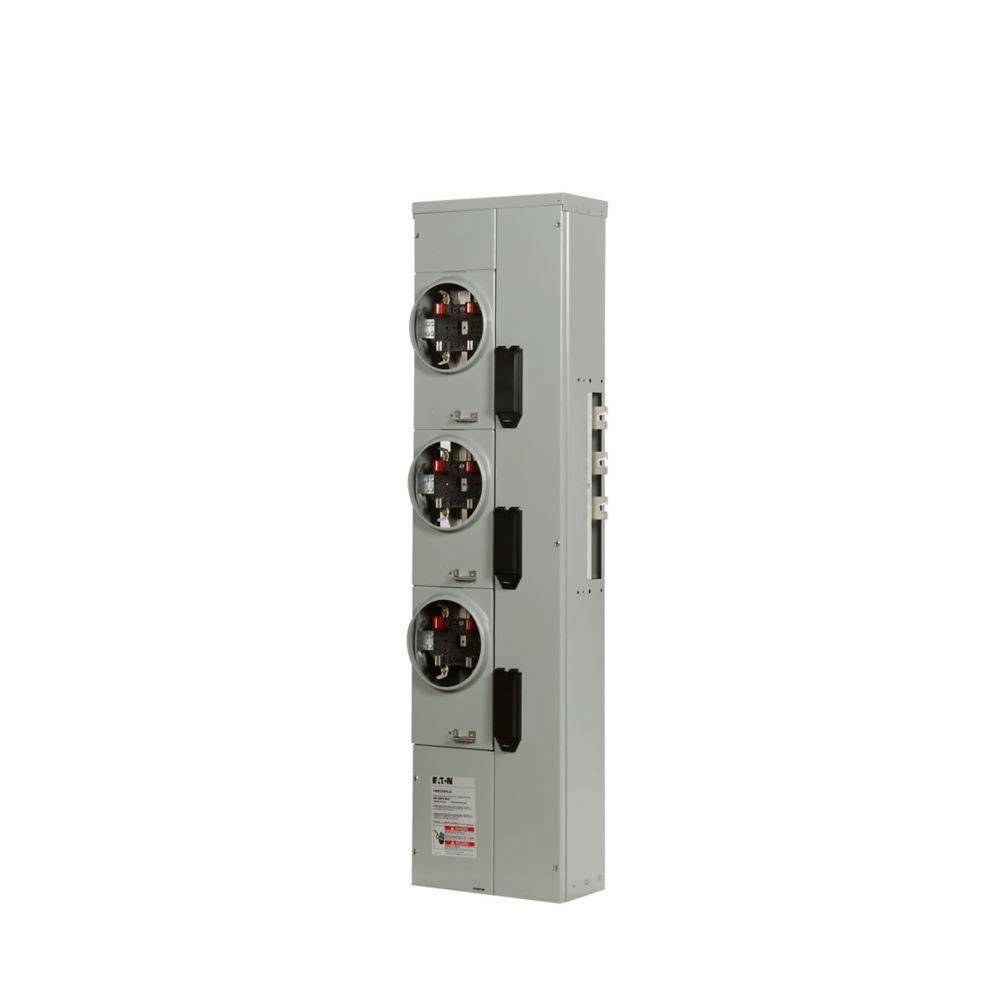

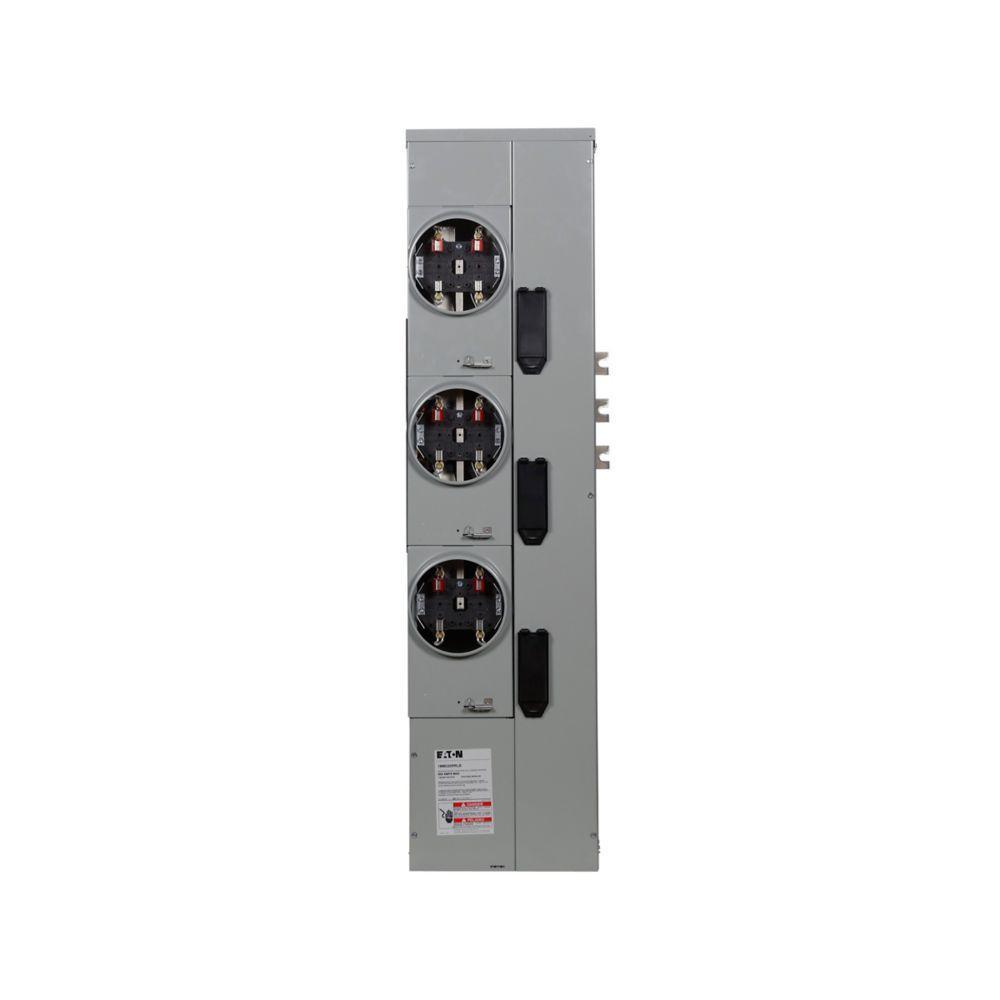

1MM320RRLB CH 200A 1PH MTR MODULE

Mouse over image to zoom, click to enlarge

  • 1MM320RRLB CH 200A 1PH MTR MODULE
  • 1MM320RRLB CH 200A 1PH MTR MODULE
  • 1MM320RRLB CH 200A 1PH MTR MODULE
  • 1MM320RRLB CH 200A 1PH MTR MODULE
  • 1MM320RRLB CH 200A 1PH MTR MODULE

Description: EATON Meter Stack Module, 3-Socket Multiple Metering, 120/240 V AC, 200 A, 1 ph, 100 kA Short Circuit, Bus Bar Connection, Galvanized Steel, Bolted-On Mounting, NEMA 3R Enclosure, 7.01 in L x 13.5 in W x 52.35 in H Dimensions

Manufacturer PN: 1MM320RRLB

UPC:  78684905227

Kendall Electric Inc PN: 2021203

Invoice Description:

1MM320RRLB CH 200A 1PH MTR MODULE


SPEC SHEET

▸ See All in Meter Stack Modules


How Can We Make This Page Better?

EATON 1MM320RRLB 3-Socket Multiple Metering Meter Stack Module, 120/240 V AC, 200 A, 1 Phase , NEMA 3R Enclosure

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Residential Meter Stacks provide users with safe, easy installation and maintenance. The meter stack enclosure is made of galvanized steel, which prevents rust and provides long-term durability. This is perfect for residential metering in apartment complexes, duplexes, triplexes, and the like because the modular element allows for as many sockets as needed to fit the particular application. Additionally, the meter socket base is installed without any fasteners to reduce the chance for hot spots. And these meter stacks have separate covers that provide easy access to tenant breaker wireway sections, which means you can work without disturbing meters or meter covers.
EATON Meter Stack Module, 3-Socket Multiple Metering, 120/240 V AC, 200 A, 1 ph, 100 kA Short Circuit, Bus Bar Connection, Galvanized Steel, Bolted-On Mounting, NEMA 3R Enclosure, 7.01 in L x 13.5 in W x 52.35 in H Dimensions

Specifications

 Amperage Rating 200 A
 Application Residential, Power Distribution, Outdoor, Electrical Assemblies, Panels and EOEMs Applications
 Brand Name EATON
 Connection Type Bus Bar
 Dimensions 7.01 in L x 13.5 in W x 52.35 in H
 Enclosure NEMA 3R
 Manufacturer Part Number 1MM320RRLB
 Material Galvanized Steel
 Mounting Type Bolted-On
 PART NUMBER KEYWORDS 1MM320RRLB ; 7459669 ; 786849052270 ; 78684905227 ; 00786849052270
 Phase 1
 Short Circuit Current Rating 100 kA
 Standards/Approvals UL Listed
 Type 3-Socket Multiple Metering
 Voltage Rating 120/240 V AC

Features

▪ Standard 800 A aluminum bus
▪ Meter socket and tenant main breaker or wireway sections are separated by a solid metal barrier to guard unmetered bus against power theft
▪ A convenient termination for neutral conductors is in the wireway of each module
▪ Enclosures are made of galvanized steel construction and include rust inhibiting phosphate primer and gray baked enamel for long term durability
▪ Meter socket base is installed without any fasteners, reducing chances for hot spots
▪ Separate covers allow easy access to tenant breaker and wireway section, permit work on breakers or in wireway without disturbing meters or meter covers
▪ For use with CCV2_X, CCVH2_X, CVS2_XMM, CV2_XMM and CVH2_XMM bolt-on type main tenant breaker
▪ Interrupt rating depends on selected main circuit breaker
▪ Short circuit ratings up to 100 A RMS symmetrical depending upon the kAIC rating of installed main tenant circuit breakers and main device
▪ Mechanically and electrically built to bolt up with main service modules and residential modular metering stacks

Resources

 Catalog Page
 Product Data Sheet
