Eaton

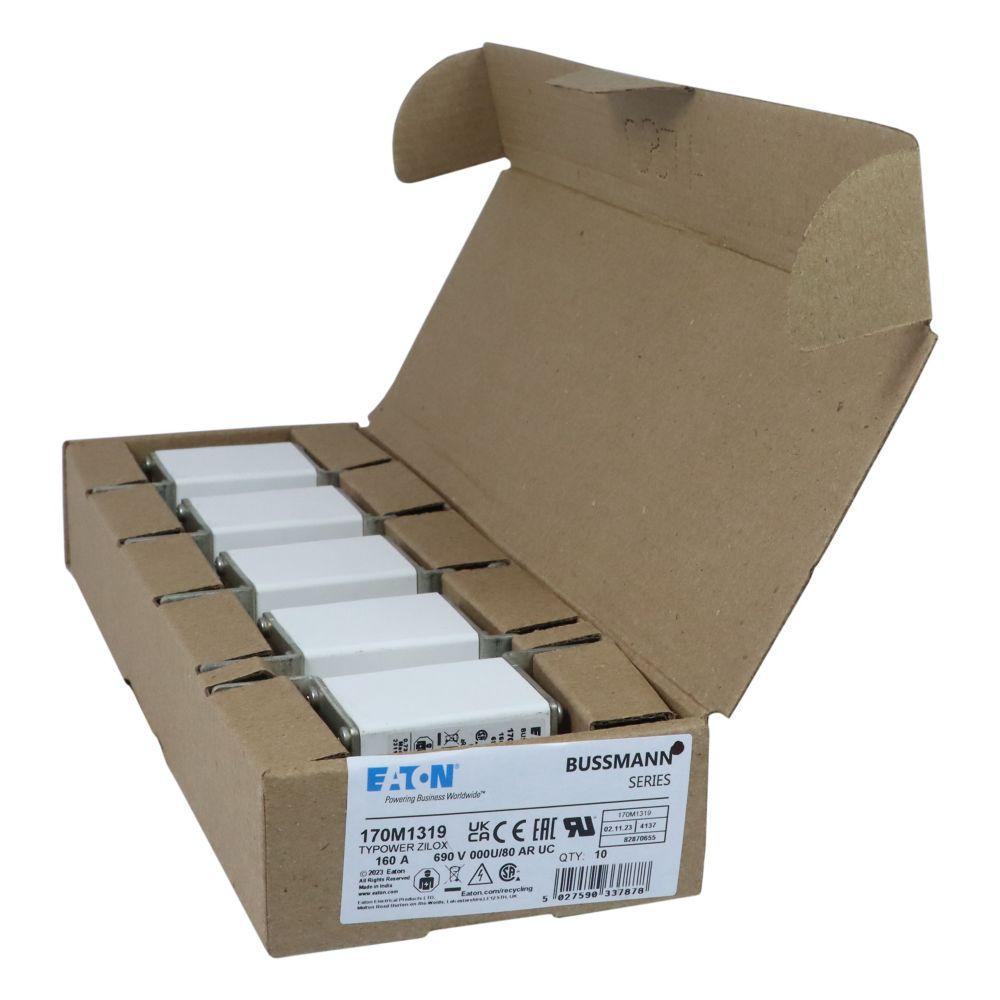

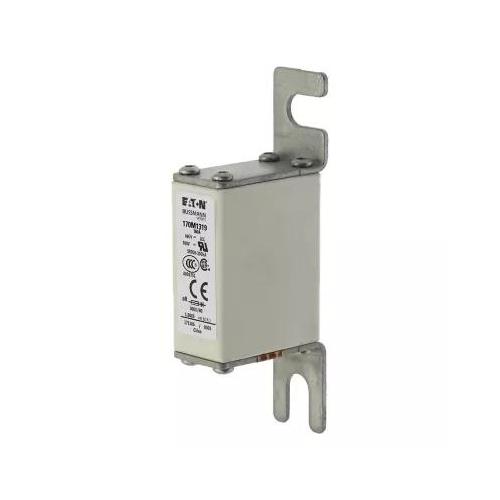

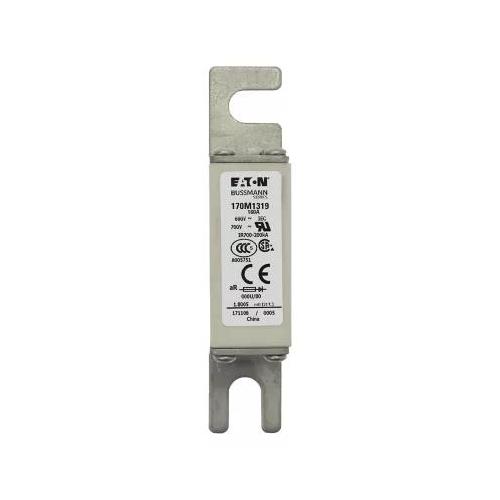

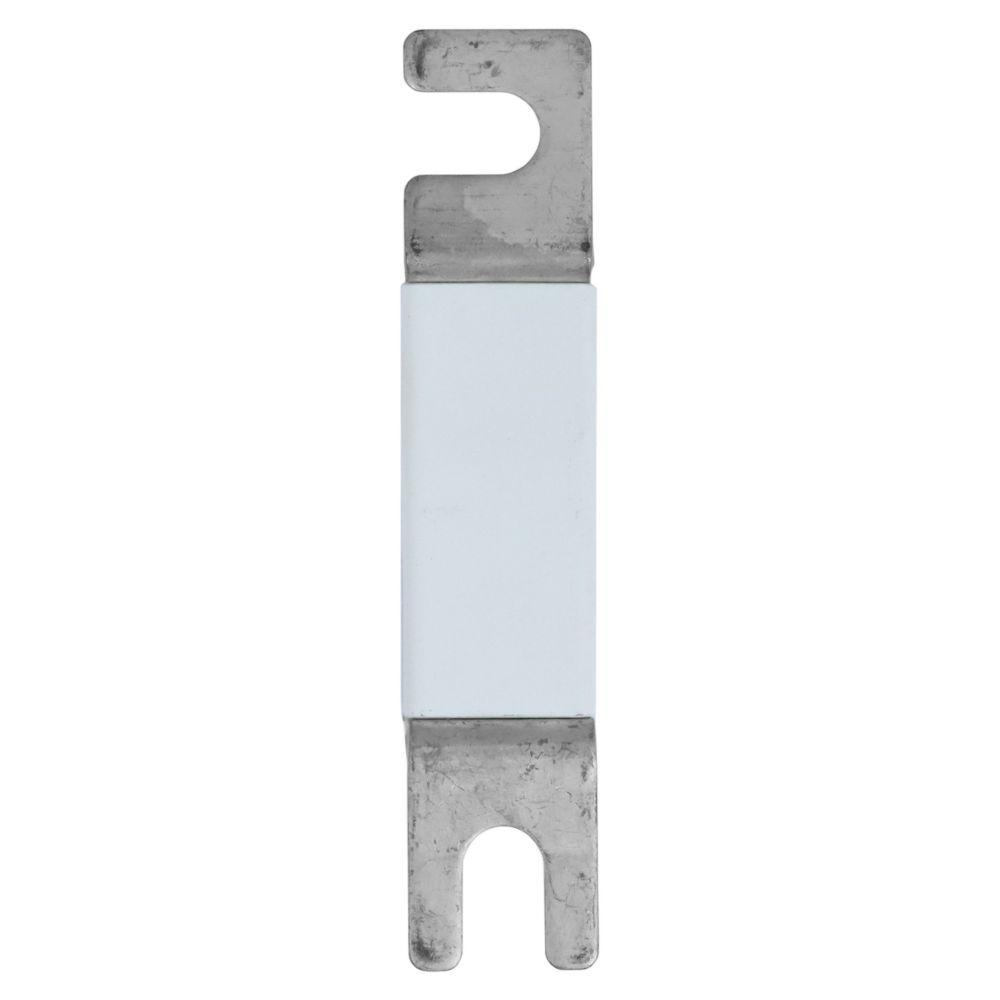

170M1319 BUS EUROPEAN SQ BODY FUSE 160A

Mouse over image to zoom, click to enlarge

  • 170M1319 BUS EUROPEAN SQ BODY FUSE 160A
  • 170M1319 BUS EUROPEAN SQ BODY FUSE 160A
  • 170M1319 BUS EUROPEAN SQ BODY FUSE 160A
  • 170M1319 BUS EUROPEAN SQ BODY FUSE 160A
  • 170M1319 BUS EUROPEAN SQ BODY FUSE 160A

Description: Bussmann High Speed Fuse, Type U/80, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 160 A, 690 V AC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Blade End Terminal, DIN 43-653 Stud Mount, Square Body, Ceramic, 100 mm L x 21 mm W x 40 mm H Body Size

Manufacturer PN: 170M1319

UPC:  05171221655

Kendall Electric Inc PN: 2377571

Invoice Description:

170M1319 BUS EUROPEAN SQ BODY FUSE 160A


SPEC SHEET

▸ See All in High Speed Fuses


How Can We Make This Page Better?

Bussmann 170M1319 Type U/80 High Speed Fuse, 160 A, 690 V AC, 200 kA Interrupt, Class: aR, Square Body

Log In for Pricing and Availability




Description

Bussmann High Speed Fuse, Type U/80, Series: 170M, Indicating/Non-Indicating: Non-Indicating, 160 A, 690 V AC, 200 kA Interrupt, Class: aR, 45 to 1000 Hz, Blade End Terminal, DIN 43-653 Stud Mount, Square Body, Ceramic, 100 mm L x 21 mm W x 40 mm H Body Size

Specifications

 Amperage Rating 160 A
 Application Electrical Assemblies, Panels, EOEMs, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems, Industrial Facilities and Factories - Facility and Critical Power
 Body Size 100 mm L x 21 mm W x 40 mm H
 Body Type Square
 Brand Name Bussmann
 Class aR
 Frequency Rating 45 to 1000 Hz
 Indicating Non Indicating Non-Indicating
 Manufacturer Part Number 170M1319
 Material Ceramic
 Mounting Type DIN 43-653 Stud
 Series 170M
 Standards/Approvals UL Recognized ,IEC Rated ,UL Recognized ,IEC-Einstufung ,UL Recognized ,Classificazione IEC ,UL Recognized ,IEC nominaal ,Zgodność z IEC ,UL Recognized ,UL Recognized ,Parametry dle IEC,CE Marked,RoHS Compliant,RoHS-konform,CE-Kennzeichnung,Conforme a RoHS,Con marchio CE,RoHS-compliant,CE-markering,Zgodny z wymogami RoHS,Uzyskano oznaczenie CE,Opatřeno značkou CE,Splňuje požadavky RoHS
 Terminal Type Blade End
 Type Type U/80
 Video Links
 Voltage Rating 690 V AC

Features

▪ Excellent DC performance
▪ Low arc voltage and low energy let-through
▪ Low wattage loss
▪ Superior cycling capability

Resources

 Catalog Page
 Product Data Sheet
