Eaton

Mouse over image to zoom, click to enlarge

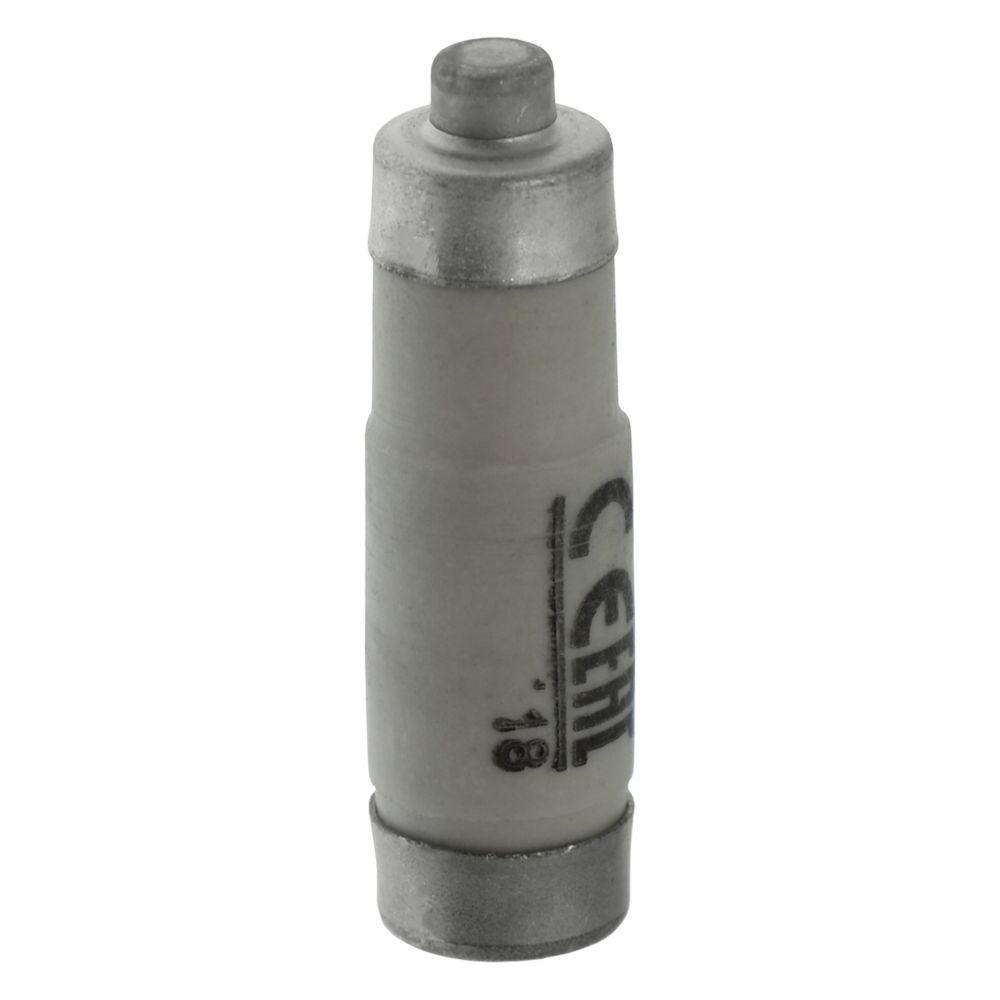

Description: Bussmann Fuse, Type D0 Time Delay, Series: NZ Series, Indicating/Non-Indicating: Non-Indicating, 16 A, 400 V AC, 100 kA Interrupt, Class: GL/GG/C, Holder Mount, Cartridge Body, Ceramic, Gray, 11 mm Dia x 36 mm L Body Size

Manufacturer PN: 16NZ01

UPC: 05171283180

Kendall Electric Inc PN: 23436

Invoice Description:

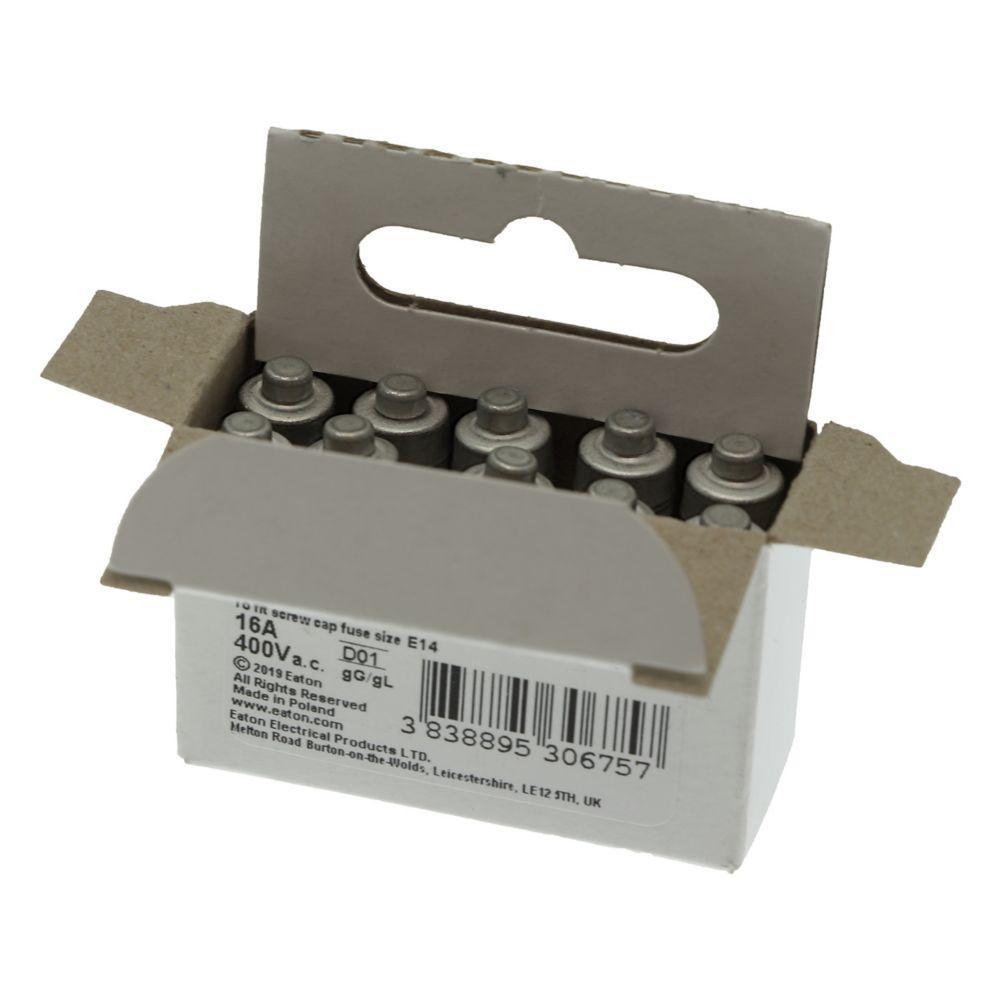

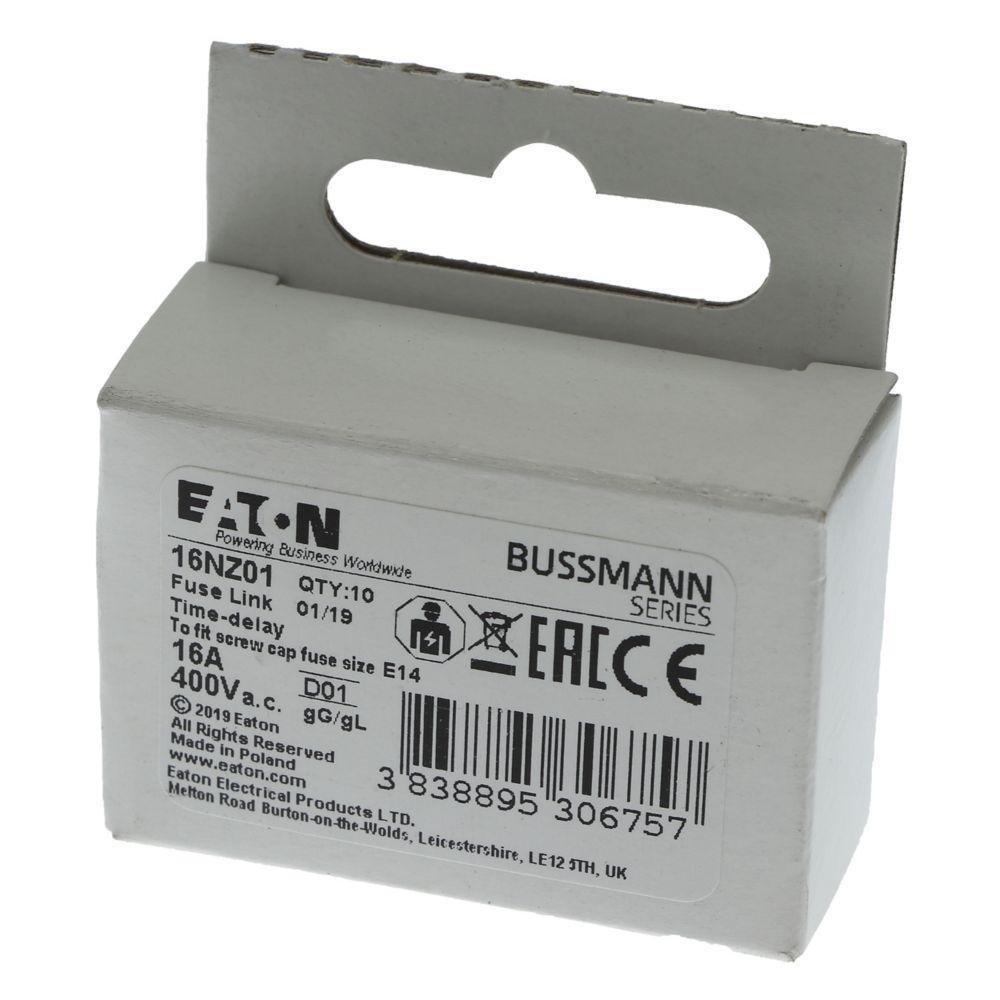

16NZ01 BUS 440V NEOZED FUSE LINKS (10)

SPEC SHEET

▸ See All in Fuse Links

How Can We Make This Page Better?

Bussmann 16NZ01 NZ Series Type D0 Time Delay Fuse, 16 A, 400 V AC, 100 kA Interrupt, Class: GL/GG/C, Cartridge Body

Description Specifications Resources

Description

Eaton's Bussmann series low voltage D and D0 bottle fuses are specifically designed for the protection of general industrial applications such as power distribution and cable protection. Both D and D0 fuse types are available in three operating characteristics: time delay, fast acting and ultra rapid versions that can fit into screw cap fuse carriers for mounting on 1 or 3 pole DIN-Rail or panel mount.

Bussmann Fuse, Type D0 Time Delay, Series: NZ Series, Indicating/Non-Indicating: Non-Indicating, 16 A, 400 V AC, 100 kA Interrupt, Class: GL/GG/C, Holder Mount, Cartridge Body, Ceramic, Gray, 11 mm Dia x 36 mm L Body Size

Specifications

Amperage Rating	16 A
Application	Power Distribution and Control, Electrical Assemblies, Panels and EOEM - Control Panels for Machines, Panel Builders, Aftermarket, Stationary Machine Equipment In Factory - Robotics, Industrial Applications
Body Size	11 mm Dia x 36 mm L
Body Type	Cartridge
Brand Name	Bussmann
Class	GL/GG/C
Color	Gray
Indicating Non Indicating	Non-Indicating
Manufacturer Part Number	16NZ01
Material	Ceramic
Mounting Type	Holder
PART NUMBER KEYWORDS	16NZ01 ; 7649582 ; 051712831802 ; 51712831802 ; 05171283180 ; 00051712831802 ; 5027590437820
Series	NZ Series
Standards/Approvals	CE Certified\|DIN 49515\|GoST-R Certified\|IEC 60269\|VDE Certified
Type	Type D0 Time Delay
Video Links
Voltage Rating	400 V AC
