Description: Bussmann NH Fuse Link, Size 000 Dual Indicator Low Voltage, Series: NH Series, 690 V AC, 16 A, 45 to 62 Hz, Rated Breaking Capacity: 120 kAIC, Holder Mount, For Use With: NH Series Class C/gG/gL Fuse, Ceramic, 78.5 mm L

Manufacturer PN: 16NHG000B-690

UPC:  05171218839

Kendall Electric Inc PN: 2853920

Invoice Description:

16NHG000B-690 BUSS NH FUSE 16AMP 690V gG SIZE 000 05171218839


SPEC SHEET

▸ See All in UL Class Fuse Links


How Can We Make This Page Better?

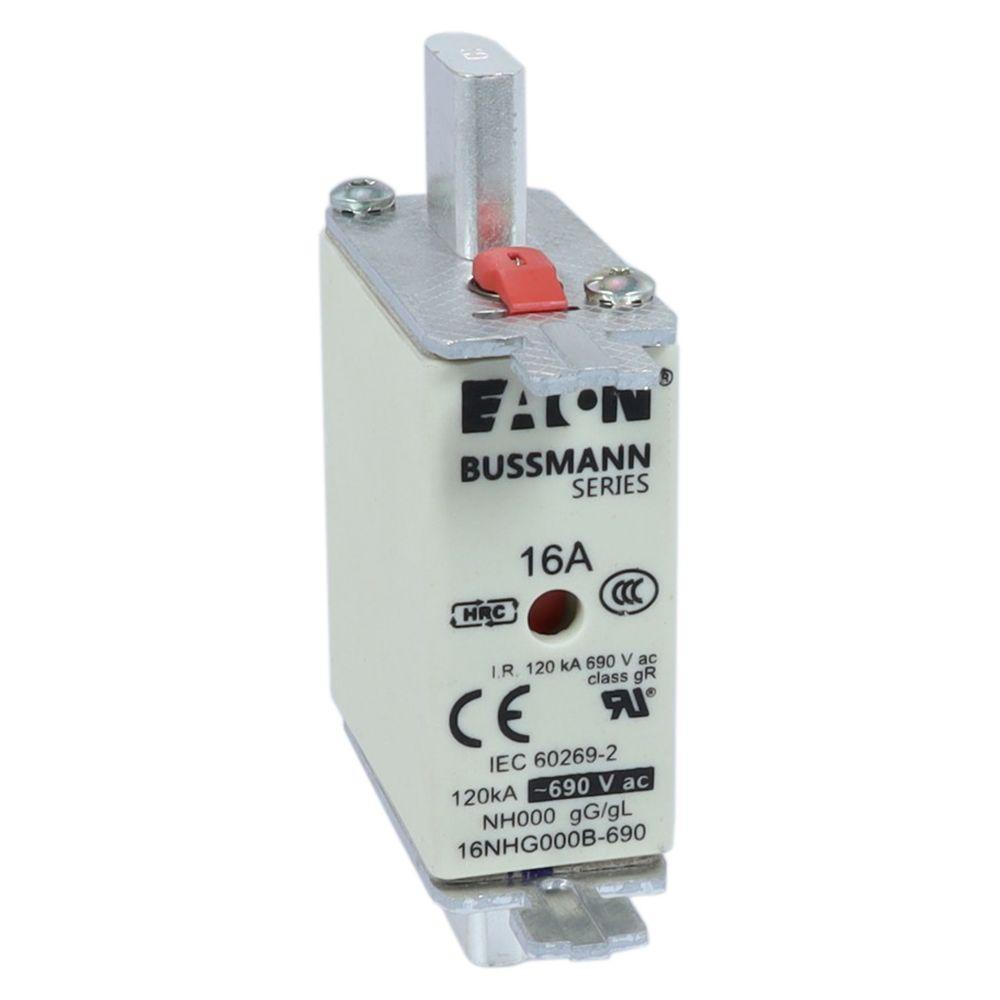

Bussmann 16NHG000B-690 Size 000 Dual Indicator Low Voltage NH Fuse Link, 690 V AC, 16 A, For Use With NH Series Class C/gG/gL Fuse, Ceramic

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.
Bussmann NH Fuse Link, Size 000 Dual Indicator Low Voltage, Series: NH Series, 690 V AC, 16 A, 45 to 62 Hz, Rated Breaking Capacity: 120 kAIC, Holder Mount, For Use With: NH Series Class C/gG/gL Fuse, Ceramic, 78.5 mm L

Specifications

 Amperage Rating 16 A
 Application Electrical Assemblies, Panels, EOEMs, Control Panels for Machines, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems
 Brand Name Bussmann
 Dimensions 78.5 mm L
 Frequency Rating 45 to 62 Hz
 Manufacturer Part Number 16NHG000B-690
 Material Ceramic
 Mounting Type Holder
 PART NUMBER KEYWORDS 16NHG000B-690; 16NHG000B690 ; 10771161 ; 051712188395 ; 51712188395 ; 05171218839 ; 5027590437714 ; 00051712188395
 Rated Breaking Capacity 120 kAIC
 Series NH Series
 Standards/Approvals IEC 60269-2 ,IEC 60269-1 ,DIN 43620 ,DIN 43620 ,IEC 60269-2 ,IEC 60269-1 ,IEC 60269-1 ,IEC 60269-2 ,DIN 43620 ,DIN 43620 ,IEC 60269-1 ,IEC 60269-2 ,IEC 60269-2 ,DIN 43620 ,IEC 60269-1,CE Marked,RoHS Compliant,RoHS-konform,CE-Kennzeichnung,Conformité RoHS,Marquage CE,RoHS-compliant,CE-markering,Conforme a RoHS,Con marchio CE
 Suitable For Use With NH Series Class C/gG/gL Fuse
 Type Size 000 Dual Indicator Low Voltage
 Video Links
 Voltage Rating 690 V AC

Features

▪ Size 000
