Description: Elastimold® Elbow Surge Arrester, Insulated Shielded, Series: 167ESA, 15 kV Operating, 3 kV Duty Cycle, 14.5 kV Maximum Discharge, 2.55 kV RMS MCOV Surge Protection, 200 A, EPDM Rubber

Manufacturer PN: 167ESA-3

UPC:  78378665216

Kendall Electric Inc PN: 3879640

Invoice Description:

167ESA-3 T-B ELBOW ARRESTER 3KV


SPEC SHEET

▸ See All in Deadbreak Elbows


How Can We Make This Page Better?

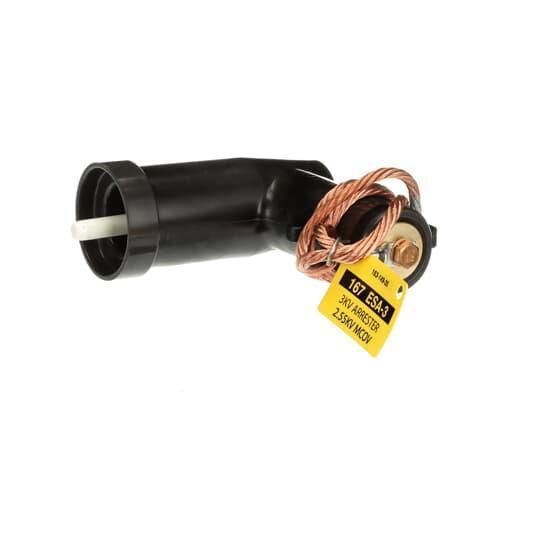

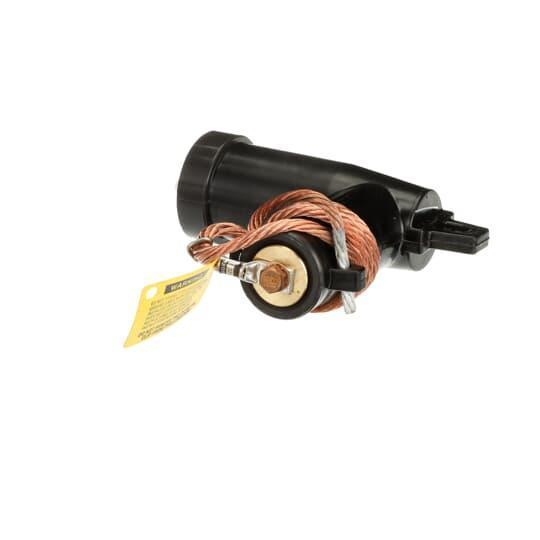

Elastimold® 167ESA-3 Insulated Shielded Elbow Surge Arrester, 14.5 kV Maximum Discharge, EPDM Rubber, 2.55 kV RMS MCOV Surge, 200 A

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Elastimold® Metal Oxide Varistor (MOV) surge arresters are fully shielded, fully submersible and are equipped with IEEE 386 interfaces for convenient energized connection with other 200 A loadbreak components. Units are compact, allowing installation in existing cabinetry. For application ease, arresters are available in 3 styles, elbow (ESA), parking Stand (PSA) and bushing (BSA). The PSA and BSA arresters permit direct connection eliminating the need for additional accessories. Elastimold® arresters provide high voltage lightning and switching surge protection of transformers, cable, equipment and other components typically located on underground power distribution systems. Proper placement, voltage selection and coordination with riser pole arresters minimizes damaging surge voltages by improving protective margins.
Elastimold® Elbow Surge Arrester, Insulated Shielded, Series: 167ESA, 15 kV Operating, 3 kV Duty Cycle, 14.5 kV Maximum Discharge, 2.55 kV RMS MCOV Surge Protection, 200 A, EPDM Rubber

Specifications

 Amperage Rating 200 A
 Application For providing high voltage lightning and switching surge protection of transformers, cable, equipment and other components typically located on underground power distribution systems
 Brand Name Elastimold®
 Duty Cycle Voltage 3 kV
 Manufacturer Part Number 167ESA-3
 Material EPDM Rubber
 Maximum Discharge Voltage 14.5 kV
 Operating Voltage 15 kV
 PART NUMBER KEYWORDS 167ESA-3 ; 167ESA3 ; 7TAA124600R0012 ; 13522513 ; 783786652167 ; 78378665216 ; 00783786652167
 Series 167ESA
 Surge Protection Voltage 2.55 kV RMS MCOV
 Type Insulated Shielded

Features

▪ EPDM rubber construction - fully shielded and fully submersible for a variety of applications
▪ Compact size enables installation in your existing cabinetry, saving you money
▪ 4 AWG ground lead tethered to the jacket withstands 10000 A for 10 cycles without fusing
▪ Ground lead also controls end plug when ejected, preventing uncontrolled trajectory and maintains the housing shield ground connection after failure
▪ 10.5 kV at 1.5 kA/11 kV at 3 kA/11.5 kV at 5 kA/13 kV at 10 kA/14.5 kV at 20 kA maximum discharge voltage
▪ IEEE 386 interfaces provide convenient energized connection with other 200 A loadbreak or deadbreak components
