Eaton

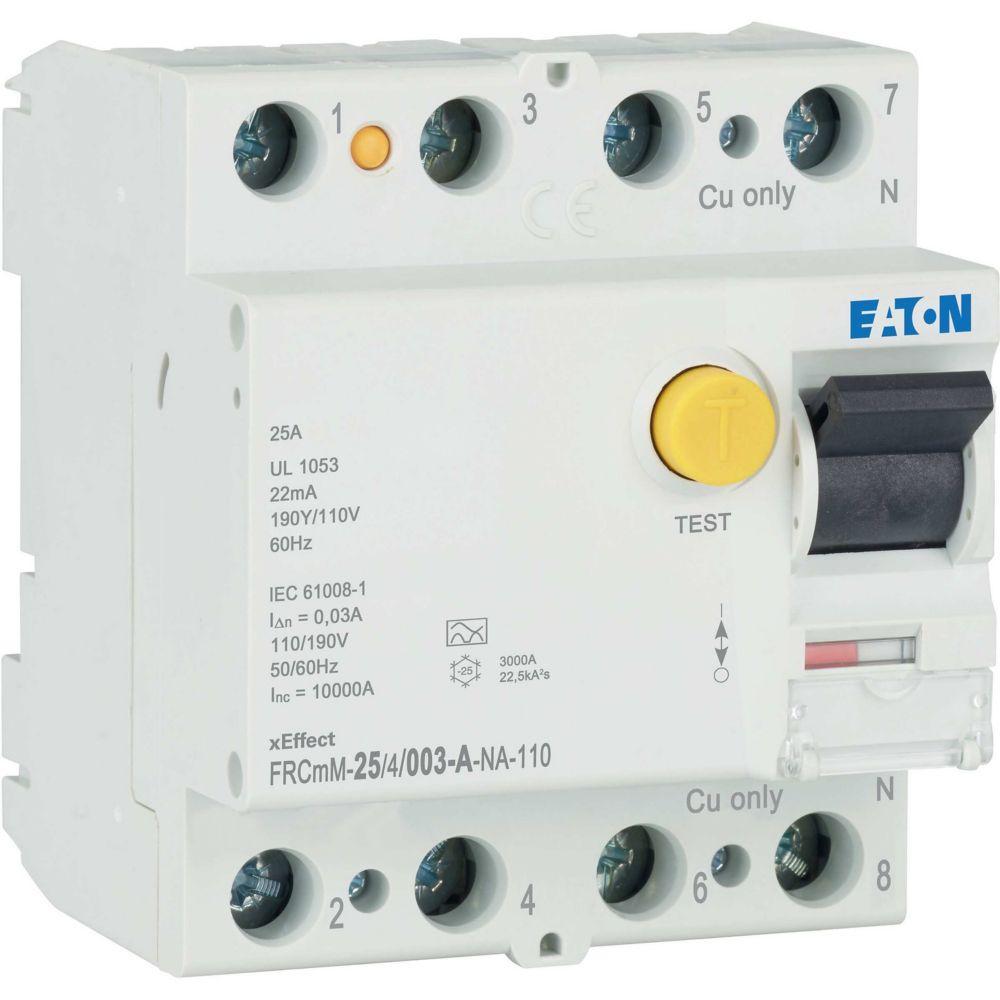

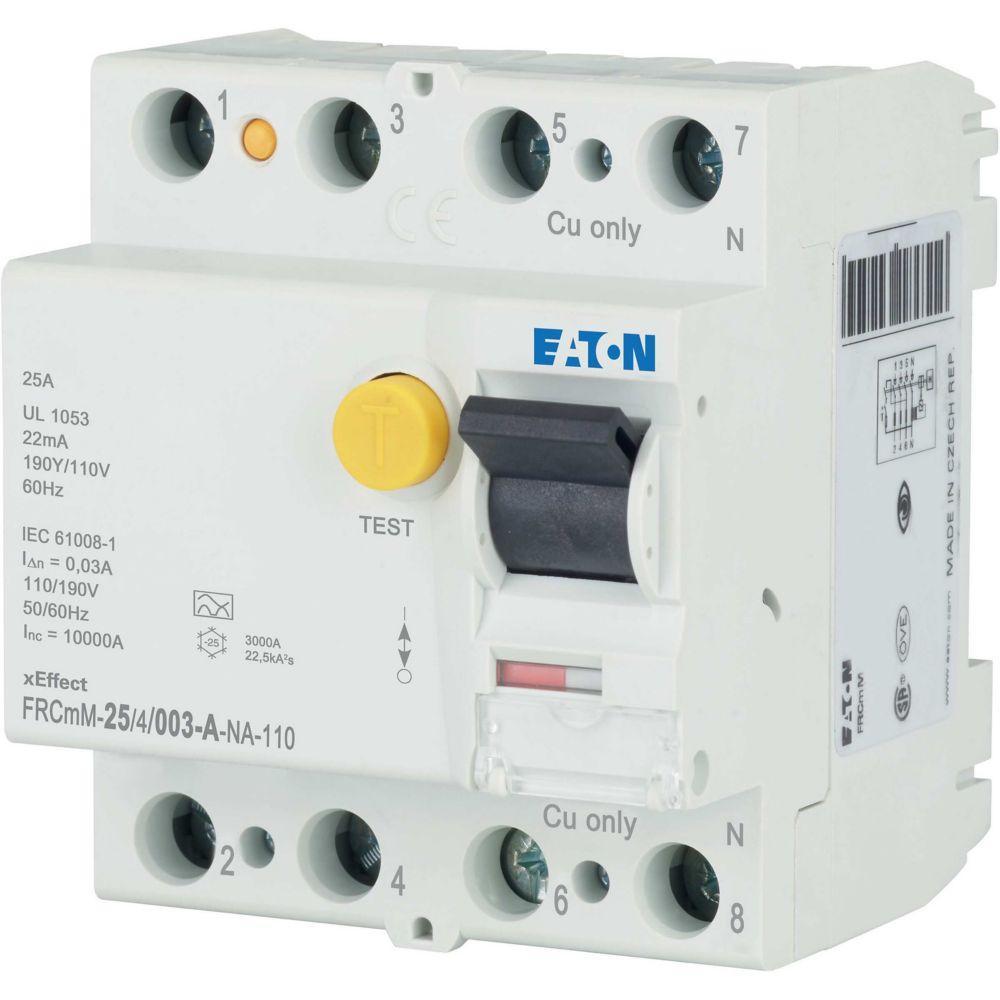

167699 CH FRCMM-25/4/003-A-NA-110 4P 25A 30 MA RCCB

Mouse over image to zoom, click to enlarge

  • 167699 CH FRCMM-25/4/003-A-NA-110 4P 25A 30 MA RCCB
  • 167699 CH FRCMM-25/4/003-A-NA-110 4P 25A 30 MA RCCB
  • 167699 CH FRCMM-25/4/003-A-NA-110 4P 25A 30 MA RCCB
  • 167699 CH FRCMM-25/4/003-A-NA-110 4P 25A 30 MA RCCB

Description: EATON Residual Current Circuit Breaker, Type A, 110 V AC, 25 A, 50/60 Hz Frequency, 10 kA Interrupt, 4 Pole, Lift Terminal Connection, IP40/IP54 Enclosure, DIN Rail Mounting, -25 to 60 deg C, 3 in L x 3-1/2 in W x 3 in H Dimensions

Manufacturer PN: 167699

UPC:  01508164241

Kendall Electric Inc PN: 4197588

Invoice Description:

167699 CH FRCMM-25/4/003-A-NA-110 4P 25A 30 MA RCCB


SPEC SHEET

▸ See All in Residual Current Circuit Breakers


How Can We Make This Page Better?

EATON 167699 Type A Residual Current Circuit Breaker, 110 V AC, 25 A, 10 kA Interrupt, 4 Poles

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

This Residual Current Circuit Breaker is part of Eaton's xEffect industrial range and fulfills the highest requirement of extended air and creeping distances according UL 1053 standard. This protection device completes Eaton's Residual Current Circuit Breaker product range and is particularly suitable for the protection of people and equipment in industrial applications.
EATON Residual Current Circuit Breaker, Type A, 110 V AC, 25 A, 50/60 Hz Frequency, 10 kA Interrupt, 4 Pole, Lift Terminal Connection, IP40/IP54 Enclosure, DIN Rail Mounting, -25 to 60 deg C, 3 in L x 3-1/2 in W x 3 in H Dimensions

Specifications

 Amperage Rating 25 A
 Application Motor Control Circuits, HVAC Internal, External Equipment, PLCs, HMIs and Equipment Protection Applications
 Brand Name EATON
 Connection Type Lift Terminal
 Dimensions 3 in L x 3-1/2 in W x 3 in H
 Enclosure IP40/IP54
 Frequency Rating 50/60 Hz
 Includes FRCmM-25/4/003-A-NA-110
 Manufacturer Part Number 167699
 Mounting Type DIN Rail
 Number of Poles 4
 Standards/Approvals IEC 61373,ÖVE E 8601,IEC/EN 61008,UL 1053,IEC/EN 61008,EN45545-2,IEC 61373,ÖVE E 8601,IEC/EN 61008,IEC/EN 61008,ÖVE E 8601,UL 1053,IEC 61373,EN45545-2,EN45545-2,IEC 61373,UL 1053,EN45545-2,UL 1053,ÖVE E 8601,RoHS conform,RoHS conform,RoHS conform,RoHS conform
 Temperature Rating -25 to 60 deg C
 Type Type A
 Voltage Rating 110 V AC

Features

▪ Comprehensive range of accessories
▪ Real contact position indicator
▪ Indication of leakage current tripping
▪ Automatic resetting possible
▪ Transparent inscription label
