ABB

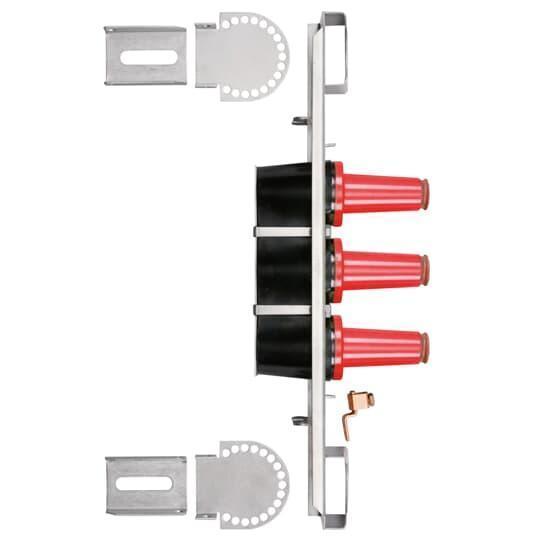

164J3 ELASTIMOLD 3 POINT JUNCTION

Mouse over image to zoom, click to enlarge

  • 164J3 ELASTIMOLD 3 POINT JUNCTION
  • 164J3 ELASTIMOLD 3 POINT JUNCTION
  • 164J3 ELASTIMOLD 3 POINT JUNCTION
  • 164J3 ELASTIMOLD 3 POINT JUNCTION

Description: Elastimold® Loadbreak Junction, 3-Point, 15 kV, 200 A, Panel Mount, For Use With: 15 kV Class Distribution System, 90 deg C, EPDM Rubber, 20.62 in L x 8.1 in D

Manufacturer PN: 164J3

UPC:  78378662521

Kendall Electric Inc PN: 4365925

Invoice Description:

164J3 ELASTIMOLD 3 POINT JUNCTION


SPEC SHEET

▸ See All in Loadbreak Junctions


How Can We Make This Page Better?

Elastimold® 164J3 3-Point Loadbreak Junction With Stainless Steel Bracket, 15 kV, 200 A, Panel Mount, EPDM Rubber

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

200 A load break connectors and accessories provide a convenient method to connect/disconnect cable and equipment on power distribution systems. Load break elbows include provisions for energized operation using standard hotstick tools, allowing load make/break operation and a visible disconnect. Components can be isolated with insulated caps, plugs and parking bushings. Optional accessories allow system grounding, testing, bypass lightning surge protection and current limiting fusing. Additional connecting points and taps can be provided by use of junctions or feed-thrus.
Elastimold® Loadbreak Junction, 3-Point, 15 kV, 200 A, Panel Mount, For Use With: 15 kV Class Distribution System, 90 deg C, EPDM Rubber, 20.62 in L x 8.1 in D

Specifications

 Amperage Rating 200 A
 Application For subsurface, vault/pad mount, sectionalizing, looping, tapping and equipment bypass
 Brand Name Elastimold®
 Dimensions 20.62 in L x 8.1 in D
 Includes Hardware
 Manufacturer Part Number 164J3
 Material EPDM Rubber
 Mounting Type Panel
 PART NUMBER KEYWORDS 164J3 ; 7TAA121120R0017 ; 13545852 ; 783786625215 ; 78378662521 ; 00783786625215
 Specifications 90 deg C
 Suitable For Use With 15 kV Class Distribution System
 Type 3-Point
 Voltage Rating 15 kV

Features

▪ Fully shielded, fully submersible molded rubber housing
▪ Provides mating for other Elastimold® load break type products, elbow connectors
▪ 100% peroxide cured construction includes insulation and conductive EPDM materials
▪ Mounting U-straps for installation
