Leviton

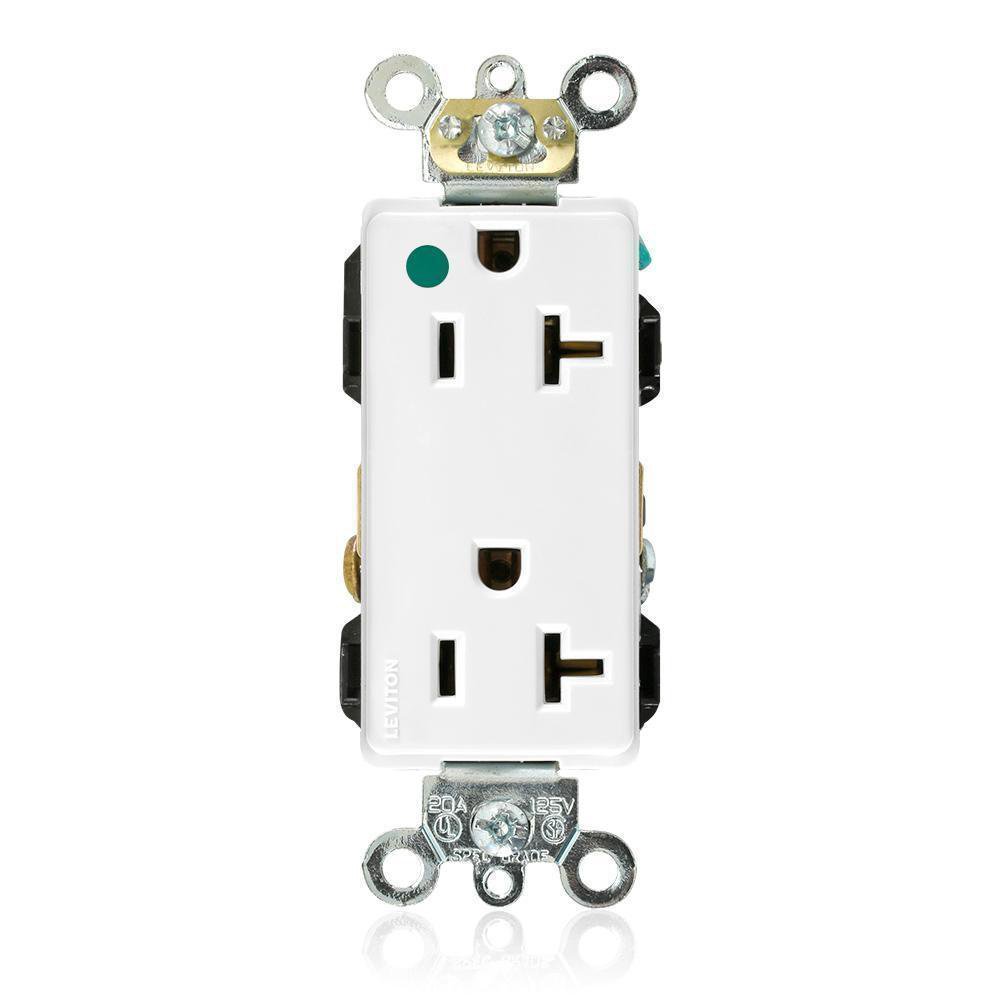

16362-HGW LEVITON DECORA HG RECEPT 07847781877

Mouse over image to zoom, click to enlarge

Description: Leviton®, 16362-HGW, Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Self-Grounding, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, White, 46 in H x 1.52 in W x 1.14 in D Dimensions

Manufacturer PN: 16362-HGW

UPC:  07847781877

Kendall Electric Inc PN: 2701745

Invoice Description:

16362-HGW LEVITON DECORA HG RECEPT 07847781877


SPEC SHEET

How Can We Make This Page Better?

Leviton® 16362-HGW 1-Phase Duplex Extra Heavy Duty Self-Grounding Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White

Log In for Pricing and Availability




Description

All Leviton® hospital grade receptacles undergo the most stringent UL testing to assure continuous, safe operation in any application requiring high abuse tolerance, including health care facilities, manufacturing plants and schools.
Leviton®, 16362-HGW, Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty Self-Grounding, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, White, 46 in H x 1.52 in W x 1.14 in D Dimensions

Specifications

 Amperage Rating 20 A
 Brand Name Leviton®
 Color White
 Dimensions 46 in H x 1.52 in W x 1.14 in D
 Grade Commercial
 Horsepower 1 hp
 Manufacturer Part Number 16362-HGW
 Material Nylon
 NEMA Rating NEMA 5-20R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS 16362-HGW ; 16362HGW ; 7335491 ; 7508910 ; 16362HGW ; 078477818770 ; 78477818770 ; 07847781877 ; 00078477818770
 Standards/Approvals NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL 498HG File No. E13399|UL94 V-2 Flammability Rating
 Temperature Rating -40 to 60 deg C
 Terminal Type Back/Side Wire
 Type 1-Phase Duplex Extra Heavy Duty Self-Grounding
 Video Links
 Voltage Rating 125 V AC

Features

▪ Steel strap
▪ 14 to 10 AWG wire terminal
▪ Durable thermoplastic face in an array of contemporary colors
▪ Receptacles have a locked-in mounting strap with a self-grounding clip riveted to the strap
▪ Hospital grade tamper resistant receptacles include a unique shutter mechanism that opens easily for the insertion of 2 or 3-prong plugs while preventing entry by other small objects into either outlet slot
▪ Hospital grade isolated ground receptacles protect sensitive electronic equipment and eliminate electromagnetic interference by providing a separate path to ground
▪ Power Indication™ meets UL 498 hospital grade identification requirements
▪ Wallbox mounting
▪ Self-grounding
▪ 1-phase
▪ 2000 VAC minimum dielectric strength
