Leviton

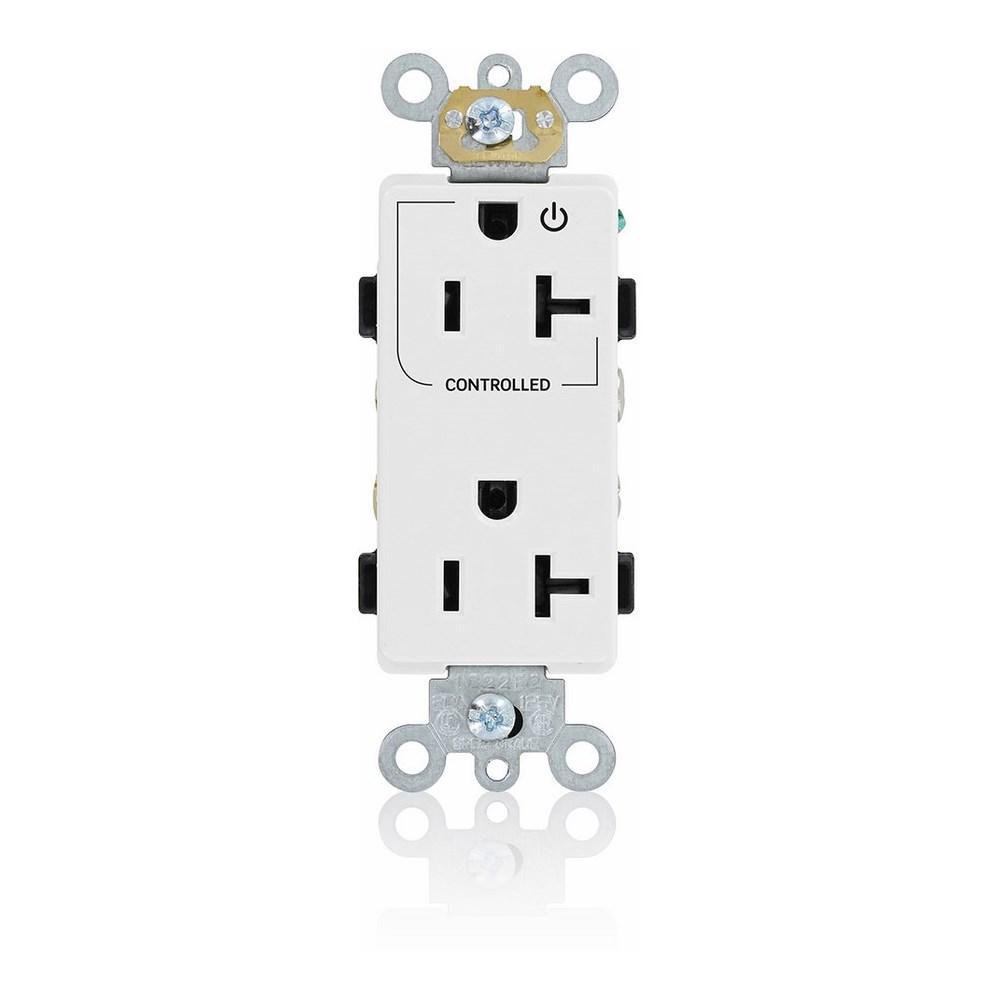

16352-1PW LEVITON 1 CONTROLLED DEC REC 20A - WHITE

Mouse over image to zoom, click to enlarge

Description: Decora® Straight Blade Receptacle, Duplex Self-Grounding, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 75 deg C, Back/Side Wire Terminal, Nylon, White, 4.06 in H x 1.52 in W x 1.14 in D Dimensions

Manufacturer PN: 16352-1PW

UPC:  07847770485

Kendall Electric Inc PN: 4142867

Invoice Description:

16352-1PW LEVITON 1 CONTROLLED DEC REC 20A - WHITE


SPEC SHEET

▸ See All in Straight Blade Receptacles


How Can We Make This Page Better?

Decora® 16352-1PW Duplex Self-Grounding Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White

Log In for Pricing and Availability




Description

Leviton® offers custom imprinting solutions to meet the 2014 National electrical code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All 15A & 20A, 125V receptacles that are automatically controlled will be marked with a specific symbol.
Decora® Straight Blade Receptacle, Duplex Self-Grounding, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 75 deg C, Back/Side Wire Terminal, Nylon, White, 4.06 in H x 1.52 in W x 1.14 in D Dimensions

Specifications

 Amperage Rating 20 A
 Application Commercial Applications
 Brand Name Leviton®
 Color White
 Dimensions 4.06 in H x 1.52 in W x 1.14 in D
 Grade Commercial
 Horsepower 1 hp
 Manufacturer Part Number 16352-1PW
 Material Nylon
 NEMA Rating NEMA 5-20R
 Number of Poles 2
 Number of Wires 3
 PART NUMBER KEYWORDS 16352-1PW ; 163521PW
 Standards/Approvals ANSI C73|CSA C22.2 No. 42|NOM-ANCE Certified|NEC Certified|UL 498
 Temperature Rating -40 to 75 deg C
 Terminal Type Back/Side Wire
 Type Duplex Self-Grounding
 Voltage Rating 125 V AC
