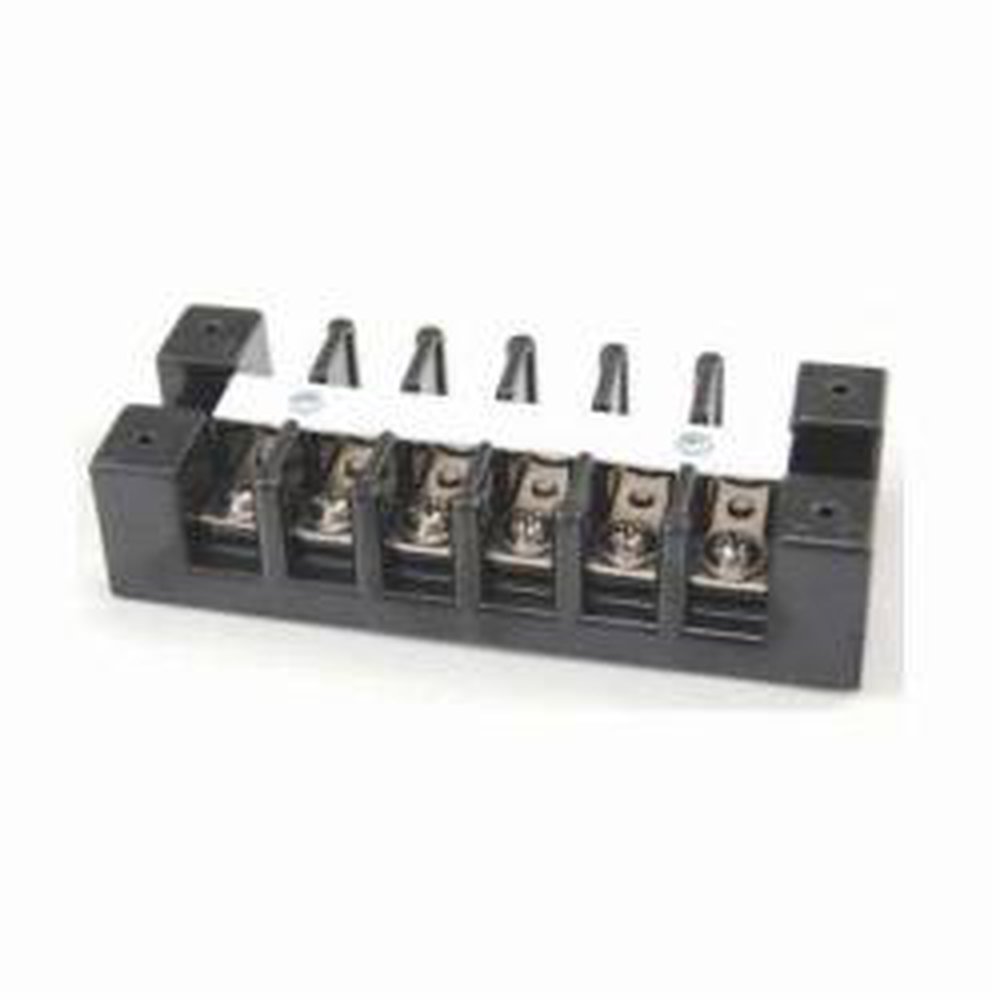

1604STD MARATHON 4CKT 75A600V TERM BLK 78433761604

Mouse over image to zoom, click to enlarge

Description: Marathon® Barrier Terminal Block, Heavy Duty, Series: 1600, 600 VAC/VDC, 75 A, 10 to 16 AWG Wire, 21/32 in Center Spacing, #10-32 Screw, 20 in-lb Torque, Surface Mounting, Screw Connection, 150 deg C, Phenolic, 3.75 in L x 2 in W x 1.19 in D Dimensions

Manufacturer PN: 1604STD

UPC:  78433761604

Kendall Electric Inc PN: 2610563

Invoice Description:

1604STD MARATHON 4CKT 75A600V TERM BLK 78433761604

▸ See All in Terminal Block Strips & Barrier Blocks


How Can We Make This Page Better?

Marathon® 1604std Heavy Duty Barrier Terminal Block, 600 VAC/VDC, 75 A, 10 to 16 AWG Wire

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Marathon® Barrier Terminal Block, Heavy Duty, Series: 1600, 600 VAC/VDC, 75 A, 10 to 16 AWG Wire, 21/32 in Center Spacing, #10-32 Screw, 20 in-lb Torque, Surface Mounting, Screw Connection, 150 deg C, Phenolic, 3.75 in L x 2 in W x 1.19 in D Dimensions

Specifications

 Amperage Rating 75 A
 Application For General Industrial Use
 Brand Name Marathon®
 Center Spacing 21/32 in
 Connection Type Screw
 Dimensions 3.75 in L x 2 in W x 1.19 in D
 Manufacturer Part Number 1604std
 Material Phenolic
 Mounting Type Surface
 Screw Size #10-32
 Series 1600
 Standards/Approvals UL XCFR2.E62806|CSA LR19766|CE Certified|IEC 60947-7-1|RoHS Compliant
 Temperature Rating 150 deg C
 Torque Rating 20 in-lb
 Type Heavy Duty
 Voltage Rating 600 VAC/VDC

Features

▪ -35 deg C to 125 deg C storage and transportation temperature range
▪ Line-to-line spacing
▪ Standard connector with serrations for anti-rotation
▪ 4 poles
▪ Nickel plate, brass connector
▪ Spade or fork terminal
▪ Accepts lugs with max width of 0.5 in
▪ 10,000 A short circuit current rating
▪ Approved for factory and field wiring
▪ UL 94V-0 flammability rating of insulator base
▪ Phillips-slot, brass nickel plated screw
▪ Use outside these ratings needs to be judged in the end-use application
