Eaton

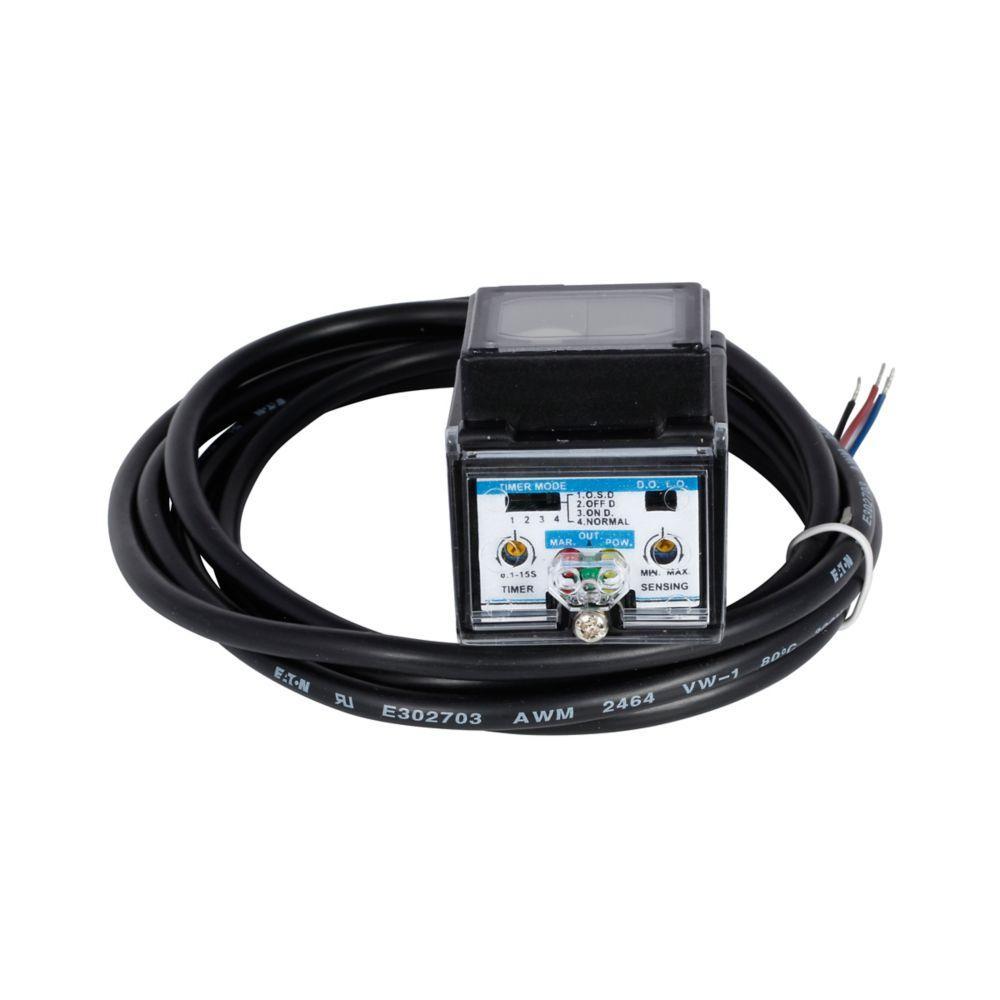

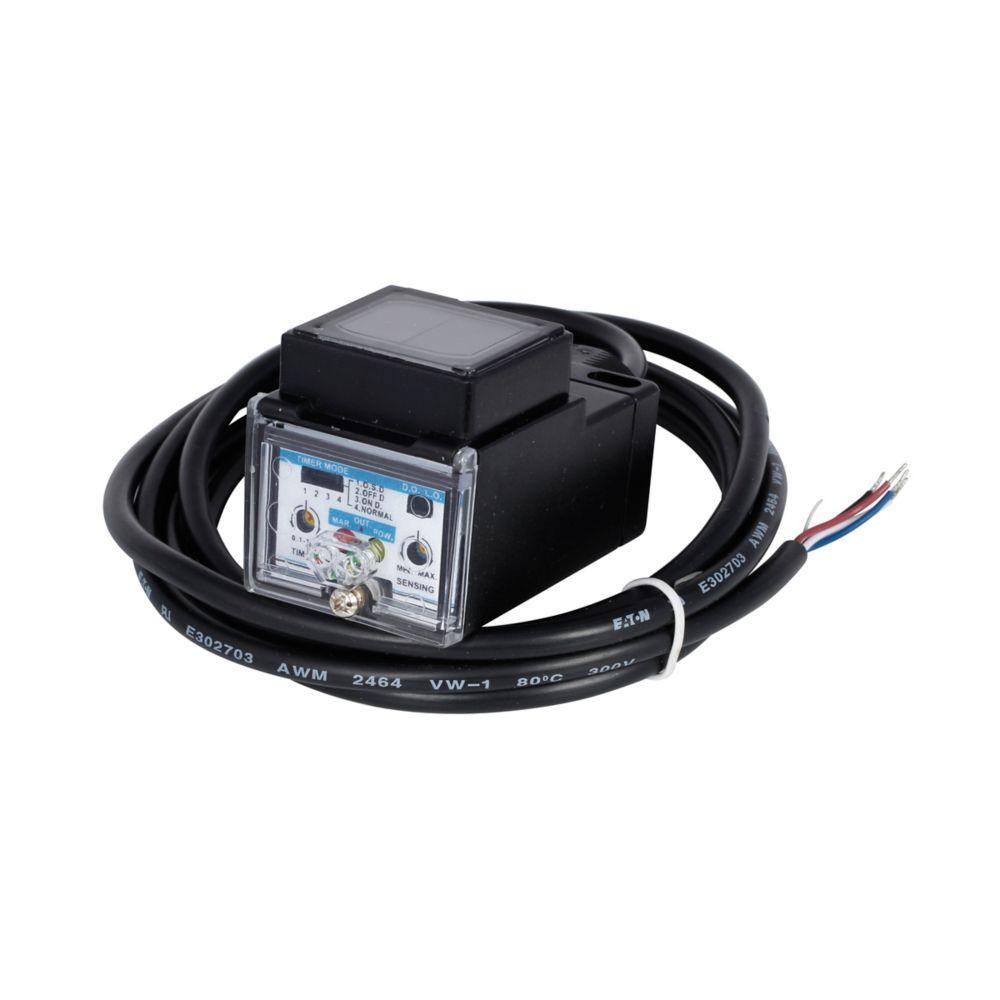

1451E-8513 CH POLARIZED REFLEX,AC/DC,SS RELAY,CABLE,W/TIMING

Mouse over image to zoom, click to enlarge

  • 1451E-8513 CH POLARIZED REFLEX,AC/DC,SS RELAY,CABLE,W/TIMING
  • 1451E-8513 CH POLARIZED REFLEX,AC/DC,SS RELAY,CABLE,W/TIMING
  • 1451E-8513 CH POLARIZED REFLEX,AC/DC,SS RELAY,CABLE,W/TIMING

Description: EATON Photoelectric Sensor, Forward Viewing, Series: Enhanced 50, Polarized Retroreflective Sensing Method, 16 ft Sensing Range, Visible Red Sensing Beam, 2 ms Response, 10 Output, 24 to 240 VAC, 12 to 240 VDC, 300 mA at 240 VAC/VDC, 6.6 ft Cable, LED Light Source, 3.46 in L x 1.91 in W x 1.81 in H, IP67/IP69K, -13 to 131 deg F Operating, Environmental Conditions: 95% Non-Condensing Relative Humidity

Manufacturer PN: 1451E-8513

UPC:  78211611126

Kendall Electric Inc PN: 4572309

Invoice Description:

1451E-8513 CH POLARIZED REFLEX,AC/DC,SS RELAY,CABLE,W/TIMING


SPEC SHEET

▸ See All in Reflex-Reflective, Block Style


How Can We Make This Page Better?

EATON 1451E-8513 Enhanced 50 Forward Viewing Photoelectric Sensor, 16 ft, Visible Red Sensing Beam, 2 ms Response, Solid State Relay Output

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Enhanced 50 series high-performance sensors offer flexibility, durability and high optical performance with a fully potted construction that makes these sensors ideal for use in areas subject to washdown, high shock and high vibration. Three output types, four time-delay functions, six sensing modes and four connection styles allow you to tailor the sensor to meet your exact needs
EATON Photoelectric Sensor, Forward Viewing, Series: Enhanced 50, Polarized Retroreflective Sensing Method, 16 ft Sensing Range, Visible Red Sensing Beam, 2 ms Response, 10 Output, 24 to 240 VAC, 12 to 240 VDC, 300 mA at 240 VAC/VDC, 6.6 ft Cable, LED Light Source, 3.46 in L x 1.91 in W x 1.81 in H, IP67/IP69K, -13 to 131 deg F Operating, Environmental Conditions: 95% Non-Condensing Relative Humidity

Specifications

 Amperage Rating 300 mA at 240 V AC/DC
 Brand Name EATON
 Connection Type 6.6 ft Cable
 Enclosure IP67/IP69K
 Environmental Conditions 95% Non-Condensing Relative Humidity
 Manufacturer Part Number 1451E-8513
 Operating Temperature -13 to 131 deg F
 Output Type Solid State Relay
 PART NUMBER KEYWORDS 1451E-8513 ; 1451E8513 ; 7438730 ; 782116111268 ; 78211611126 ; 00782116111268
 Response Time 2 ms
 Sensing Beam Visible Red
 Sensing Method Polarized Retroreflective
 Sensing Range 16 ft
 Series Enhanced 50
 Size 3.46 in L x 1.91 in W x 1.81 in H
 Standards/Approvals CSA Certified,CE Marked
 Type Forward Viewing
 Voltage Rating 24 to 240 V AC/12 to 240 V DC

Features

▪ High optical performance models including a 500 ft (152 m) thru-beam and a 10 ft (3 m) diffuse reflective unit
▪ All units offer light/dark selection
▪ Fiber optic sensors operate in thru-beam or diffuse reflective mode depending on the fiber optic cable selected
▪ Fully potted construction for use in areas subject to washdown, high shock and/or vibration
▪ Choice of pre-wired power cable, built-in mini-connector, built-in micro-connector and pigtail micro-connector versions, standard pre-wired cable length is 6 ft
