Eaton

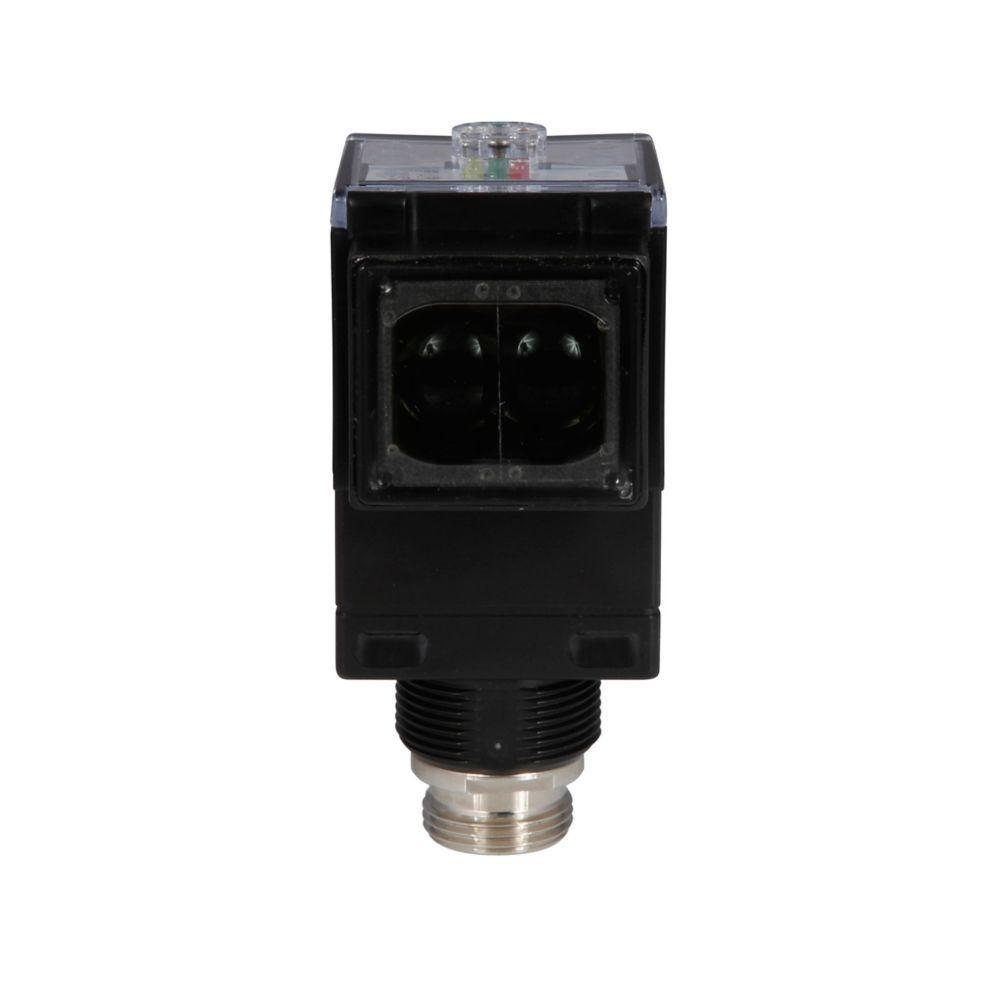

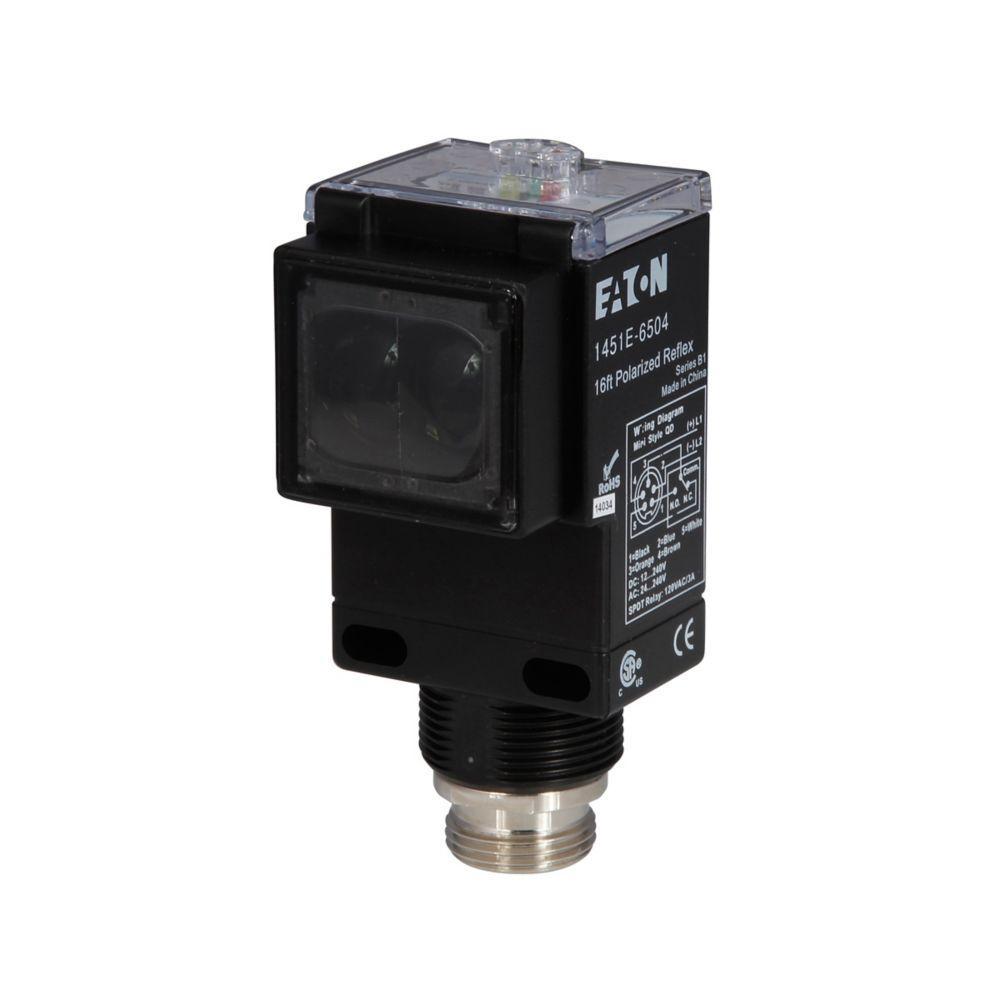

1451E-6504 CH POLARIZED REFLEX,AC/DC,EM RELAY,BODY MINI

Mouse over image to zoom, click to enlarge

  • 1451E-6504 CH POLARIZED REFLEX,AC/DC,EM RELAY,BODY MINI
  • 1451E-6504 CH POLARIZED REFLEX,AC/DC,EM RELAY,BODY MINI
  • 1451E-6504 CH POLARIZED REFLEX,AC/DC,EM RELAY,BODY MINI

Description: EATON Photoelectric Sensor, Forward Viewing, Series: Enhanced 50, Rectangle Shape, Polarized Retroreflective Sensing Method, 16 ft Sensing, Visible Red Sensing Beam, 15 ms Response, 10 Output, 24 to 240 VAC, 12 to 240 VDC, 3 A, 60 Hz Frequency, 5-Pin Mini Connection, LED Light Source, 4.01 in L x 1.91 in W x 1.81 in H Size, NEMA IP67/IP69K Enclosure, -13 to 131 deg F Operating, Environmental Conditions: 95% Non-Condensing Relative Humidity

Manufacturer PN: 1451E-6504

UPC:  78211611133

Kendall Electric Inc PN: 3757917

Invoice Description:

1451E-6504 CH POLARIZED REFLEX,AC/DC,EM RELAY,BODY MINI


SPEC SHEET

▸ See All in Reflex-Reflective, Block Style


How Can We Make This Page Better?

EATON 1451E-6504 Enhanced 50 Forward Viewing Photoelectric Sensor, Rectangle Shape, 16 ft, Visible Red Sensing Beam, 15 ms Response, SPDT Relay Output

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Enhanced 50 series high-performance sensors offer flexibility, durability and high optical performance with a fully potted construction that makes these sensors ideal for use in areas subject to washdown, high shock and high vibration. Three output types, four time-delay functions, six sensing modes and four connection styles allow you to tailor the sensor to meet your exact needs
EATON Photoelectric Sensor, Forward Viewing, Series: Enhanced 50, Rectangle Shape, Polarized Retroreflective Sensing Method, 16 ft Sensing, Visible Red Sensing Beam, 15 ms Response, 10 Output, 24 to 240 VAC, 12 to 240 VDC, 3 A, 60 Hz Frequency, 5-Pin Mini Connection, LED Light Source, 4.01 in L x 1.91 in W x 1.81 in H Size, NEMA IP67/IP69K Enclosure, -13 to 131 deg F Operating, Environmental Conditions: 95% Non-Condensing Relative Humidity

Specifications

 Amperage Rating 3 A
 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name EATON
 Connection Type 5-Pin Mini
 Enclosure NEMA IP67/IP69K
 Environmental Conditions 95% Non-Condensing Relative Humidity
 Frequency Rating 60 Hz
 Manufacturer Part Number 1451E-6504
 Operating Temperature -13 to 131 deg F
 Output Type SPDT Relay
 PART NUMBER KEYWORDS 1451E-6504 ; 1451E6504 ; 7438784 ; 782116111336 ; 78211611133 ; 00782116111336
 Response Time 15 ms
 Sensing Beam Visible Red
 Sensing Method Polarized Retroreflective
 Sensing Range 16 ft
 Series Enhanced 50
 Shape Rectangle
 Size 4.01 in L x 1.91 in W x 1.81 in H
 Standards/Approvals CSA Certified,CE Marked
 Type Forward Viewing
 Voltage Rating 24 to 240 V AC/12 to 240 V DC

Features

▪ All units offer light/dark selection
▪ Fiberglass reinforced plastic case and acrylic lens
▪ Fully potted construction for use in areas subject to wash-down, high shock and/or vibration
▪ Choice of pre-wired power cable, built-in mini-connector, built-in micro-connector and pigtail micro-connector versions, standard pre-wired cable length is 6 ft
▪ High optical performance models including a 500 ft thru-beam and a 10 ft diffuse reflective unit
