Eaton

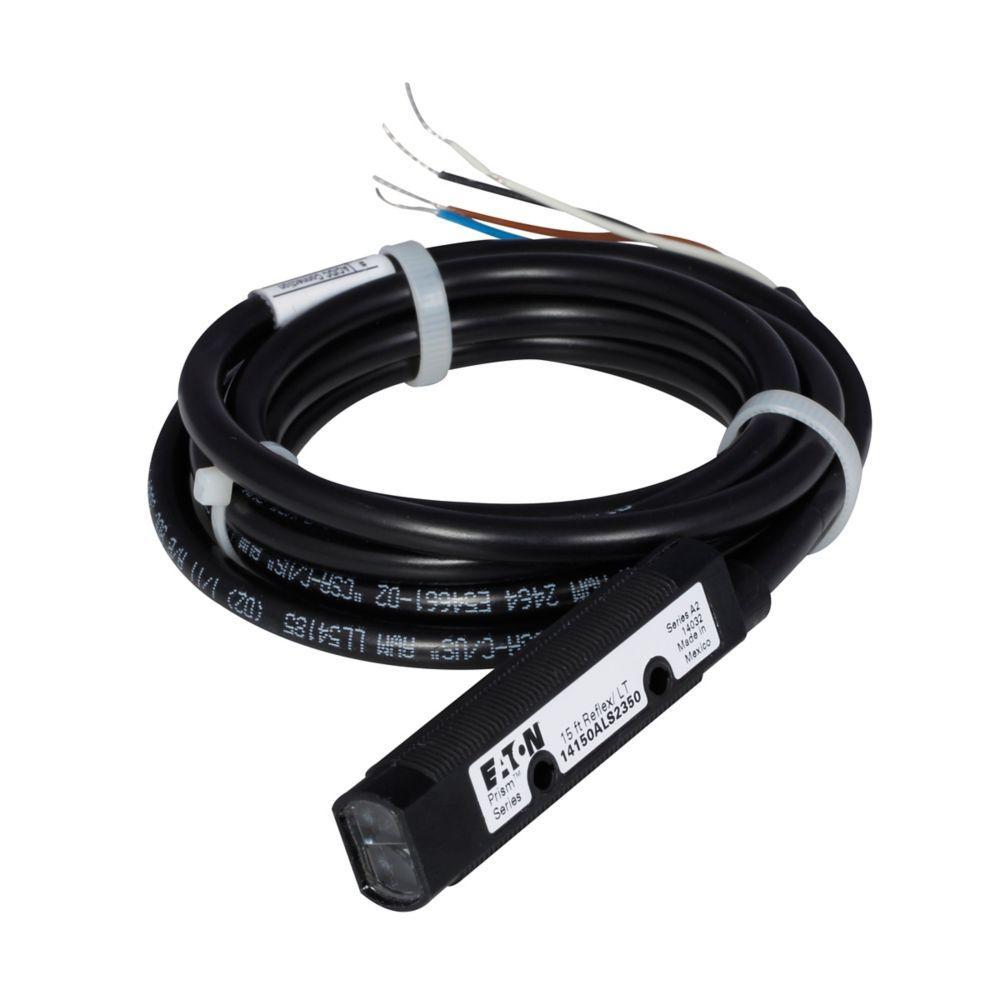

14150ALS2350 CH 14150AL14 WITH PLASTIC MOUNTING NUTS & NO GAIN POT

Mouse over image to zoom, click to enlarge

  • 14150ALS2350 CH 14150AL14 WITH PLASTIC MOUNTING NUTS & NO GAIN POT
  • 14150ALS2350 CH 14150AL14 WITH PLASTIC MOUNTING NUTS & NO GAIN POT

Description: EATON Prism® Photoelectric Sensor, 3/4-Wire Forward Viewing, Tubular Shape, Retro Reflective Sensing Method, 15 ft Sensing, Visible Red Sensing Beam, 3 ms Response, 10 Output, 20 to 132 VAC, 15 to 30 VDC, 80/100 mA, 1.5 W Wattage, 50/60 Hz Frequency, 6.6 ft Cable Connection, LED Light Source, 30 g Over 10 Hz to 2 kHz Vibration, NEMA 1/2/3/4/4X/6/12/13 Enclosure, -13 to 131 deg F Operating, Surface Mounting

Manufacturer PN: 14150ALS2350

UPC:  78668587933

Kendall Electric Inc PN: 2739236

Invoice Description:

14150ALS2350 CH 14150AL14 WITH PLASTIC MOUNTING NUTS & NO GAIN POT


SPEC SHEET

▸ See All in Reflex-Reflective, Tubular Style


How Can We Make This Page Better?

EATON Prism® 14150ALS2350 3/4-Wire Forward Viewing Photoelectric Sensor, Tubular Shape, 15 ft, Visible Red Sensing Beam, 3 ms Response, Solid State Relay Output

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Prism series 18 mm tubular sensors provide a flexible isolated output and twice the optical gain of other sensors in this product class. These cost-effective sensors offer forward- and right-angle viewing models that feature identical gain and optical characteristics for the best fit.
EATON Prism® Photoelectric Sensor, 3/4-Wire Forward Viewing, Tubular Shape, Retro Reflective Sensing Method, 15 ft Sensing, Visible Red Sensing Beam, 3 ms Response, 10 Output, 20 to 132 VAC, 15 to 30 VDC, 80/100 mA, 1.5 W Wattage, 50/60 Hz Frequency, 6.6 ft Cable Connection, LED Light Source, 30 g Over 10 Hz to 2 kHz Vibration, NEMA 1/2/3/4/4X/6/12/13 Enclosure, -13 to 131 deg F Operating, Surface Mounting

Specifications

 Amperage Rating 80/100 mA
 Application Automotive, Food Processing and Forest Product Industries, Vehicles On-Road PickUp and Delivery Food Applications
 Brand Name EATON
 Connection Type 6.6 ft Cable
 Enclosure NEMA 1/2/3/4/4X/6/12/13
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 14150ALS2350
 Mounting Type Surface
 Operating Temperature -13 to 131 deg F
 Output Type Solid State Relay
 Response Time 3 ms
 Sensing Beam Visible Red
 Sensing Method Retro Reflective
 Sensing Range 15 ft
 Shape Tubular
 Standards/Approvals cUL Listed,UL Listed,CE
 Type 3/4-Wire Forward Viewing
 Vibration 30 g Over 10 Hz to 2 kHz
 Voltage Rating 20 to 132 V AC/15 to 30 V DC
 Wattage 1.5 W

Features

▪ 80 mA at 132 VAC/100 mA at 180 VDC
▪ Small size for use in a wide variety of applications and locations
▪ High sensing power for longer ranges and resistance to dust and dirt
▪ Adjustable gain control to ensure peak optical performance
▪ High noise immunity which greatly reduces problems associated with electrical noise
▪ AC/DC models which allow you to order and stock one model for both voltages
▪ Isolated outputs for wiring flexibility
▪ Short circuit protection is provided by an adjustable instantaneous only
▪ Built-in cable models allow for lowest cost wiring
▪ Micro-connector models provide for quick installation or replacement
