Eaton

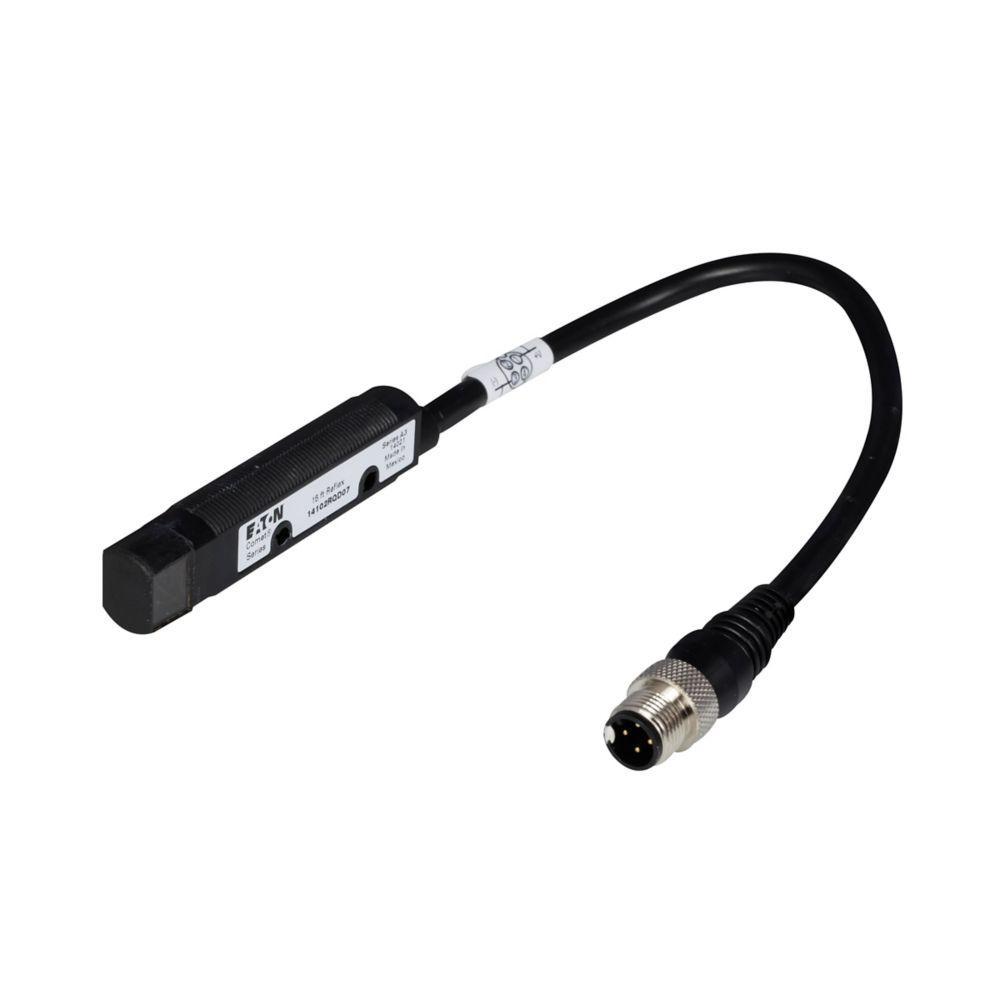

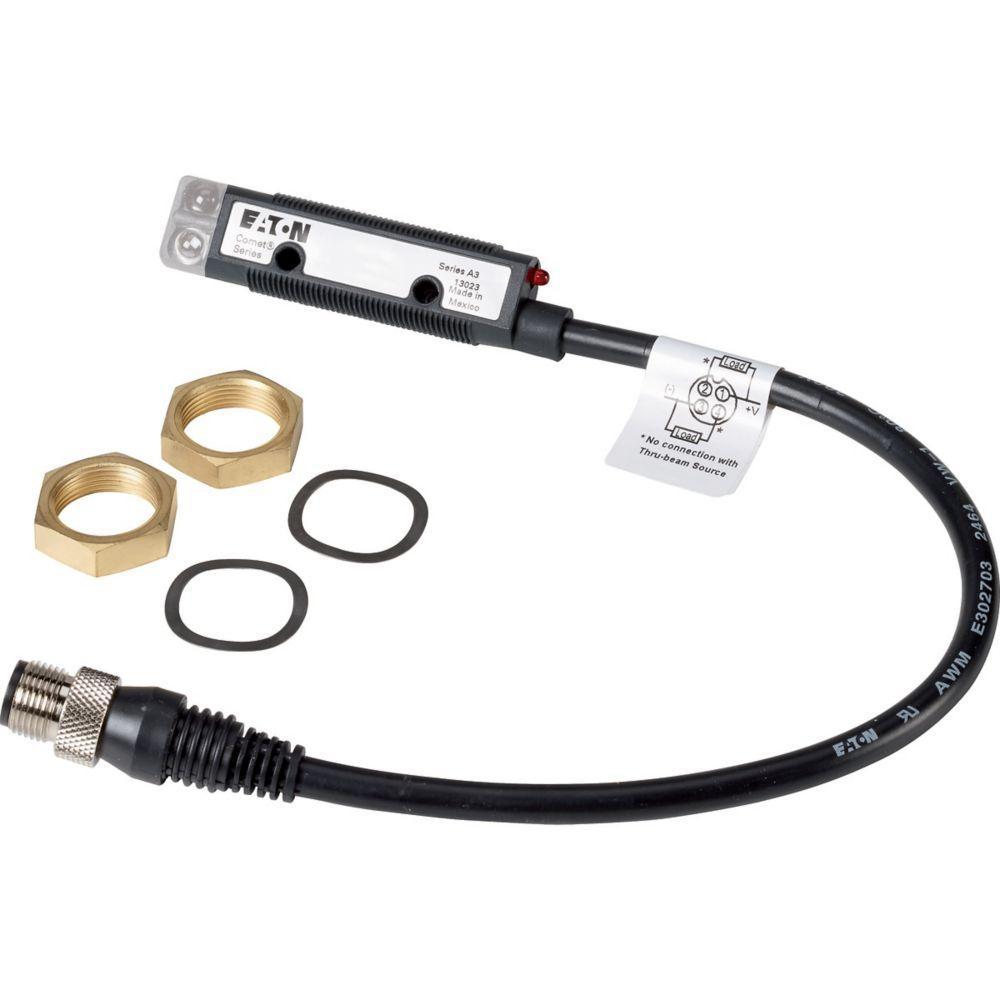

14102RQD07 CH VIS POL REFLEX COMET WITH QUICK DISCONNECT CONNECTOR,

Mouse over image to zoom, click to enlarge

  • 14102RQD07 CH VIS POL REFLEX COMET WITH QUICK DISCONNECT CONNECTOR,
  • 14102RQD07 CH VIS POL REFLEX COMET WITH QUICK DISCONNECT CONNECTOR,
  • 14102RQD07 CH VIS POL REFLEX COMET WITH QUICK DISCONNECT CONNECTOR,

Description: EATON Perfect Prox® Photoelectric Sensor, 3/4-Wire, Series: Comet, Tubular Shape, Retro Reflective Sensing Method, 15 ft Sensing, Red Laser Sensing Beam, 1 ms Response, NPN/PNP Open Collector Output, 10 to 30 V DC, 100/250 mA, 1 W Wattage, 50/60 Hz Frequency, 4-Pin M12 Micro DC Connection, LED Light Source, 30 g Over 10 Hz to 2 kHz Vibration, 3 in L x 0.47 in W x 0.71 in H Size, NEMA 1/3/4/4X/6/12/13/IP69K Enclosure, -40 to 158 deg F Operating, Surface Mounting

Manufacturer PN: 14102RQD07

UPC:  78211384672

Kendall Electric Inc PN: 2894355

Invoice Description:

14102RQD07 CH VIS POL REFLEX COMET WITH QUICK DISCONNECT CONNECTOR,


SPEC SHEET

How Can We Make This Page Better?

EATON Perfect Prox® 14102RQD07 Comet 3/4-Wire Photoelectric Sensor, Tubular Shape, 15 ft, Red Laser Sensing Beam, 1 ms Response, NPN/PNP Open Collector Output

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's E58 harsh-duty series sensors are among the most rugged and best-sealed photoelectric sensors. Stainless steel, PVDF and tempered glass components are mechanically assembled using Vitron seals to ensure resistance to chemicals and moisture intrusion. These sensors withstand heavy shock and vibration while providing unparalleled optical performance.
EATON Perfect Prox® Photoelectric Sensor, 3/4-Wire, Series: Comet, Tubular Shape, Retro Reflective Sensing Method, 15 ft Sensing, Red Laser Sensing Beam, 1 ms Response, NPN/PNP Open Collector Output, 10 to 30 V DC, 100/250 mA, 1 W Wattage, 50/60 Hz Frequency, 4-Pin M12 Micro DC Connection, LED Light Source, 30 g Over 10 Hz to 2 kHz Vibration, 3 in L x 0.47 in W x 0.71 in H Size, NEMA 1/3/4/4X/6/12/13/IP69K Enclosure, -40 to 158 deg F Operating, Surface Mounting

Specifications

 Amperage Rating 100/250 mA
 Application Automation and Logic Control Equipment, Vehicles On-Road PickUp and Delivery Food Applications
 Brand Name EATON
 Connection Type 4-Pin M12 Micro DC
 Enclosure NEMA 1/3/4/4X/6/12/13/IP69K
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 14102RQD07
 Mounting Type Surface
 Operating Temperature -40 to 158 deg F
 Output Type NPN/PNP Open Collector
 PART NUMBER KEYWORDS 14102RQD07 ; 7383229 ; 782113846729 ; 78211384672 ; 00782113846729
 Response Time 1 ms
 Sensing Beam Red Laser
 Sensing Method Retro Reflective
 Sensing Range 15 ft
 Series Comet
 Shape Tubular
 Size 3 in L x 0.47 in W x 0.71 in H
 Standards/Approvals CE,CSA Class No.: 3211-07,UL 508,CSA File No.: 50513,IEC/EN 60947-5-2,UL File No.: E117028,UL,CSA Class No.: 3211-07,UL,CSA-C22.2 No. 14,cUL Recognized,UL Recognized,cUL Recognized,UL 508,CSA-C22.2 No. 14,CE,CSA File No.: 50513,IEC/EN 60947-5-2,CSA,UL Category Control No.: NRKH, NRKH7,CSA,UL Recognized,UL File No.: E117028,UL Category Control No.: NRKH, NRKH7
 Type 3/4-Wire
 Vibration 30 g Over 10 Hz to 2 kHz
 Voltage Rating 10 to 30 V DC
 Wattage 1 W

Features

▪ Lights steady when output is on flashes when short circuit protection is in latch condition
▪ 100 mA maximum at PNP, 250 mA maximum at NPN output
▪ Industry standard 18 mm Dia threaded body has flat sides allowing it to be mounted like a tubular sensor or against any flat surface
▪ Right angle viewing models mount in a depth of only 6/10th of an inch
▪ Solid polyurethane housing completely encapsulates internal circuits for high resistance to shock and vibration
▪ Adaptable modulation circuit provides immunity to crosstalk from other closely mounted sensors
▪ The industry's only background rejection sensors with a 2-wire circuit design
▪ 4-wire DC sensors offer both NPN and PNP outputs
▪ Output status indicator visible from a wide 270 deg angle
▪ PVC cable jacket, structural polyurethane foam housing, polycarbonate lens
▪ Switch selectable light dark operation
