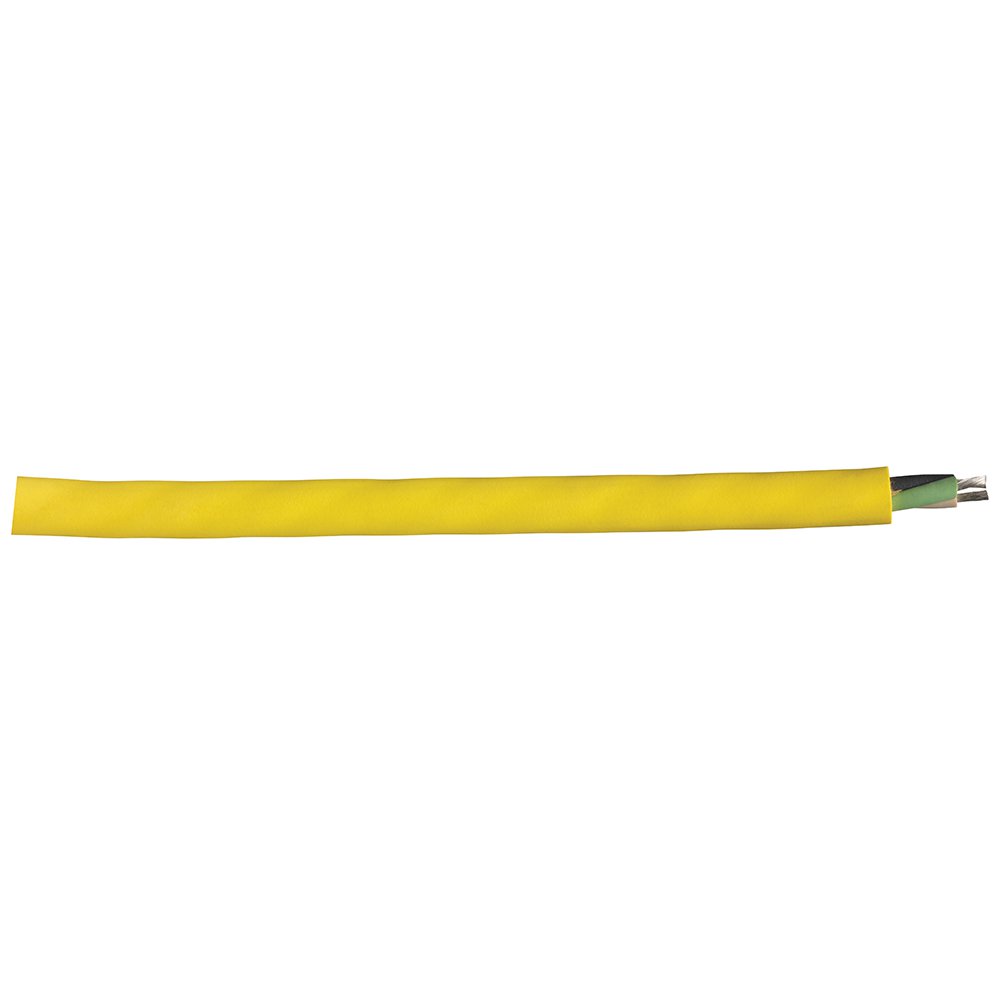

14/3 SJOOW-VUTR YELLOW SUPREME 250' REEL (.375 O.D.)

Mouse over image to zoom, click to enlarge

  • 14/3 SJOOW-VUTR YELLOW SUPREME 250' REEL (.375 O.D.)
  • 14/3 SJOOW-VUTR YELLOW SUPREME 250' REEL (.375 O.D.)

Description: Carol® Portable Cord, Type SJOOW, Reel Packaging, 300/600 V AC, 18 A, 3 Conductors, Fully Annealed Stranded Tinned Copper Conductor, 14 AWG Conductor, 3/8 in OD, 250 ft Length, 105/34 Strands, EPDM Insulation, Super Vu-Tron® Supreme Jacket, Yellow Jacket, -50 to 105 deg C

Manufacturer PN: 02608.35T.05

UPC:  07940741126

Kendall Electric Inc PN: 2470889

Invoice Description:

14/3 SJOOW-VUTR YELLOW SUPREME 250' REEL (.375 O.D.)


SPEC SHEET

▸ See All in Portable Cords - SJOOW


How Can We Make This Page Better?

Carol® 02608.35T.05 Type SJOOW Portable Cord, Reel Packaging, 300/600 V AC, (3) 14 AWG Fully Annealed Stranded Tinned Copper Conductor, 250 ft L

Log In for Pricing and Availability




Description

General Cable® Carol® brand plastic cord can be used in a variety of commercial and industrial applications both indoor and outdoor where resistance to oil, chemicals and abrasion is mandatory for powering equipment such as appliances (washers, mixers and lamps), portable tools, lights and motors, hospital, sound and floor maintenance equipment and even in thermostats and other control systems.
Carol® Portable Cord, Type SJOOW, Reel Packaging, 300/600 V AC, 18 A, 3 Conductors, Fully Annealed Stranded Tinned Copper Conductor, 14 AWG Conductor, 3/8 in OD, 250 ft Length, 105/34 Strands, EPDM Insulation, Super Vu-Tron® Supreme Jacket, Yellow Jacket, -50 to 105 deg C

Specifications

 Amperage Rating 18 A
 Application Machine tools, power tools, dockside power, motor leads, portable machinery, cranes, submersible pumps, where water immersion is required and severe environment OEM/MRO, indoor and outdoor applications
 Brand Name Carol®
 Conductor Size 14 AWG
 Conductor Type Fully Annealed Stranded Tinned Copper
 Insulation Material EPDM
 Jacket Color Yellow
 Jacket Material Super Vu-Tron® Supreme
 Length 250 ft
 Manufacturer Part Number 02608.35T.05
 Number of Conductors 3
 PART NUMBER KEYWORDS 02608.35T.05 ; 0260835T05 ; 12977201 ; 079407411269 ; 79407411269 ; 07940741126 ; 00079407411269
 Standards/Approvals RoHS Compliant|UL 62|CSA C22.2-49|OSHA/MSHA Compliant
 Strands 105/34
 Temperature Rating -50 to 105 deg C
 Type Type SJOOW
 Voltage Rating 300/600 V AC

Features

▪ Excellent flexibility in cold temperatures
▪ Last longer in flex applications (Class M stranding)
▪ Premium grade, color coded, oil-resistant 105 deg C EPDM
▪ Safety colored, with high-visibility yellow jacket
▪ TRU-Mark® sequential footage marking
▪ Tinned copper conductor, corrosion/oxidation resistance
▪ Resist to acid, abrasion, cut, chemical, high heat, flame, oil, ozone, sunlight (UV), weather and water
