Eaton

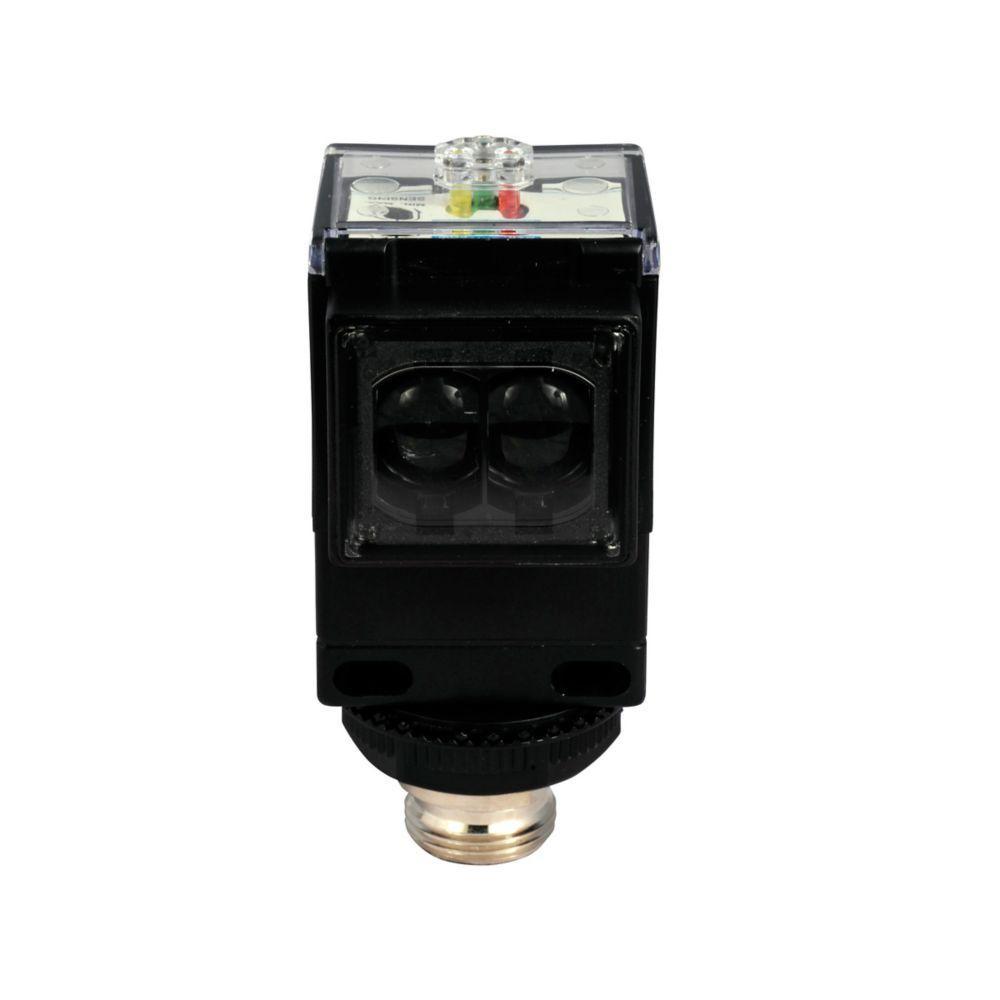

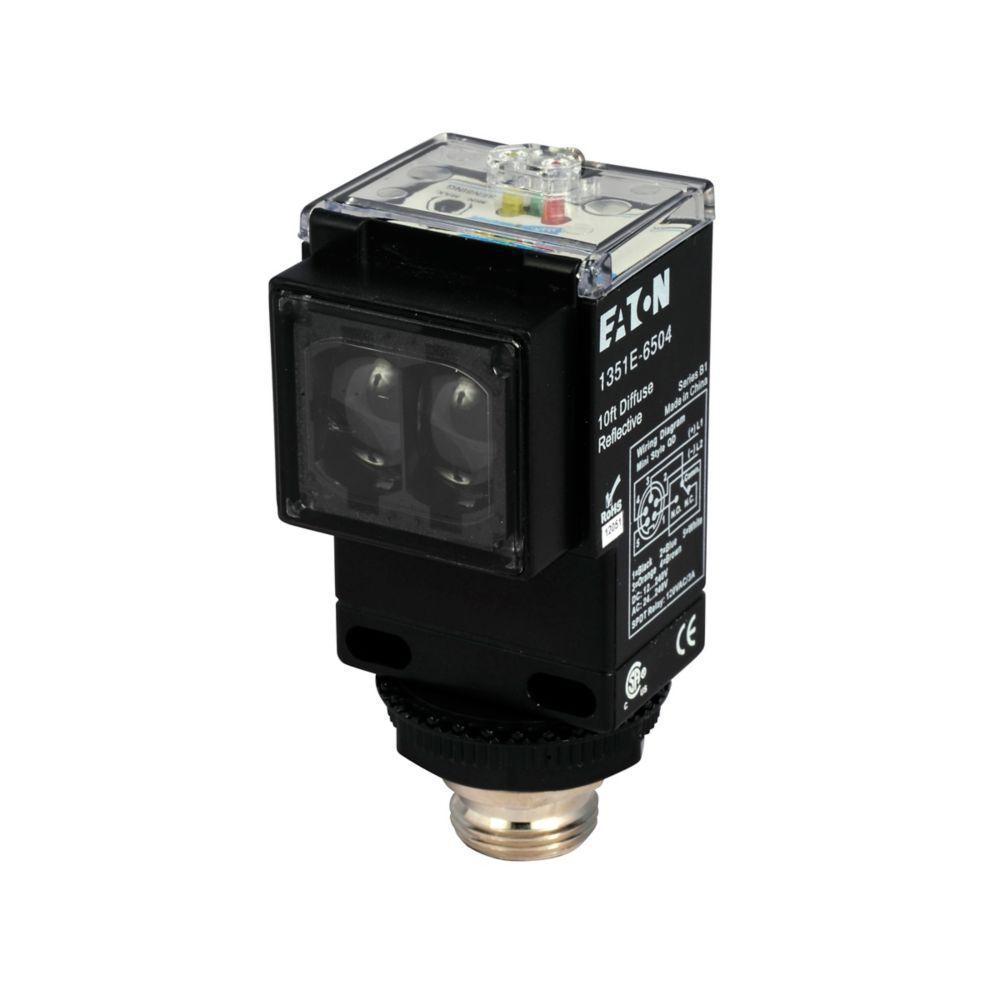

1351E-6504 CH 10' DIFFUSE REFLECTIVE,AC/DC,EM RELAY,BODY MINI

Mouse over image to zoom, click to enlarge

  • 1351E-6504 CH 10' DIFFUSE REFLECTIVE,AC/DC,EM RELAY,BODY MINI
  • 1351E-6504 CH 10' DIFFUSE REFLECTIVE,AC/DC,EM RELAY,BODY MINI
  • 1351E-6504 CH 10' DIFFUSE REFLECTIVE,AC/DC,EM RELAY,BODY MINI

Description: EATON Photoelectric Sensor, Right Angle, Series: Enhanced 50, Rectangle Shape, Diffuse Reflective Sensing Method, 10 ft Sensing, Infrared Sensing Beam, 15 ms Response, 10 Output, 24 to 240 V AC/12 to 240 V DC, 3 A at 240 VAC, 50/60 Hz Frequency, 5-Pin Mini Connection, LED Light Source, 1.91 in L x 1.81 in W x 4.16 in H Size, IP67/IP69K Enclosure, -13 to 131 deg F Operating, Environmental Conditions: 95% Non-Condensing Relative Humidity

Manufacturer PN: 1351E-6504

UPC:  78211611177

Kendall Electric Inc PN: 3884063

Invoice Description:

1351E-6504 CH 10' DIFFUSE REFLECTIVE,AC/DC,EM RELAY,BODY MINI


SPEC SHEET

▸ See All in Reflex-Reflective, Block Style


How Can We Make This Page Better?

EATON 1351E-6504 Enhanced 50 Right Angle Photoelectric Sensor, Rectangle Shape, 10 ft, Infrared Sensing Beam, 15 ms Response, SPDT Relay Output

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Enhanced 50 series high-performance sensors offer flexibility, durability and high optical performance with a fully potted construction that makes these sensors ideal for use in areas subject to washdown, high shock and high vibration. Three output types, four time-delay functions, six sensing modes and four connection styles allow you to tailor the sensor to meet your exact needs
EATON Photoelectric Sensor, Right Angle, Series: Enhanced 50, Rectangle Shape, Diffuse Reflective Sensing Method, 10 ft Sensing, Infrared Sensing Beam, 15 ms Response, 10 Output, 24 to 240 V AC/12 to 240 V DC, 3 A at 240 VAC, 50/60 Hz Frequency, 5-Pin Mini Connection, LED Light Source, 1.91 in L x 1.81 in W x 4.16 in H Size, IP67/IP69K Enclosure, -13 to 131 deg F Operating, Environmental Conditions: 95% Non-Condensing Relative Humidity

Specifications

 Amperage Rating 3 A at 240 V AC
 Application Electrical Assemblies, Panels, EOEM Electrical Assemblies Applications
 Brand Name EATON
 Connection Type 5-Pin Mini
 Enclosure IP67/IP69K
 Environmental Conditions 95% Non-Condensing Relative Humidity
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 1351E-6504
 Operating Temperature -13 to 131 deg F
 Output Type SPDT Relay
 PART NUMBER KEYWORDS 1351E-6504 ; 1351E6504 ; 7439121 ; 782116111770 ; 78211611177 ; 00782116111770
 Response Time 15 ms
 Sensing Beam Infrared
 Sensing Method Diffuse Reflective
 Sensing Range 10 ft
 Series Enhanced 50
 Shape Rectangle
 Size 1.91 in L x 1.81 in W x 4.16 in H
 Standards/Approvals CSA Certified,RoHS Compliant
 Type Right Angle
 Voltage Rating 24 to 240 V AC/12 to 240 V DC

Features

▪ High optical performance models including a 500 ft through beam and a 10 ft diffuse reflective unit
▪ All units offer light dark selection
▪ Fiber optic sensors operate in thru-beam or diffuse reflective mode depending on the fiber optic cable selected
▪ Fully potted construction for use in areas subject to washdown , high shock and/or vibration
▪ Choice of pre-wired power cable, built-in mini-connector, built-in micro-connector and pigtail micro-connector versions, standard pre-wired cable length is 6 ft
