Eaton
1351B-6511 CH PROXIMITY,SELF-CONTAINED,LONGRANGE, 115VAC,CABLE

Mouse over image to zoom, click to enlarge

  • 1351B-6511 CH PROXIMITY,SELF-CONTAINED,LONGRANGE, 115VAC,CABLE
  • 1351B-6511 CH PROXIMITY,SELF-CONTAINED,LONGRANGE, 115VAC,CABLE

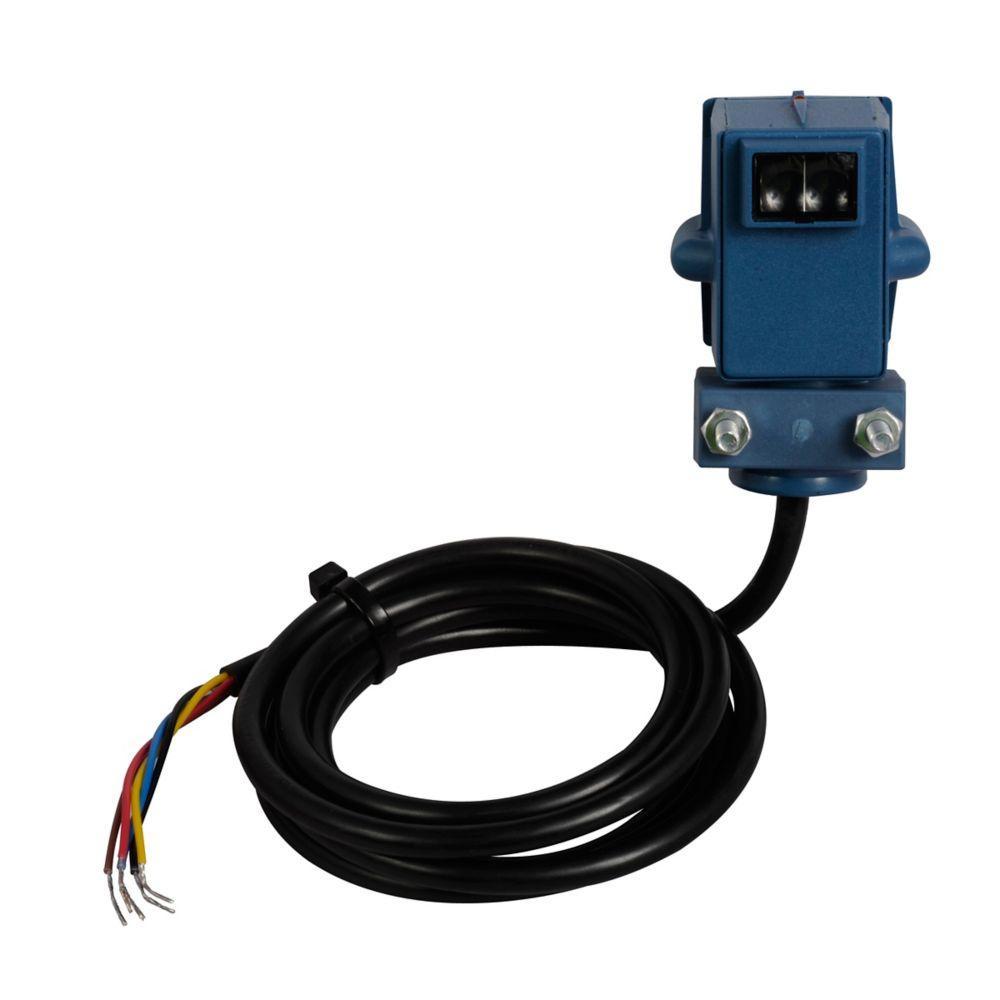

Description: EATON Photoelectric Sensor, Right Angle, Series: 50 Series, Rectangle Shape, Diffuse Reflective Sensing Method, 24 in Sensing, Infrared Sensing Beam, 12 ms Response, 90 to 132 V AC, 50 mA, 60 Hz Frequency, 6.6 ft Cable Connection, LED Light Source, 1.64 in L x 1.83 in W x 3.19 in H Size, NEMA 1/3/4/12/13 Enclosure, -40 to 158 deg F Operating

Manufacturer PN: 1351B-6511

UPC:  78211382373

Kendall Electric Inc PN: 2402188

Invoice Description:

1351B-6511 CH PROXIMITY,SELF-CONTAINED,LONGRANGE, 115VAC,CABLE


SPEC SHEET

▸ See All in Reflex-Reflective, Block Style


How Can We Make This Page Better?

EATON 1351B-6511 Right Angle Photoelectric Sensor, Rectangle Shape, 24 in, Infrared Sensing Beam, 12 ms Response

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

50 series photoelectric sensors offer flexibility, durability and high optical performance in a cost effective self-contained package. Choose from four output device modules, four logic function modules, five sensing modes and two types of connection to tailor the sensor to exactly meet your needs. A removable sealed cover allows access to the interchangeable modules.
EATON Photoelectric Sensor, Right Angle, Series: 50 Series, Rectangle Shape, Diffuse Reflective Sensing Method, 24 in Sensing, Infrared Sensing Beam, 12 ms Response, 90 to 132 V AC, 50 mA, 60 Hz Frequency, 6.6 ft Cable Connection, LED Light Source, 1.64 in L x 1.83 in W x 3.19 in H Size, NEMA 1/3/4/12/13 Enclosure, -40 to 158 deg F Operating

Specifications

 Amperage Rating 50 mA
 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name EATON
 Connection Type 6.6 ft Cable
 Enclosure NEMA 1/3/4/12/13
 Frequency Rating 60 Hz
 Manufacturer Part Number 1351B-6511
 Operating Temperature -40 to 158 deg F
 PART NUMBER KEYWORDS 1351B-6511 ; 1351B6511 ; 7377961 ; 782113823737 ; 78211382373 ; 00782113823737
 Response Time 12 ms
 Sensing Beam Infrared
 Sensing Method Diffuse Reflective
 Sensing Range 24 in
 Series 50 Series
 Shape Rectangle
 Size 1.64 in L x 1.83 in W x 3.19 in H
 Standards/Approvals UL Listed,CSA Certified,Contact Manufacturer
 Type Right Angle
 Voltage Rating 90 to 132 V AC

Features

▪ Interchangeable, plug-in output devices and logic modules
▪ Built-in 360 deg rotation, 10 deg tilt ball-swivel base
▪ Fully potted construction for use in areas subject to wash-down, high shock and/or vibration

Resources

 Catalog Page
 Product Data Sheet
