Eaton

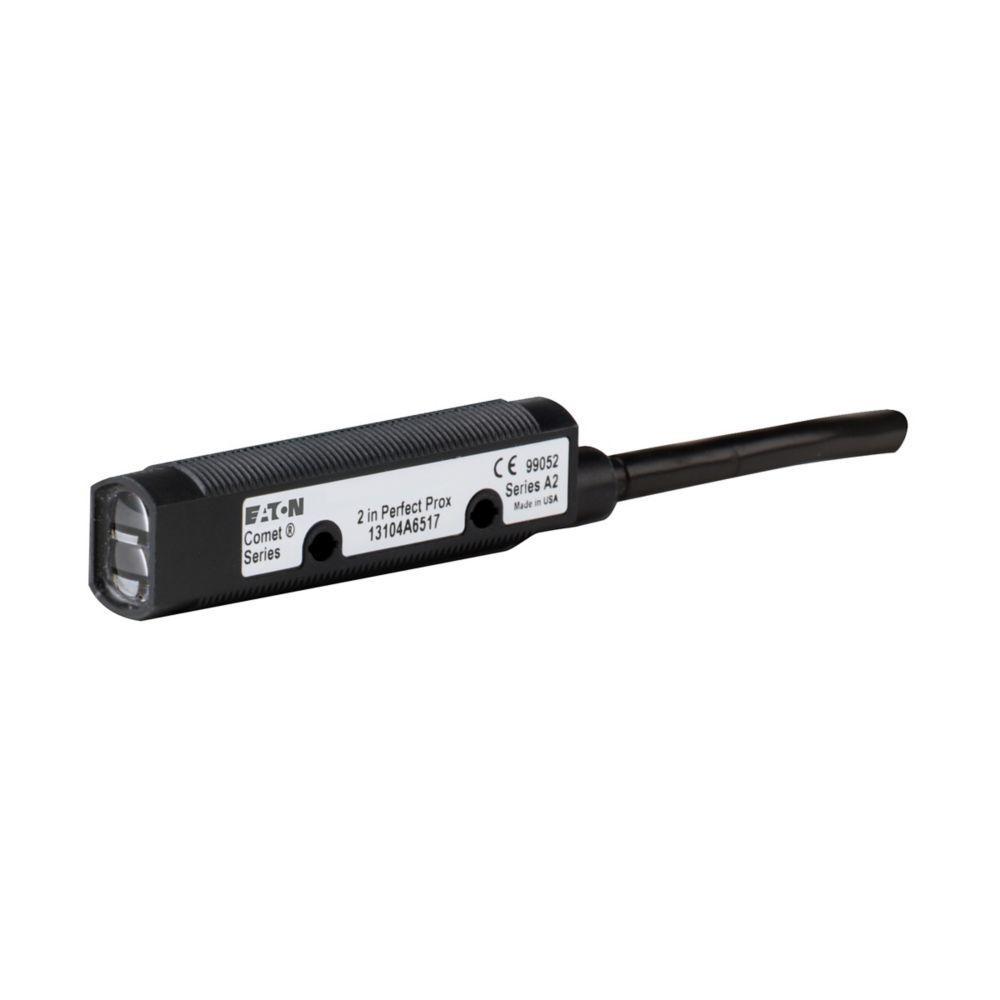

13104A6517 CH COMET 2"" PERFECT PROX,10-30 VDC WITH 6' CABLE

Mouse over image to zoom, click to enlarge

  • 13104A6517 CH COMET 2"" PERFECT PROX,10-30 VDC WITH 6' CABLE
  • 13104A6517 CH COMET 2"" PERFECT PROX,10-30 VDC WITH 6' CABLE

Description: EATON Perfect Prox® Photoelectric Sensor, 3/4-Wire Forward Viewing, Series: Comet, Tubular Shape, Background Suppression Sensing Method, 2 in Sensing, Red Laser Sensing Beam, 1/3.5 ms Response, NPN/PNP Open Collector Output, 10 to 30 V DC, 100/250 mA, 1 W Wattage, 50/60 Hz Frequency, 6 ft Cable Connection, LED Light Source, 30 g Over 10 Hz to 2 kHz Vibration, 2.6 in L x 0.47 in W x 0.71 in H Size, NEMA 1/3/4/4X/6/12/13/IP69K Enclosure, -40 to 158 deg F Operating, Surface Mounting

Manufacturer PN: 13104A6517

UPC:  78211382336

Kendall Electric Inc PN: 2059590

Invoice Description:

13104A6517 CH COMET 2"" PERFECT PROX,10-30 VDC WITH 6' CABLE


SPEC SHEET

How Can We Make This Page Better?

EATON Perfect Prox® 13104A6517 Comet 3/4-Wire Forward Viewing Photoelectric Sensor, Tubular Shape, 2 in, Red Laser Sensing Beam, 1/3.5 ms Response, NPN/PNP Open Collector Output

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's E58 harsh-duty series sensors are among the most rugged and best-sealed photoelectric sensors. Stainless steel, PVDF and tempered glass components are mechanically assembled using Vitron seals to ensure resistance to chemicals and moisture intrusion. These sensors withstand heavy shock and vibration while providing unparalleled optical performance.
EATON Perfect Prox® Photoelectric Sensor, 3/4-Wire Forward Viewing, Series: Comet, Tubular Shape, Background Suppression Sensing Method, 2 in Sensing, Red Laser Sensing Beam, 1/3.5 ms Response, NPN/PNP Open Collector Output, 10 to 30 V DC, 100/250 mA, 1 W Wattage, 50/60 Hz Frequency, 6 ft Cable Connection, LED Light Source, 30 g Over 10 Hz to 2 kHz Vibration, 2.6 in L x 0.47 in W x 0.71 in H Size, NEMA 1/3/4/4X/6/12/13/IP69K Enclosure, -40 to 158 deg F Operating, Surface Mounting

Specifications

 Amperage Rating 100/250 mA
 Application Automation and Logic Control Equipment, Vehicles On-Road PickUp and Delivery Food Applications
 Brand Name EATON
 Connection Type 6 ft Cable
 Enclosure NEMA 1/3/4/4X/6/12/13/IP69K
 Frequency Rating 50/60 Hz
 Includes 1/2-13 Hex Nut and J-Bolt
 Manufacturer Part Number 13104A6517
 Mounting Type Surface
 Operating Temperature -40 to 158 deg F
 Output Type NPN/PNP Open Collector
 PART NUMBER KEYWORDS 13104A6517 ; 7377799 ; 782113823362 ; 78211382336 ; 00782113823362
 Response Time 1/3.5 ms
 Sensing Beam Red Laser
 Sensing Method Background Suppression
 Sensing Range 2 in
 Series Comet
 Shape Tubular
 Size 2.6 in L x 0.47 in W x 0.71 in H
 Standards/Approvals cUL Recognized,CE,CSA-C22.2 No. 14,IEC/EN 60947-5-2,CSA File No.: 50513,UL 508,UL,CSA Class No.: 3211-07,UL Category Control No.: NRKH, NRKH7,UL File No.: E117028,CSA,UL Recognized,CSA Class No.: 3211-07,CSA-C22.2 No. 14,CSA,UL Recognized,CE,UL,UL File No.: E117028,cUL Recognized,UL Category Control No.: NRKH, NRKH7,CSA File No.: 50513,IEC/EN 60947-5-2,UL 508,CE,UL Category Control No.: NRKH, NRKH7,CSA Class No.: 3211-07,CSA-C22.2 No. 14,CSA,UL File No.: E117028,IEC/EN 60947-5-2,cUL Recognized,UL,UL 508,UL Recognized,CSA File No.: 50513
 Type 3/4-Wire Forward Viewing
 Vibration 30 g Over 10 Hz to 2 kHz
 Voltage Rating 10 to 30 V DC
 Wattage 1 W

Features

▪ Lights steady when output is on flashes when short circuit protection is in latch condition
▪ 100 mA maximum at PNP, 250 mA maximum at NPN output
▪ Industry standard 18 mm Dia threaded body has flat sides allowing it to be mounted like a tubular sensor or against any flat surface
▪ Right angle viewing models mount in a depth of only 6/10th of an inch
▪ Solid polyurethane housing completely encapsulates internal circuits for high resistance to shock and vibration
▪ Adaptable modulation circuit provides immunity to crosstalk from other closely mounted sensors
▪ The industry's only background rejection sensors with a 2-wire circuit design
▪ 4-wire DC sensors offer both NPN and PNP outputs
▪ Output status indicator visible from a wide 270 deg angle
▪ PVC cable jacket, structural polyurethane foam housing, polycarbonate lens
▪ Switch selectable light dark operation
