United Technologies

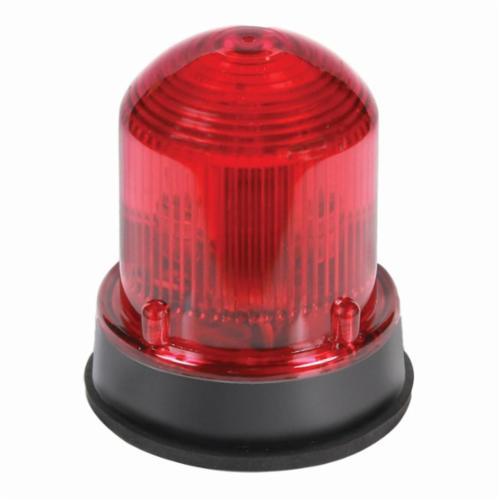

125XBRMR120A EDWARDS 125 REBEL LED MULTI RED 120VAC

Mouse over image to zoom, click to enlarge

  • 125XBRMR120A EDWARDS 125 REBEL LED MULTI RED 120VAC
  • 125XBRMR120A EDWARDS 125 REBEL LED MULTI RED 120VAC

Description: Edwards Signaling™ XTRA-BRITE™ Flashing Beacon, Multi-Mode, Series: 125XBR, 120 V AC, 0.108 A, 3-1/4 in Diameter, LED Lamp, Red, 65 fpm Flash, 148000 hr Average Life, Specifications Met: cUL Listed, Screw Mounting, NEMA 4X, -31 to 150 deg F, Nylon Base/Polycarbonate Lens Housing Material, 3-7/8 in H Dimensions

Manufacturer PN: 125XBRMR120A

UPC:  78264005062

Kendall Electric Inc PN: 2897274

Invoice Description:

125XBRMR120A EDWARDS 125 REBEL LED MULTI RED 120VAC


SPEC SHEET

▸ See All in Multi-Mode Visual Signals


How Can We Make This Page Better?

Edwards Signaling™ XTRA-BRITE™ 125XBRMR120A Multi-Mode Flashing Beacon, 120 V AC, LED Lamp, 3-1/4 in Dia, Screw Mount, Red, cUL Listed

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The Edwards 125 class XBR XTRA-BRITETM led beacons are UL and cUL listed dual mode signaling devices, available in two versions, steady-on/flashing (125XBRM) and steady-on/Lightburst (125XBRZ). Both versions feature a corrosion-resistant type 4X enclosure and can be panel or conduit mounted. The base is manufactured from a 33% glass filled nylon, providing high resistance to heat and high chemical resistivity. The lens is made of shatter resistance polycarbonate. Both the steady-on/flashing led and steady-on/Lightburst led beacons are available with either a black or gray base, and amber, blue, green, red or white lens.
Edwards Signaling™ XTRA-BRITE™ Flashing Beacon, Multi-Mode, Series: 125XBR, 120 V AC, 0.108 A, 3-1/4 in Diameter, LED Lamp, Red, 65 fpm Flash, 148000 hr Average Life, Specifications Met: cUL Listed, Screw Mounting, NEMA 4X, -31 to 150 deg F, Nylon Base/Polycarbonate Lens Housing Material, 3-7/8 in H Dimensions

Specifications

 Amperage Rating 0.108 A
 Average Life 148000 hr
 Brand Name Edwards Signaling™
 Color Red
 Dimensions 3-7/8 in H
 Flash Rate 65 fpm
 Housing Material Nylon Base/Polycarbonate Lens
 Lamp Type LED
 Manufacturer Part Number 125XBRMR120A
 Mounting Type Screw
 NEMA Rating NEMA 4X
 PART NUMBER KEYWORDS 125XBRMR120A ; 782640050620 ; 78264005062 ; 00782640050620
 Series 125XBR
 Specifications Met cUL Listed
 Standards/Approvals ARRA Compliant|Buy American Act Compliant
 Temperature Rating -31 to 150 deg F
 Type Multi-Mode
 Voltage Rating 120 V AC

Features

▪ Gray or black glass filled nylon base
▪ Protective wire guard available, catalog no 125GRD
▪ Immune to shock and vibration
▪ 1/2 in internal thread, 3/4 in external thread
▪ 33% glass filled nylon base, Shatter-resistant polycarbonate lens
