United Technologies

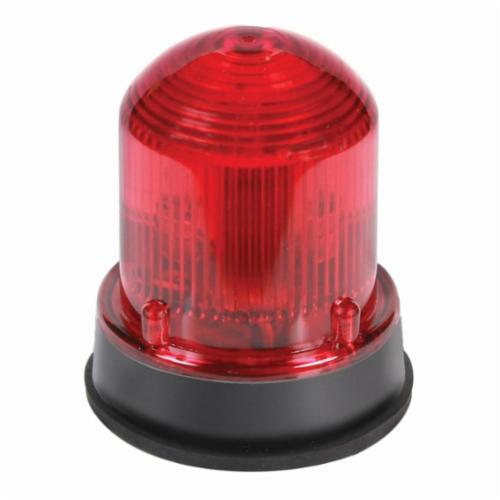

125LEDFR120AB EDWARDS 125 LED FLASH RED 120VAC

Mouse over image to zoom, click to enlarge

  • 125LEDFR120AB EDWARDS 125 LED FLASH RED 120VAC
  • 125LEDFR120AB EDWARDS 125 LED FLASH RED 120VAC

Description: Edwards Signaling™ Flashing Beacon, Standard, Series: 125LED, 120 V AC, 0.097 A, Cylindrical, 3-1/4 in Dia, LED Lamp, Red Lens, 65 fpm Flash Rate, 100000 hr Average Life, Panel Mount, NEMA 4X, -31 to 150 deg F, Nylon Base/Polycarbonate Lens Housing, 3-7/8 in H

Manufacturer PN: 125LEDFR120AB

UPC:  78264005151

Kendall Electric Inc PN: 2843039

Invoice Description:

125LEDFR120AB EDWARDS 125 LED FLASH RED 120VAC


SPEC SHEET

How Can We Make This Page Better?

Edwards Signaling™ 125LEDFR120AB Standard Flashing Beacon, 120 V AC, LED Lamp, 3-1/4 in Dia, Panel Mount, Red Lens

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Edwards 125 class standard flashing LED beacons are NEMA type 4X signaling devices, suitable for use in indoor or outdoor applications where an intermittent (flashing) light source is required. Base material is gray or black, manufactured from a 33% glass filled nylon, providing a high resistance to heat and chemicals. The lens is made of shatter resistant polycarbonate.
Edwards Signaling™ Flashing Beacon, Standard, Series: 125LED, 120 V AC, 0.097 A, Cylindrical, 3-1/4 in Dia, LED Lamp, Red Lens, 65 fpm Flash Rate, 100000 hr Average Life, Panel Mount, NEMA 4X, -31 to 150 deg F, Nylon Base/Polycarbonate Lens Housing, 3-7/8 in H

Specifications

 Amperage Rating 0.097 A
 Application Indoor/Outdoor Applications
 Average Life 100000 hr
 Brand Name Edwards Signaling™
 Dimensions 3-7/8 in H
 Flash Rate 65 fpm
 Housing Material Nylon Base/Polycarbonate Lens
 Lamp Type LED
 Lens Color Red
 Manufacturer Part Number 125LEDFR120AB
 Mounting Type Panel
 NEMA Rating NEMA 4X
 PART NUMBER KEYWORDS 125LEDFR120AB ; 782640051511 ; 78264005151 ; 00782640051511
 Series 125LED
 Shape Cylindrical
 Standards/Approvals UL 1638|cUL Listed|ARRA Compliant|Buy American Act Compliant
 Temperature Rating -31 to 150 deg F
 Type Standard
 Voltage Rating 120 V AC

Features

▪ Gray or black glass filled nylon base
▪ Protective wire guard available, Catalog number 125GRD
▪ Black colored base
▪ Immune to shock and vibration
▪ 1/2 in internal thread, 3/4 in external thread
▪ 33 percent Glass filled nylon base, polycarbonate lens
