United Technologies

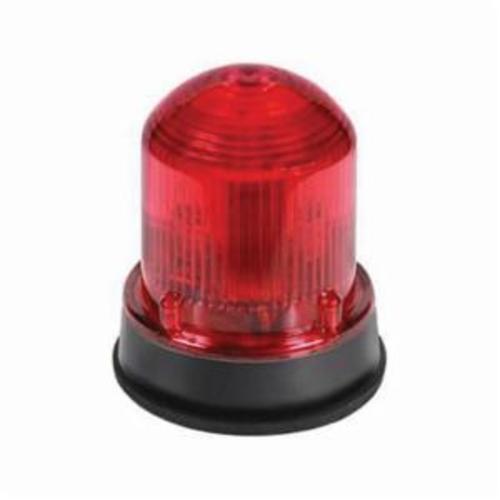

125INCFR120AB EDWARDS 125 INC FLASH RED 120V AC BLACK BASE

Mouse over image to zoom, click to enlarge

  • 125INCFR120AB EDWARDS 125 INC FLASH RED 120V AC BLACK BASE
  • 125INCFR120AB EDWARDS 125 INC FLASH RED 120V AC BLACK BASE

Description: Edwards Signaling™ Flashing Beacon, Series: 125 Class, 120 V AC, 0.1 A, Cylindrical, 3-1/4 in Dia, Incandescent Lamp, Red Lens, 65 fpm Flash Rate, 148000 hr Average Life, Panel Mount, NEMA 4X, -31 to 150 deg F, Nylon Base/Polycarbonate Dome Housing, 3-7/8 in H x 3-1/4 in W

Manufacturer PN: 125INCFR120AB

UPC:  78264005194

Kendall Electric Inc PN: 2812229

Invoice Description:

125INCFR120AB EDWARDS 125 INC FLASH RED 120V AC BLACK BASE


SPEC SHEET

▸ See All in Flashing Beacons


How Can We Make This Page Better?

Edwards Signaling™ 125INCFR120AB 125 Class Flashing Beacon, 120 V AC, Incandescent Lamp, 3-1/4 in Dia, Panel Mount, Red Lens

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

The Edwards 125 class incandescent beacons are UL and cUL listed signaling devices, available in two versions, flashing and steady-on. Both versions feature a corrosion resistant type 4X enclosure and can be panel or conduit mounted. The base is manufactured from a 33% glass filled nylon, providing high resistance to heat and high chemical resistivity. Both the flashing and steady-on beacons are available with either a black or gray base and amber, blue, clear, green or red lens.
Edwards Signaling™ Flashing Beacon, Series: 125 Class, 120 V AC, 0.1 A, Cylindrical, 3-1/4 in Dia, Incandescent Lamp, Red Lens, 65 fpm Flash Rate, 148000 hr Average Life, Panel Mount, NEMA 4X, -31 to 150 deg F, Nylon Base/Polycarbonate Dome Housing, 3-7/8 in H x 3-1/4 in W

Specifications

 Amperage Rating 0.1 A
 Application Indoor/Outdoor Applications
 Average Life 148000 hr
 Brand Name Edwards Signaling™
 Dimensions 3-7/8 in H x 3-1/4 in W
 Flash Rate 65 fpm
 Housing Material Nylon Base/Polycarbonate Dome
 Lamp Type Incandescent
 Lens Color Red
 Manufacturer Part Number 125INCFR120AB
 Mounting Type Panel
 NEMA Rating NEMA 4X
 Series 125 Class
 Shape Cylindrical
 Standards/Approvals UL 1638|cULus Listed|UL Listed|ARRA Compliant|Buy American Act Compliant
 Temperature Rating -31 to 150 deg F
 Voltage Rating 120 V AC

Features

▪ Gray or black glass filled nylon base
▪ Protective wire guard available, Cat. No. 125GRD
▪ PLC compatible
▪ Option for panel or conduit mounting
▪ Black colored base
▪ 1/2 in internal thread, 3/4 in external thread
▪ 33 percent Glass filled nylon base, polycarbonate lens
