Eaton

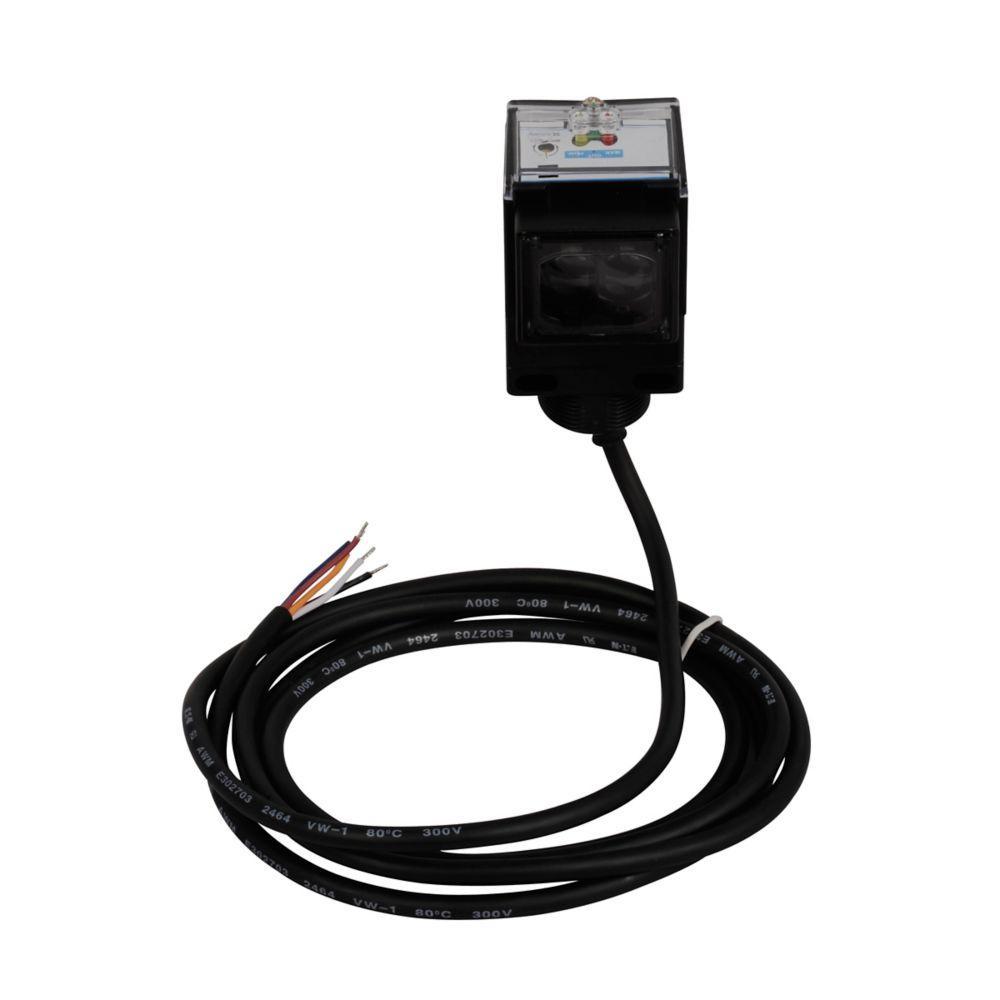

1251E-6514 CH 500' THRUBEAM DETECTOR,AC/DC,EM RELAY,CABLE

Mouse over image to zoom, click to enlarge

  • 1251E-6514 CH 500' THRUBEAM DETECTOR,AC/DC,EM RELAY,CABLE
  • 1251E-6514 CH 500' THRUBEAM DETECTOR,AC/DC,EM RELAY,CABLE

Description: EATON Photoelectric Sensor, Forward Viewing Reverse Polarity, Series: Enhanced 50, Rectangle Shape, Thru-Beam Sensing Method, 500 ft Sensing, Infrared Sensing Beam, 15 ms Response, 10 Output, 24 to 240 VAC, 12 to 240 VDC, 3 A, 6.6 ft Cable Connection, Output Green/Power Yellow/Alignment Red LED Indicator Light Source, 3.46 in L x 1.91 in W x 1.81 in H Size, NEMA IP67/IP69K Enclosure, -13 to 131 deg F Operating, Environmental Conditions: 95% Non-Condensing Relative Humidity

Manufacturer PN: 1251E-6514

UPC:  78211611287

Kendall Electric Inc PN: 2338337

Invoice Description:

1251E-6514 CH 500' THRUBEAM DETECTOR,AC/DC,EM RELAY,CABLE


SPEC SHEET

▸ See All in Thru-Beam, Block/Slot Style Receiver


How Can We Make This Page Better?

EATON 1251E-6514 Enhanced 50 Forward Viewing Reverse Polarity Photoelectric Sensor, Rectangle Shape, 500 ft, Infrared Sensing Beam, 15 ms Response, SPDT Relay Output

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Enhanced 50 series high-performance sensors offer flexibility, durability and high optical performance with a fully potted construction that makes these sensors ideal for use in areas subject to washdown, high shock and high vibration. Three output types, four time-delay functions, six sensing modes and four connection styles allow you to tailor the sensor to meet your exact needs
EATON Photoelectric Sensor, Forward Viewing Reverse Polarity, Series: Enhanced 50, Rectangle Shape, Thru-Beam Sensing Method, 500 ft Sensing, Infrared Sensing Beam, 15 ms Response, 10 Output, 24 to 240 VAC, 12 to 240 VDC, 3 A, 6.6 ft Cable Connection, Output Green/Power Yellow/Alignment Red LED Indicator Light Source, 3.46 in L x 1.91 in W x 1.81 in H Size, NEMA IP67/IP69K Enclosure, -13 to 131 deg F Operating, Environmental Conditions: 95% Non-Condensing Relative Humidity

Specifications

 Amperage Rating 3 A
 Application Electrical Assemblies, Panels and EOEMs, Automation and Logic Control Equipment Applications
 Brand Name EATON
 Connection Type 6.6 ft Cable
 Enclosure NEMA IP67/IP69K
 Environmental Conditions 95% Non-Condensing Relative Humidity
 Manufacturer Part Number 1251E-6514
 Operating Temperature -13 to 131 deg F
 Output Type SPDT Relay
 Response Time 15 ms
 Sensing Beam Infrared
 Sensing Method Thru-Beam
 Sensing Range 500 ft
 Series Enhanced 50
 Shape Rectangle
 Size 3.46 in L x 1.91 in W x 1.81 in H
 Standards/Approvals CSA Certified,CE Marked
 Type Forward Viewing Reverse Polarity
 Voltage Rating 24 to 240 V AC/12 to 240 V DC

Features

▪ Reverse polarity, overload and short-circuit protection on all models
▪ 79.2 ft L cord
▪ High optical performance models including a 500 ft thru-beam and a 10 ft diffuse reflective unit
▪ All units offer light/dark selection
▪ Logic options include time delay, 1-shot and motion detection
▪ Fully potted construction for use in areas subject to wash-down, high shock and/or vibration
▪ Fiber optic sensors operate in through beam or diffuse reflective mode depending on the fiber optic cable selected
▪ Choice of pre-wired power cable, built-in mini-connector, built-in micro-connector and pigtail micro-connector versions, standard pre-wired cable length is 6 ft
▪ Output options include a 3 A SPDT relay
▪ Standard pre-wired cable length is 6 ft
▪ PVC cable, fiberglass reinforced plastic enclosure material

Resources

 Catalog Page
 Product Data Sheet
