Eaton

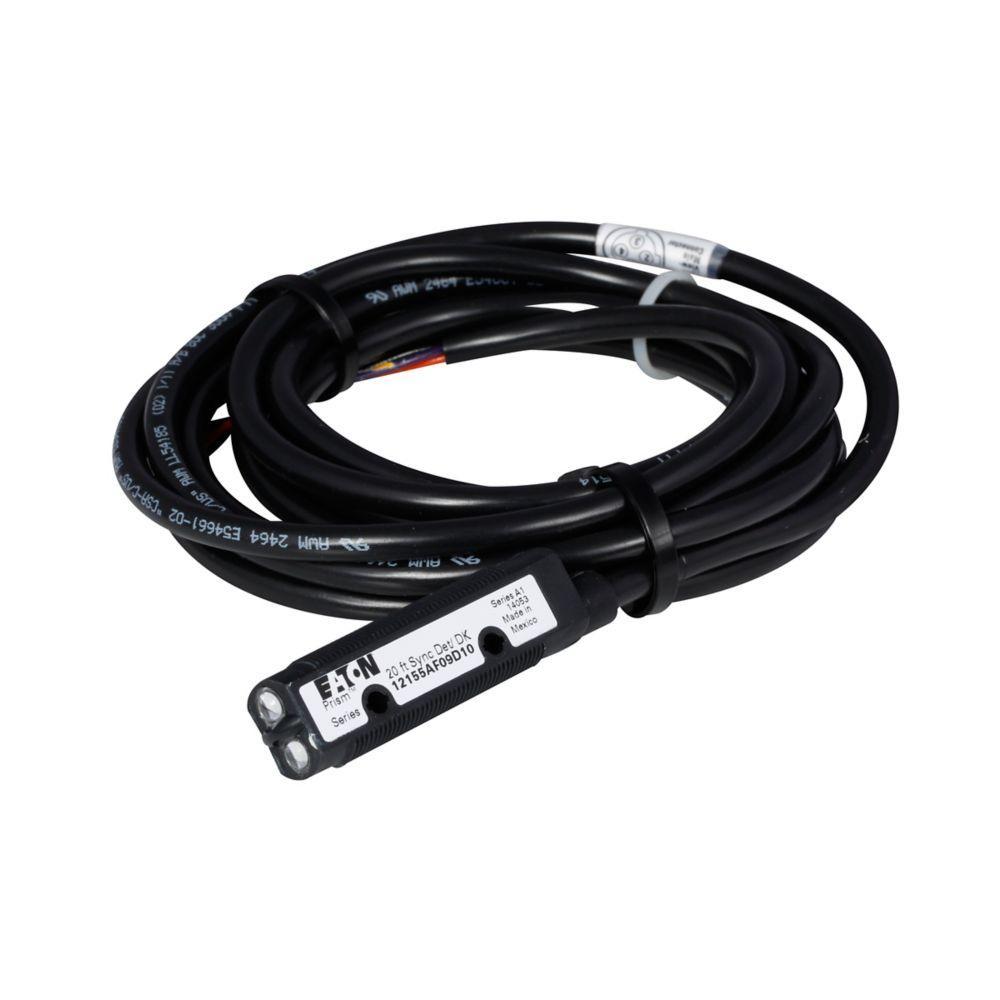

12155AF09D10 CH PRISM DETECTOR, AC&DC,CABLE,DARK OP,9 FT CABLE

Mouse over image to zoom, click to enlarge

  • 12155AF09D10 CH PRISM DETECTOR, AC&DC,CABLE,DARK OP,9 FT CABLE
  • 12155AF09D10 CH PRISM DETECTOR, AC&DC,CABLE,DARK OP,9 FT CABLE

Description: EATON Prism® Photoelectric Sensor, Forward Viewing, Tubular Shape, Thru-Beam Sensing Method, 9 ft Sensing, Visible Red Sensing Beam, 3 ms Response, 10 Output, 20 to 132 VAC, 15 to 30 VDC, 80/110 mA, 2 W Wattage, 50/60 Hz Frequency, 4-Pin Male AC/DC Key Connection, LED Light Source, 30 g Over 10 Hz to 2 kHz Vibration, 18 mm Dia Size, NEMA 1/2/3/4/4X/6/12/13 Enclosure, -13 to 131 deg F Operating, Surface Mounting

Manufacturer PN: 12155AF09D10

UPC:  78668500389

Kendall Electric Inc PN: 4342123

Invoice Description:

12155AF09D10 CH PRISM DETECTOR, AC&DC,CABLE,DARK OP,9 FT CABLE


SPEC SHEET

▸ See All in Thru-Beam, Tubular Style Receiver


How Can We Make This Page Better?

EATON Prism® 12155AF09D10 Forward Viewing Photoelectric Sensor, Tubular Shape, 9 ft, Visible Red Sensing Beam, 3 ms Response, Solid State Relay Output

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Prism series 18 mm tubular sensors provide a flexible isolated output and twice the optical gain of other sensors in this product class. These cost-effective sensors offer forward- and right-angle viewing models that feature identical gain and optical characteristics for the best fit.
EATON Prism® Photoelectric Sensor, Forward Viewing, Tubular Shape, Thru-Beam Sensing Method, 9 ft Sensing, Visible Red Sensing Beam, 3 ms Response, 10 Output, 20 to 132 VAC, 15 to 30 VDC, 80/110 mA, 2 W Wattage, 50/60 Hz Frequency, 4-Pin Male AC/DC Key Connection, LED Light Source, 30 g Over 10 Hz to 2 kHz Vibration, 18 mm Dia Size, NEMA 1/2/3/4/4X/6/12/13 Enclosure, -13 to 131 deg F Operating, Surface Mounting

Specifications

 Amperage Rating 80/110 mA
 Application Automotive, Food Processing and Forest Product Industries, Vehicles On-Road PickUp and Delivery Food Applications
 Brand Name EATON
 Connection Type 4-Pin Male AC/DC Key
 Enclosure NEMA 1/2/3/4/4X/6/12/13
 Frequency Rating 50/60 Hz
 Manufacturer Part Number 12155AF09D10
 Mounting Type Surface
 Operating Temperature -13 to 131 deg F
 Output Type Solid State Relay
 Response Time 3 ms
 Sensing Beam Visible Red
 Sensing Method Thru-Beam
 Sensing Range 9 ft
 Shape Tubular
 Size 18 mm Dia
 Standards/Approvals CE,UL Listed,cUL Listed
 Type Forward Viewing
 Vibration 30 g Over 10 Hz to 2 kHz
 Voltage Rating 20 to 132 V AC/15 to 30 V DC
 Wattage 2 W

Features

▪ 80 mA at 132 VAC/110 mA at 132 VDC
▪ Small size for use in a wide variety of applications and locations
▪ High sensing power for longer ranges and resistance to dust and dirt
▪ Adjustable gain control to ensure peak optical performance
▪ High noise immunity which greatly reduces problems associated with electrical noise
▪ AC/DC models which allow you to order and stock one model for both voltages
▪ Isolated outputs for wiring flexibility
▪ Short circuit protection is provided by an adjustable instantaneous only
▪ Built-in cable models allow for lowest cost wiring
▪ Micro-connector models provide for quick installation or replacement
