Eaton

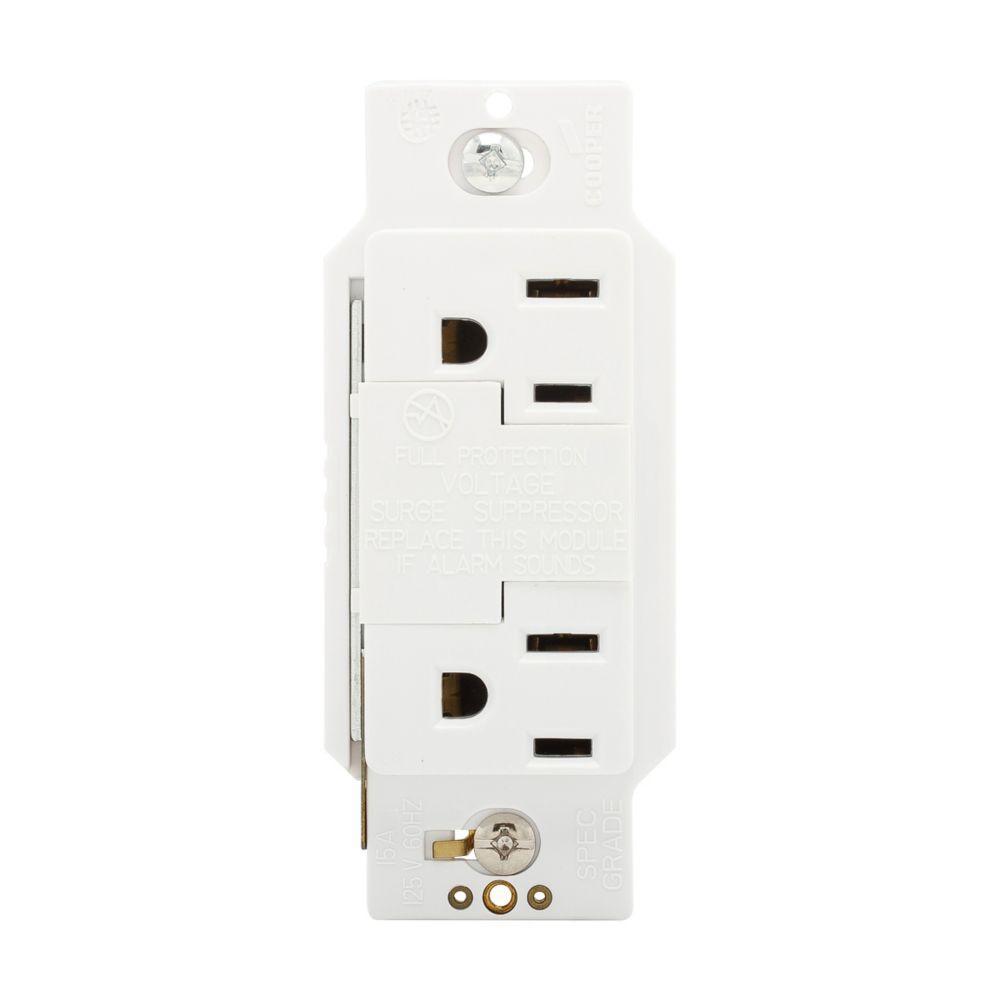

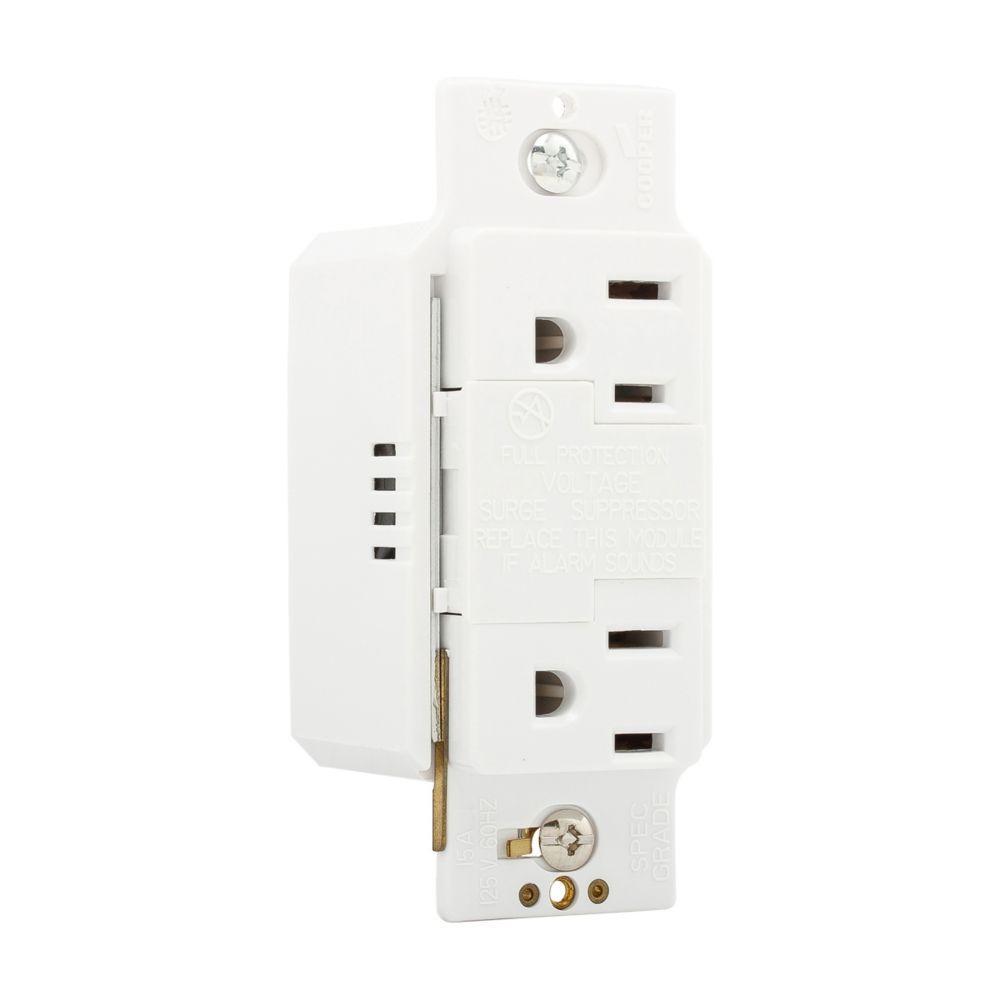

1208W CWD SGEBLOK (NON-IG) FULL PROTECTION

Mouse over image to zoom, click to enlarge

  • 1208W CWD SGEBLOK (NON-IG) FULL PROTECTION
  • 1208W CWD SGEBLOK (NON-IG) FULL PROTECTION
  • 1208W CWD SGEBLOK (NON-IG) FULL PROTECTION

Description: EATON Arrow Hart™ Eaton Wiring Devices Surge Protection Receptacle, 2-Pole 3-Wire Duplex Grounding Straight Blade TVSS, 125 V AC, 15 A, Indicators: Audible Alarm, Wire Lead Connection, Surface Mounting, 3.12 in W x 4.87 in H Size, 0 to 40 deg C Operating, Thermoplastic, White

Manufacturer PN: 1208W

UPC:  03266457087

Kendall Electric Inc PN: 2168029

Invoice Description:

1208W CWD SGEBLOK (NON-IG) FULL PROTECTION


SPEC SHEET

▸ See All in Straight Blade Surge Suppressions


How Can We Make This Page Better?

EATON Arrow Hart™ Eaton Wiring Devices 1208W 2-Pole 3-Wire Duplex Grounding Straight Blade TVSS Surge Protection Receptacle, 125 V AC, 15 A

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Ideal for protecting sensitive electronic equipment, Eaton's Arrow Hart point-of-use receptacles provide branch circuit surge protection that panel-mounted devices alone cannot. Advanced diagnostic features include LED indicators to verify surge protection and ground wiring. Certain models are available with audible alarm signaling when surge protection has expired. These receptacles are also available in hospital and commercial grades with isolated ground versions.
EATON Arrow Hart™ Eaton Wiring Devices Surge Protection Receptacle, 2-Pole 3-Wire Duplex Grounding Straight Blade TVSS, 125 V AC, 15 A, Indicators: Audible Alarm, Wire Lead Connection, Surface Mounting, 3.12 in W x 4.87 in H Size, 0 to 40 deg C Operating, Thermoplastic, White

Specifications

 Amperage Rating 15 A
 Application Commercial, Institutional Buildings and Structures Applications
 Brand Name EATON
 Color White
 Connection Wire Lead
 Manufacturer Part Number 1208W
 Material Thermoplastic
 Mounting Surface
 Operating Temperature 0 to 40 deg C
 PART NUMBER KEYWORDS 1208W ; 9592807 ; 032664570872 ; 32664570872 ; 03266457087 ; 00032664570872
 Size 3.12 in W x 4.87 in H
 Standards/Approvals cULus Listed
 Type 2-Pole 3-Wire Duplex Grounding Straight Blade TVSS
 Type of Indicators Audible Alarm
 Video Links
 Voltage Rating 125 V AC

Features

▪ High impact-resistant thermoplastic mounting strap for long-lasting durable installation
▪ Standard 6 in leads
▪ 1/2 in stripped
▪ 12 AWG wire terminal
▪ 5-15R NEMA rating
▪ Wallbox receptacles

Resources

 Catalog Page
 Product Data Sheet
