American Lighting

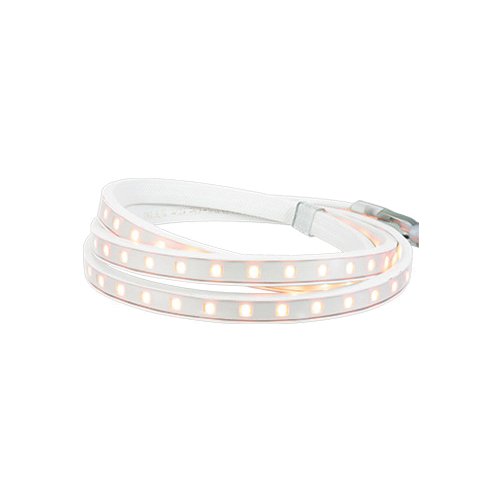

120-H2-WW 150FT LED TAPE HYBRID2 120V

Mouse over image to zoom, click to enlarge

  • 120-H2-WW 150FT LED TAPE HYBRID2 120V
  • 120-H2-WW 150FT LED TAPE HYBRID2 120V
  • 120-H2-WW 150FT LED TAPE HYBRID2 120V

Description: American Lighting Linear Light, Cuttable Dimmable Economical Flexible Linkable Low Profile, Series: H2 Tape Rope Hybrid Collection, 120 V AC, LED Lamp, 2.3 W/ft Lamp, 30000 hr Average Life, Warm White Light, 2700 K Color Temperature, 82 CRI, 10 to 100% Dimmable Ballast, Clear PVC Lens, 145 Lumens, 5 ft Attached Molded Removable Power Cord, IP65 Enclosure, Clip Mounting, Rubber Housing Material, White Housing Finish, 150 ft L x 9/16 in W x 1/4 in H Dimensions

Manufacturer PN: 120-H2-WW

UPC:  71417600213

Kendall Electric Inc PN: 3915239

Invoice Description:

120-H2-WW 150FT LED TAPE HYBRID2 120V


SPEC SHEET

▸ See All in Outdoor Strip & Tape Lighting


How Can We Make This Page Better?

American Lighting 120-H2-WW Cuttable Dimmable Economical Flexible Linkable Low Profile Linear Light, LED Lamp, 120 V AC, White Housing

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Superb light output for indoor and outdoor use. Parallel wiring in 18 in increments ensures that if one LED goes out, the rest of the LEDs continue to operate. Warm white and bright white emit 145 and 180 Lumens/ft of light, respectively, providing an effective general lighting option that is both vibrant and energy efficient for hospitality, home theater and other various entertainment applications.
American Lighting Linear Light, Cuttable Dimmable Economical Flexible Linkable Low Profile, Series: H2 Tape Rope Hybrid Collection, 120 V AC, LED Lamp, 2.3 W/ft Lamp, 30000 hr Average Life, Warm White Light, 2700 K Color Temperature, 82 CRI, 10 to 100% Dimmable Ballast, Clear PVC Lens, 145 Lumens, 5 ft Attached Molded Removable Power Cord, IP65 Enclosure, Clip Mounting, Rubber Housing Material, White Housing Finish, 150 ft L x 9/16 in W x 1/4 in H Dimensions

Specifications

 Application Coves, Accent Lighting, Ledges, Shelves, Hospitality, Home Theater, Entertainment and Indoor/Outdoor Applications
 Average Life 30000 hr
 Ballast Type 10 to 100% Dimmable
 Brand Name American Lighting
 Color Rendering Index CRI 82
 Color Temperature 2700 K
 Cord Type 5 ft Attached Molded Removable Power
 Dimensions 150 ft L x 9/16 in W x 1/4 in H
 Enclosure IP65
 Housing Finish White
 Housing Material Rubber
 Includes (1) 150 ft Reel of Hybrid 2, (1) Attached H2-CONKIT-8A 8 A Inverter, (4) H2-CONKIT-8A 8 A Inverters, (1) Removable End Cap and (50) Clear Plastic Mounting Clips with Screw
 Lamp Wattage 2.3 W/ft
 Light Color Warm White
 Lumens 145 Lumens
 Manufacturer Part Number 120-H2-WW
 Mounting Type Clip
 Series H2 Tape Rope Hybrid Collection
 Standards/Approvals ETL Listed|cETLus Listed|RoHS Compliant
 Type Cuttable Dimmable Economical Flexible Linkable Low Profile
 Video Links
 Voltage Rating 120 V AC

Features

▪ Up to 180 Lumens/ft and 82+ CRI for 2700 K (WW) and 5000 K (WH) reels
▪ 120 VAC reels consume only 2.3 W/ft
▪ Dimmable with most CL and ELV dimmers
▪ Cuttable every 18 in
▪ Economical for larger installations no need for a driver (150 ft maximum run)

Resources

 Catalog
 Catalog Page
 Product Data Sheet
