Atkore

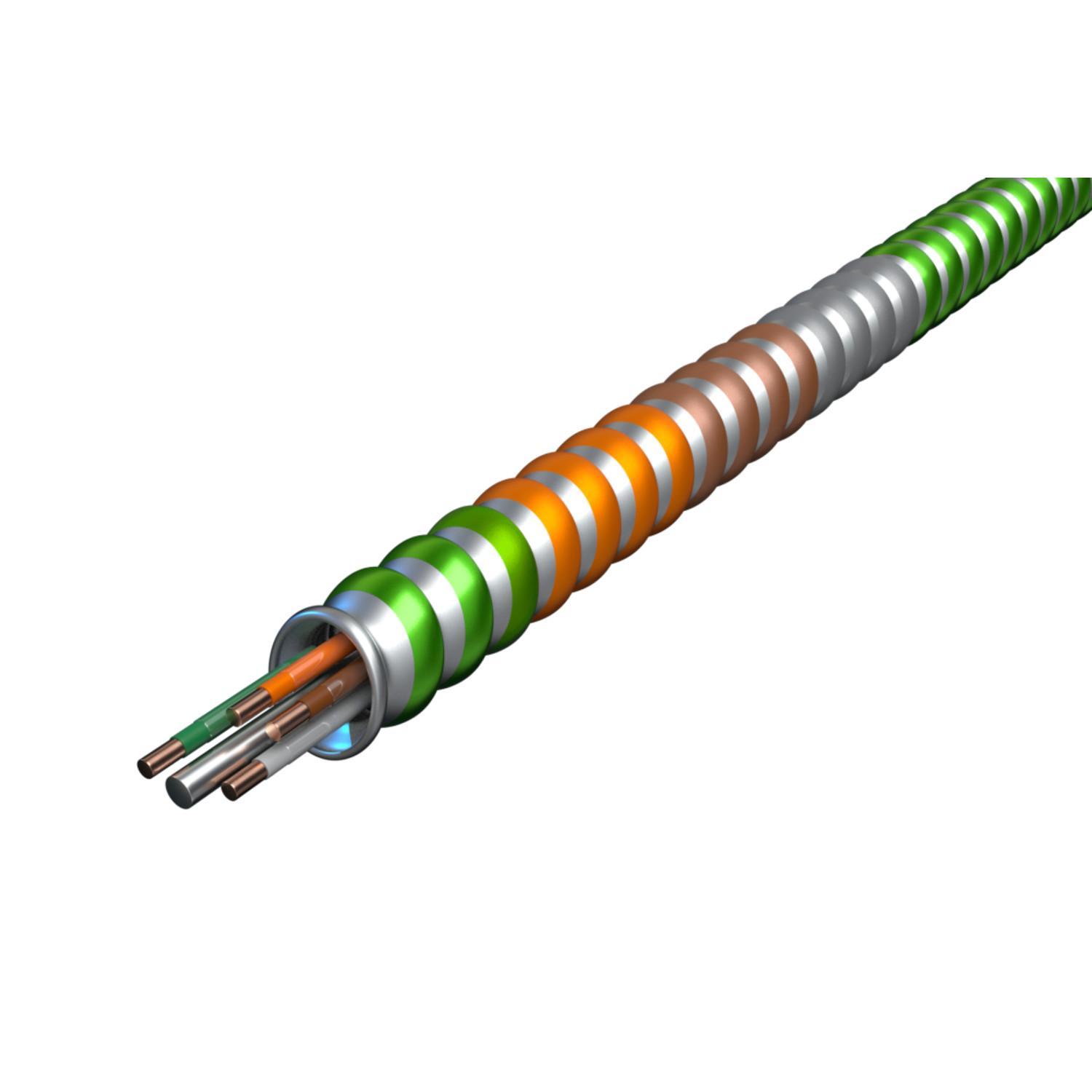

12/2 WG MCAP HCF SOLID 1000' REEL..

Mouse over image to zoom, click to enlarge

  • 12/2 WG MCAP HCF SOLID 1000' REEL..
  • 12/2 WG MCAP HCF SOLID 1000' REEL..

Description: AFC Cable Systems MC-Stat® Health Care Cable, Type MC, Reel Packaging, 600 V AC, 2 Conductors, Solid Copper Conductor, 12 AWG Conductor, 0.523 in OD, 1000 ft Length, THHN Insulation, Interlocked Steel/Aluminum Armor Jacket, 90 deg C

Manufacturer PN: 12/2WGMCAPHCFSOLID1000REEL

UPC:  07768025479

Kendall Electric Inc PN: 2733356

Invoice Description:

12/2 WG MCAP HCF SOLID 1000' REEL..


SPEC SHEET

▸ See All in Hospital Grade Armored Cables


How Can We Make This Page Better?

AFC Cable Systems MC-Stat® 7504-60-00 Type MC Health Care Cable With Grounding and Neutral Conductor, Reel Packaging, 600 V AC, (2) 12 AWG Solid Copper Conductor, 1000 ft L

Log In for Pricing and Availability




Description

AFC Cable Systems MC-Stat® Health Care Cable, Type MC, Reel Packaging, 600 V AC, 2 Conductors, Solid Copper Conductor, 12 AWG Conductor, 0.523 in OD, 1000 ft Length, THHN Insulation, Interlocked Steel/Aluminum Armor Jacket, 90 deg C

Specifications

 Application For branch circuits in areas of patient care in hospitals, nursing homes, outpatient facilities, dental offices, clinics and medical centers (other than emergency, life safety or critical care locations), places of assembly, under raised floors, above suspended ceilings, environmental air-handling spaces, exposed or concealed dry locations, surface mounted, fished, any application requiring isolated or redundant grounding, normal or general purpose power in health care settings
 Brand Name AFC Cable Systems
 Conductor Size 12 AWG
 Conductor Type Solid Copper
 Insulation Material THHN
 Jacket Material Interlocked Steel/Aluminum Armor
 Length 1000 ft
 Manufacturer Part Number 7504-60-00
 Number of Conductors 2
 PART NUMBER KEYWORDS 7504-60-00 ; 75046000 ; 13431154 ; 077680254795 ; 77680254795 ; 07768025479 ; 00077680254795
 Standards/Approvals UL 1569|UL 83|UL 1479|UL 1581|UL 2556|UL File No. E80042|Federal Specifications A-A-59544 (Formerly J-C30B)|NEC® 330, 300.22(C), 230.43, 250.118, 392, 396, 503, 530, 517, 518, 520, 645|US Patent No. 8088997 B2/8278554 B2|Meets OSHA and HUD Requirements|UL Classified 1, 2, 3 Hour Through (Fire) Penetration Product, R14141|Environmental Air Handling Spaces NEC® 300.22
 Temperature Rating 90 deg C
 Type Type MC
 Voltage Rating 600 V AC

Features

▪ Armor plus full sized aluminum ground wire is the equipment grounding mean, second equipment grounding means is full sized insulated copper grounding conductor
▪ MCI-A listed connectors required
▪ Technically equivalent and economically superior to traditional raceway and wire installations
▪ Wrap Free
▪ Protective polypropylene covering is extruded directly over the THHN insulation to eliminate the need for an overall assembly tape wrapping the twisted conductors reducing installation time and general waste on the jobsite
▪ ColorSpec ID/Color-Trak ID System
▪ Lime green galvanized steel armor with phase ID painted directly onto the armor for added identification without the added step of opening up the panel to determine circuit type

Resources

 Catalog
 Product Data Sheet
