NSi Industries

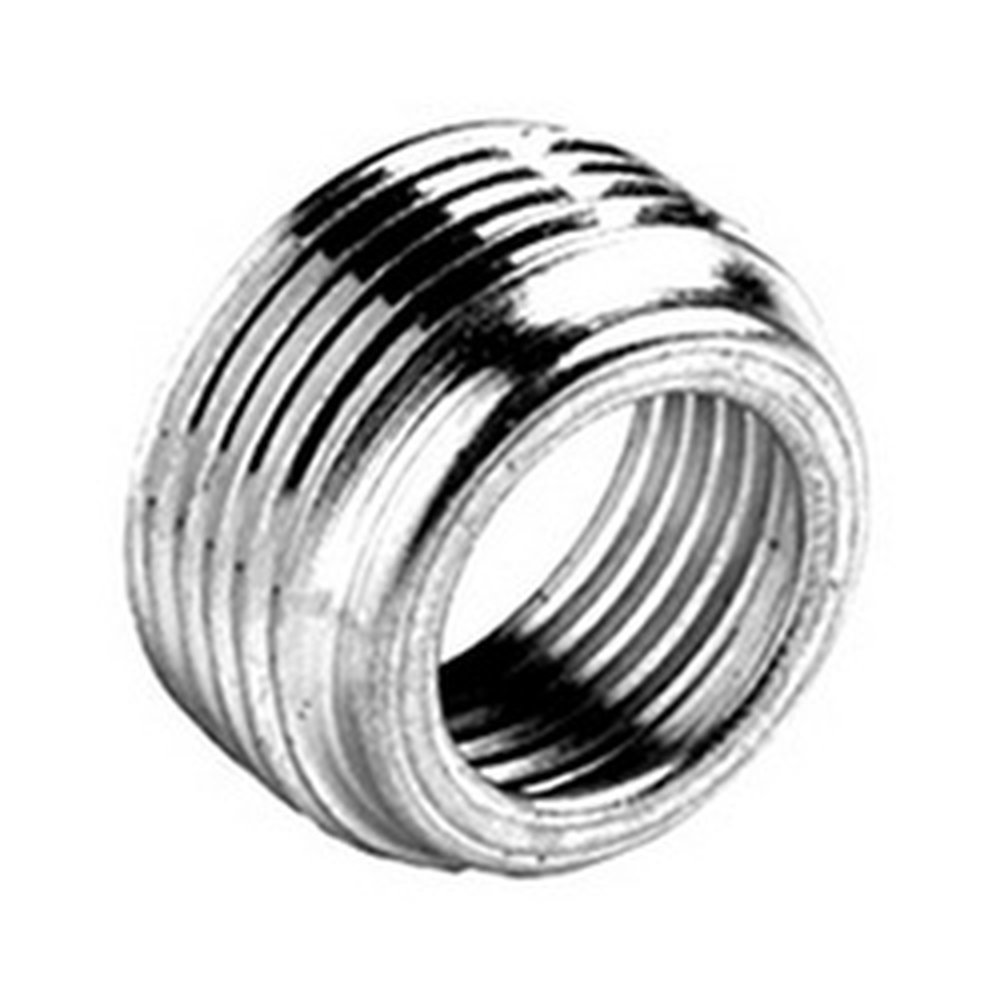

1176 BRIDGEPO 2-1/2" - 2" REDUCING BUSHING..

Mouse over image to zoom, click to enlarge

  • 1176 BRIDGEPO 2-1/2" - 2" REDUCING BUSHING..
  • 1176 BRIDGEPO 2-1/2" - 2" REDUCING BUSHING..

Description: Bridgeport® Reducing Bushing, 2-1/2 to 2 in, Malleable Iron, Electro-Plated Zinc, 1-15/16 in ID x 2-7/8 in OD x 1-3/8 in W

Manufacturer PN: 1176

UPC:  78174701176

Kendall Electric Inc PN: 4709435

Invoice Description:

1176 BRIDGEPO 2-1/2" - 2" REDUCING BUSHING..


SPEC SHEET

▸ See All in Conduit Bushings



Bridgeport® 1176 Reducing Bushing, 2-1/2 to 2 in Trade, Malleable Iron, Electro-Plated Zinc

Log In for Pricing and Availability




Description

The Bridgeport 1176 2-1/2-Inch to 2-Inch Steel Reducing Bushing seamlessly reduces the size of internal female threads when joining two lengths of threaded rigid or IMC conduits. The zinc electroplated steel bushing provides rust and corrosion resistance plus consistent alignment, centerlines and strong threads. With an overall length of 1-3/8 inches and a 1-15/16-inch diameter, this solidly-built bushing meets the construction and general industry OSHA-recognized, NRTL-listed electrical standards, is RoHS compliant and meets the stringent bonding and grounding requirements of 514B cULus. Bridgeport builds every product with the same goal in mind: guaranteeing a fast, professional-grade, trouble-free installation. Our wide selection of products are manufactured for innovation, consistency and quality — providing you with connectors, couplings or transition fittings that are safety listed, ensuring code compliance to meet your needs and enable you to do your best work at a lower total cost. When you need a solution you can depend on, be sure to look for Bridgeport Orange.
Bridgeport® Reducing Bushing, 2-1/2 to 2 in, Malleable Iron, Electro-Plated Zinc, 1-15/16 in ID x 2-7/8 in OD x 1-3/8 in W

Specifications

 Application Used to reduce the size of internal female threads
 Brand Name Bridgeport®
 Dimensions 1-15/16 in ID x 2-7/8 in OD x 1-3/8 in W
 Finish Electro-Plated Zinc
 Manufacturer Part Number 1176
 Material Malleable Iron
 PART NUMBER KEYWORDS 1176 ; 20877054 ; 781747011763 ; 78174701176 ; 00781747011763 ; 0781747011763
 Standards/Approvals RoHS Compliant|CSA LR39354
 Trade Size 2-1/2 to 2 in
 Video Links

Features

▪ Used with locknut to terminate service conduit to cabinet
▪ Plastic metaliner prevents damage to wire insulation
▪ For rigid and IMC conduit
▪ Lug provided for bonding jumper to neutral busbar
▪ 1/2 in thru 2 in steel, 2-1/2 in and 4 in malleable iron
▪ Aluminum alloy 6061-T6 grounding lug
