nVent
1150125EG ERICO 100/BOX HANGER,LOOP,SWIVEL,1 1/4 IN

Mouse over image to zoom, click to enlarge

  • 1150125EG ERICO 100/BOX HANGER,LOOP,SWIVEL,1 1/4 IN
  • 1150125EG ERICO 100/BOX HANGER,LOOP,SWIVEL,1 1/4 IN

Description: nVent CADDY Loop Hanger, Standard Duty Swivel, Series: 115, 1-1/4 in Pipe, 3/8 in Rod, 300 lb, For Use With: Suspension of Stationary Non-Insulated Pipe Line, 1.66 in OD, Steel, Pre-Galvanized, 3-9/16 in H

Manufacturer PN: 1150125EG

UPC:  78285641728

Kendall Electric Inc PN: 3653059

Invoice Description:

1150125EG ERICO 100/BOX HANGER,LOOP,SWIVEL,1 1/4 IN


SPEC SHEET

▸ See All in Loop Hangers


How Can We Make This Page Better?

nVent CADDY 1150125EG Standard Duty Swivel Loop Hanger, 1-1/4 in Pipe, 3/8 in Rod, 300 lb Load, Steel, Pre-Galvanized

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

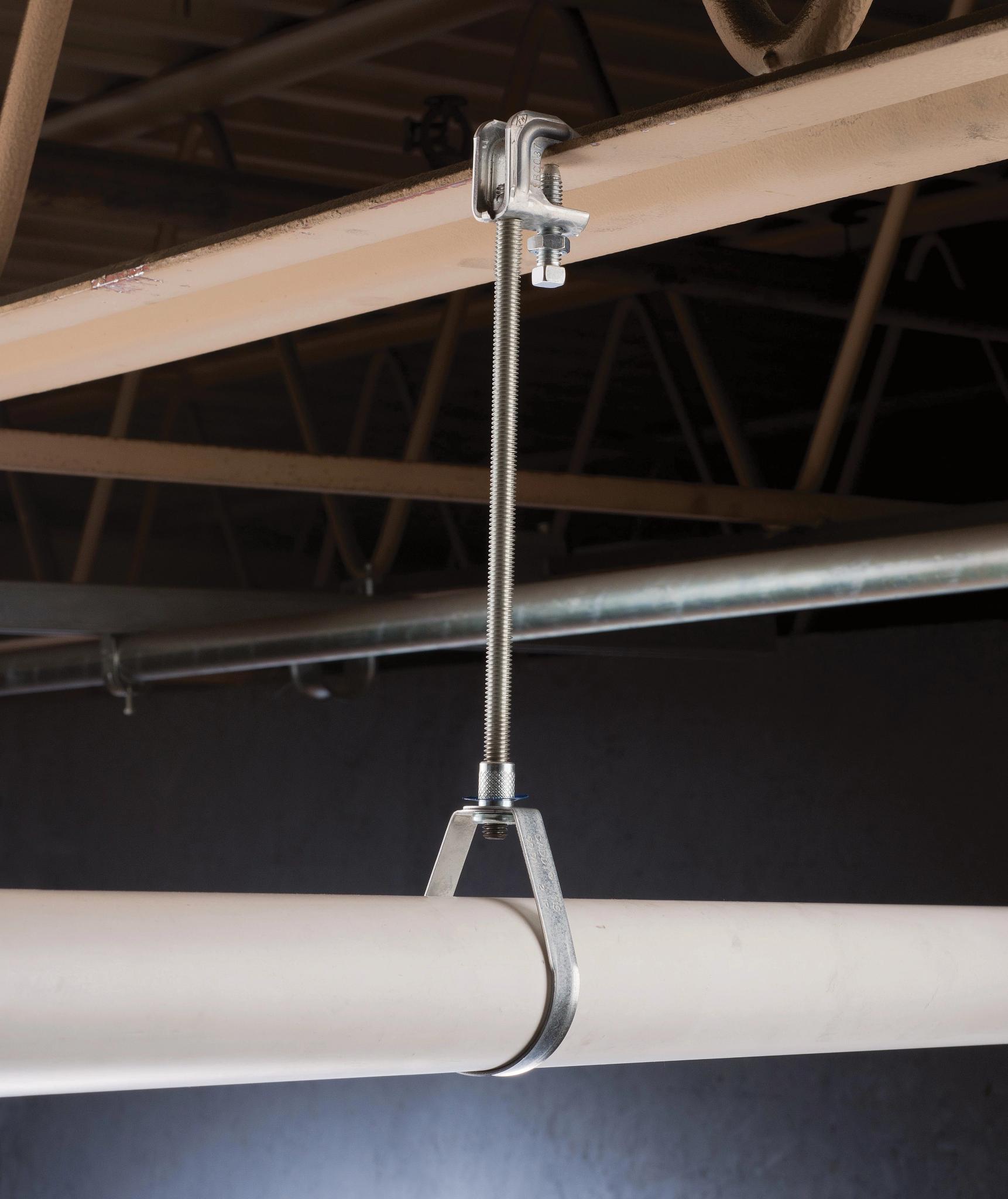

The 115 Standard Duty Loop Hanger is ideal for suspending stationary, non-insulated pipe lines, including CPVC pipes, in fire sprinkler systems. A knurled insert nut helps simplify vertical adjustments and flared edges on the base (1/2" to 4" sizes) help protect pipes from coming into contact with any sharp edges of the hanger.
nVent CADDY Loop Hanger, Standard Duty Swivel, Series: 115, 1-1/4 in Pipe, 3/8 in Rod, 300 lb, For Use With: Suspension of Stationary Non-Insulated Pipe Line, 1.66 in OD, Steel, Pre-Galvanized, 3-9/16 in H

Specifications

 Application Fire Sprinkler, HVAC, Plumbing and Refrigeration Applications
 Brand Name nVent CADDY
 Dimensions 3-9/16 in H
 Finish Pre-Galvanized
 Load Capacity 300 lb
 Manufacturer Part Number 1150125EG
 Material Steel
 PART NUMBER KEYWORDS 1150125EG ; 14846836 ; 782856417286 ; 78285641728
 Pipe Size 1-1/4 in
 Rod Size 3/8 in
 Series 115
 Specifications 1.66 in OD
 Standards/Approvals NFPA Certified|cULus Listed|UL Listed|FM Approved|Federal Specification WW-H-171 Type 10|MSS SP-58 Type 10|RoHS Compliant
 Suitable For Use With Suspension of Stationary Non-Insulated Pipe Line
 Type Standard Duty Swivel

Features

▪ Flared edges help prevent any sharp surfaces from coming into contact with the pipe (1/2 in to 4 in sizes)
▪ Retained insert nut helps ensure the loop hanger and insert nut stay together
