ABB
  • 10RC-38 T&B RING TERM VINYL INSUL 12-10AWG YELLOW COPPER TIN PLATED
  • 10RC-38 T&B RING TERM VINYL INSUL 12-10AWG YELLOW COPPER TIN PLATED
  • 10RC-38 T&B RING TERM VINYL INSUL 12-10AWG YELLOW COPPER TIN PLATED
  • 10RC-38 T&B RING TERM VINYL INSUL 12-10AWG YELLOW COPPER TIN PLATED
  • 10RC-38 T&B RING TERM VINYL INSUL 12-10AWG YELLOW COPPER TIN PLATED

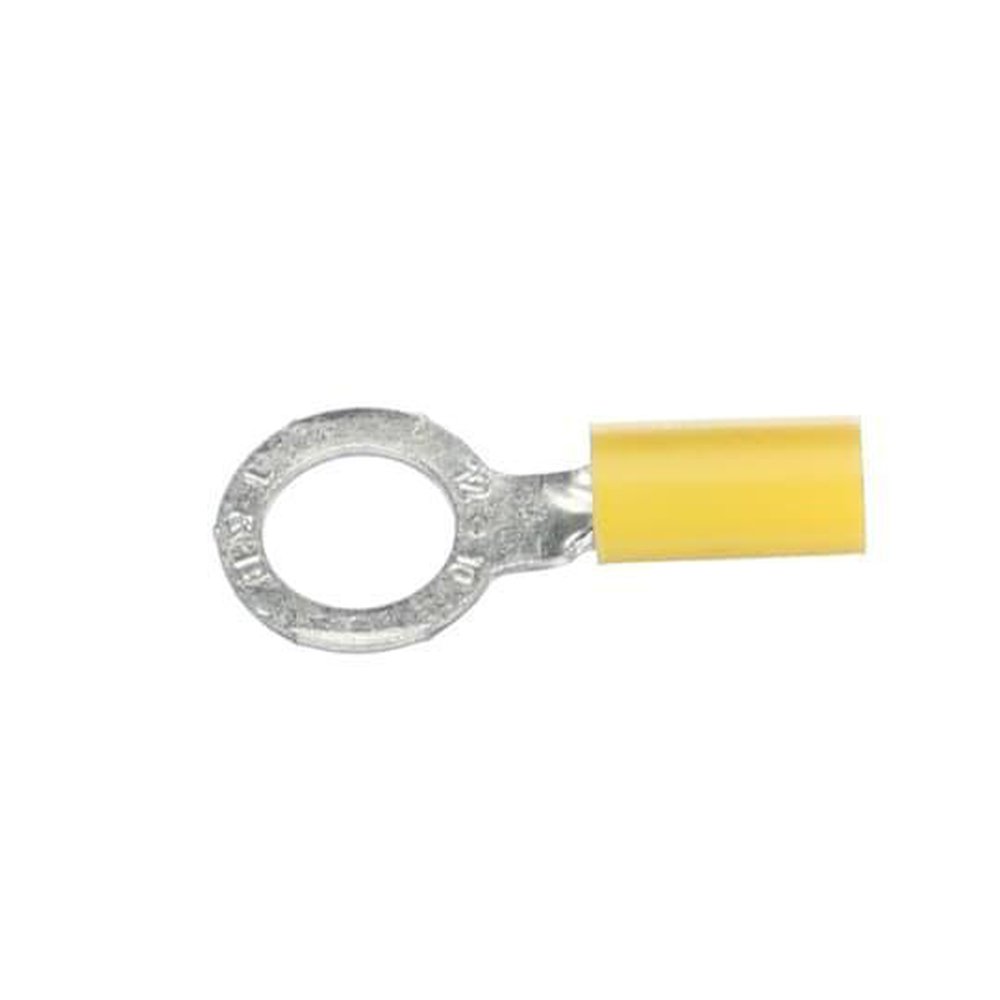

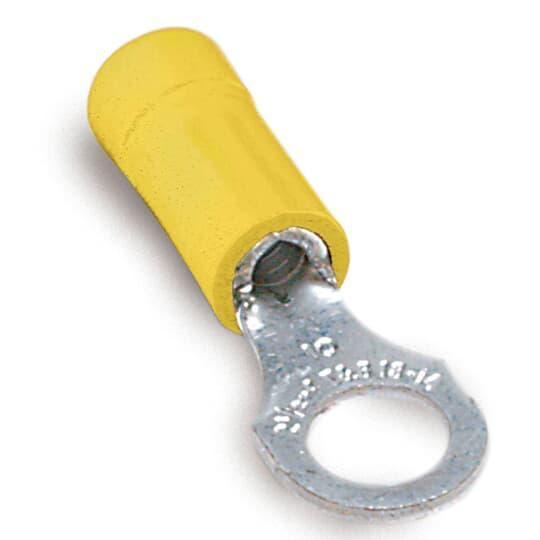

Description: Sta-Kon® Ring Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, 3/8 in Stud, 1.29 in Length, Brazed Seam Barrel, Ring Tongue, 0.5 in W x 0.04 in THK Tongue, 600 V AC, 0.21 in Dia Maximum Insulation, 0.44 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Yellow

Manufacturer PN: 10RC-38

UPC:  78621080050

Kendall Electric Inc PN: 58130

Invoice Description:

10RC-38 T&B RING TERM VINYL INSUL 12-10AWG YELLOW COPPER TIN PLATED


SPEC SHEET

How Can We Make This Page Better?

Sta-Kon® 10RC-38 RC Series Insulated Ring Terminal, 12 to 10 AWG Conductor, 1.29 in L, Brazed Seam Barrel, Copper, Yellow

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Sta-Kon® wire terminals offer more copper and a wider funnel to assure premium connection with less work in a line that includes insulated and non-insulated terminals, splices, wire joints, disconnects, ferrules, heat shrinkable terminals, splices and disconnects.
Sta-Kon® Ring Terminal, Insulated, Series: RC Series, 12 to 10 AWG Conductor, 3/8 in Stud, 1.29 in Length, Brazed Seam Barrel, Ring Tongue, 0.5 in W x 0.04 in THK Tongue, 600 V AC, 0.21 in Dia Maximum Insulation, 0.44 in Clearance, Vinyl Insulation, 105 deg C, Copper, Tin Coated, Yellow

Specifications

 Application For WT145C, WT2000, WT112M, ERG4001 and ERG4003 tools
 Brand Name Sta-Kon®
 Color Yellow
 Conductor Size 12 to 10 AWG
 Finish Tin Coated
 Length 1.29 in
 Manufacturer Part Number 10RC-38
 Material Copper
 PART NUMBER KEYWORDS 10RC-38 ; 10RC38 ; 7TAI029460R0007 ; 10763511 ; 786210800509 ; 78621080050 ; 00786210800509 ; 5414363136279
 Series RC Series
 Specifications 0.21 in Dia Maximum Insulation, 0.44 in Clearance, Vinyl Insulation
 Standards/Approvals UL E9809 / UL E9809
 Stud Size 3/8 in
 Temperature Rating 105 deg C
 Tongue Size 0.5 in W x 0.04 in THK
 Tongue Type Ring
 Type Insulated
 Voltage Rating 600 V AC

Features

▪ Terminals are Self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire flex point
▪ Brazed seam barrel that is serrated to obtain high pullout value
▪ Made of copper and has electro-tin plating for corrosion-resistance
▪ 50 pieces/pack
