United Technologies

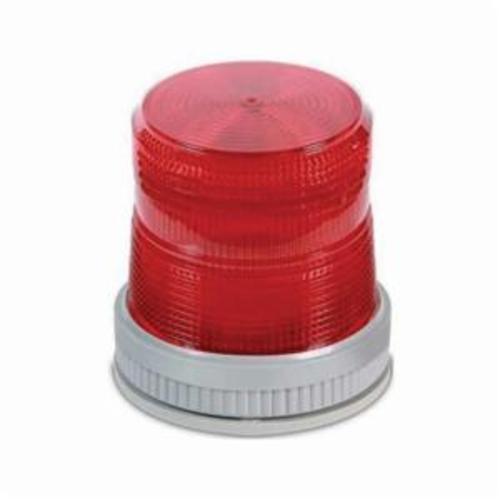

105STR-G1 EDWARDS STROBE 24V DC RED

Mouse over image to zoom, click to enlarge

  • 105STR-G1 EDWARDS STROBE 24V DC RED
  • 105STR-G1 EDWARDS STROBE 24V DC RED

Description: Edwards Signaling™ Flashing Strobe Beacon, Heavy Duty, Series: 105, 24 V DC, 0.3 A, 4-1/2 in Dia, Xenon Lamp, Red Lens, 65 fpm Flash, 300000 cd, 3000 hr Average Life, Base Mount, NEMA 4X, Thermoplastic Polyester Resin Base/Polycarbonate Lens Housing, 4-5/8 in H

Manufacturer PN: 105STR-G1

UPC:  78264026715

Kendall Electric Inc PN: 2876063

Invoice Description:

105STR-G1 EDWARDS STROBE 24V DC RED


SPEC SHEET

▸ See All in Explosion-Proof Strobe-Flashing Lights


How Can We Make This Page Better?

Edwards Signaling™ 105STR-G1 105 Heavy Duty Flashing Strobe Beacon, 24 V DC, Xenon Lamp, 4-1/2 in Dia, Base Mount, Red Lens

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Edwards 105 Series Xenon strobe beacons are Heavy duty visual signals suitable for use in indoor and outdoor applications where a corrosion resistant NEMA Type 4X enclosure is required. Base material is gray, manufactured from glass reinforced thermoplastic polyester resin and features brass hardware. The double fresnel lens is made of shatter resistant polycarbonate. The 105DHISTC-FJ high intensity strobe is designed for use in compatible fire alarm system and other applications requiring electrical supervision of signaling circuit field wiring.
Edwards Signaling™ Flashing Strobe Beacon, Heavy Duty, Series: 105, 24 V DC, 0.3 A, 4-1/2 in Dia, Xenon Lamp, Red Lens, 65 fpm Flash, 300000 cd, 3000 hr Average Life, Base Mount, NEMA 4X, Thermoplastic Polyester Resin Base/Polycarbonate Lens Housing, 4-5/8 in H

Specifications

 Amperage Rating 0.3 A
 Application Indoor/Outdoor and Marine Applications
 Average Life 3000 hr
 Brand Name Edwards Signaling™
 Dimensions 4-5/8 in H
 Flash Rate 65 fpm
 Housing Material Thermoplastic Polyester Resin Base/Polycarbonate Lens
 Lamp Type Xenon
 Lens Color Red
 Light Output 300000 cd
 Manufacturer Part Number 105STR-G1
 Mounting Type Base
 NEMA Rating NEMA 4X
 PART NUMBER KEYWORDS 105STR-G1 ; 105STRG1 ; 782640267158 ; 78264026715 ; 00782640267158
 Series 105
 Standards/Approvals UL 1638/1604/1971|UL Listed Class I, Div 2, Groups A, B, C and D|Class II, Div 2, Groups F and G and Class III Locations|cUL Listed|ARRA Compliant|Buy American Act Compliant
 Type Heavy Duty
 Voltage Rating 24 V DC

Features

▪ Designed for use in division 2 applications
▪ Shatter resistant double fresnel polycarbonate lens
▪ Gray Rynite® (PET) base with brass hardware
▪ Corrosion resistant, steady-on incandescent
▪ Steady-on LED cluster, flashing incandescent, flashing LED cluster
▪ Glass reinforced thermoplastic polyester resin base
▪ Brass hardware
▪ Option for panel, conduit or wall mounting
▪ 3 Joule output
