Eaton

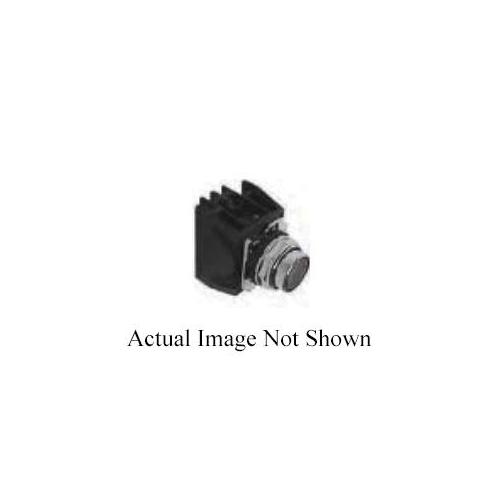

10250T707G CH GREEN FLUSH PB 2NO-2NC-CLASSI/DIV 2

Mouse over image to zoom, click to enlarge

  • 10250T707G CH GREEN FLUSH PB 2NO-2NC-CLASSI/DIV 2
  • 10250T707G CH GREEN FLUSH PB 2NO-2NC-CLASSI/DIV 2

Description: EATON Non-Illuminated Pushbutton, Assembled Heavy Duty Oiltight, Series: 10250T, 30.5 mm Size, 2NO-2NC Contact Configuration, Momentary Contact Mode, 10 A at 600 V AC, 2.5 A at 250 V DC Contact, Legend: BLANK, Bezel/Housing: Polished Chrome Bezel, Flush Button Actuator, Saddle Clamp Terminal, NEMA 3/3R/4/4X/12/13 Enclosure, Flush Mounting, Die-Cast Zinc, Polished Chrome, Green, Environmental Conditions: 32 to 140 deg F Operating Temperature/-40 to 176 deg F Storage Temperature/95% Relative Humidity at 60 deg C

Manufacturer PN: 10250T707G

UPC:  78211450446

Kendall Electric Inc PN: 4425730

Invoice Description:

10250T707G CH GREEN FLUSH PB 2NO-2NC-CLASSI/DIV 2


SPEC SHEET

▸ See All in Explosionproof Non-Illumin. Pushbuttons


How Can We Make This Page Better?

EATON 10250T707G Assembled Heavy Duty Oiltight Non-Illuminated Pushbutton, 30.5 mm, 2NO-2NC Contact, Green

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
EATON Non-Illuminated Pushbutton, Assembled Heavy Duty Oiltight, Series: 10250T, 30.5 mm Size, 2NO-2NC Contact Configuration, Momentary Contact Mode, 10 A at 600 V AC, 2.5 A at 250 V DC Contact, Legend: BLANK, Bezel/Housing: Polished Chrome Bezel, Flush Button Actuator, Saddle Clamp Terminal, NEMA 3/3R/4/4X/12/13 Enclosure, Flush Mounting, Die-Cast Zinc, Polished Chrome, Green, Environmental Conditions: 32 to 140 deg F Operating Temperature/-40 to 176 deg F Storage Temperature/95% Relative Humidity at 60 deg C

Specifications

 Actuator Flush Button
 Application Stationary Machinery, Equipment Outside Factory and Other Applications
 Bezel Housing Polished Chrome Bezel
 Brand Name EATON
 Color Green
 Contact Configuration 2NO-2NC
 Contact Rating 10 A at 600 V AC, 2.5 A at 250 V DC
 Enclosure NEMA 3/3R/4/4X/12/13
 Environmental Conditions 32 to 140 deg F Operating Temperature/-40 to 176 deg F Storage Temperature/95% Relative Humidity at 60 deg C
 Finish Polished Chrome
 Legend BLANK
 Manufacturer Part Number 10250T707G
 Material Die-Cast Zinc
 Mounting Type Flush
 Series 10250T
 Size 30.5 mm
 Standards/Approvals CSA C22.2 No. 14|CSA C22.2 No. 213-M1987|CSA Certified File No. LR68551|CSA Certified File No. LR20713|NEC Class I Division 2 Groups B/C/D|UL 508|UL 1604|UL Listed File No. E131568|UL Listed File No. E10323
 Terminal Type Saddle Clamp
 Type Assembled Heavy Duty Oiltight
 Video Links

Features

▪ Eaton contact blocks feature enclosed silver contacts with pointed reliability nibs
▪ To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
▪ Durable chrome finish
▪ Rugged 1-piece metal body
▪ Self-grounding operators
▪ Controlled compression sealing gasket
▪ Reliability nibs on contact blocks
▪ Largest breadth of offering
