Eaton
10250T6392 CH ILL SEL SW 3POS MAINTAINED CAM2 240V FV-NO CAP

Mouse over image to zoom, click to enlarge

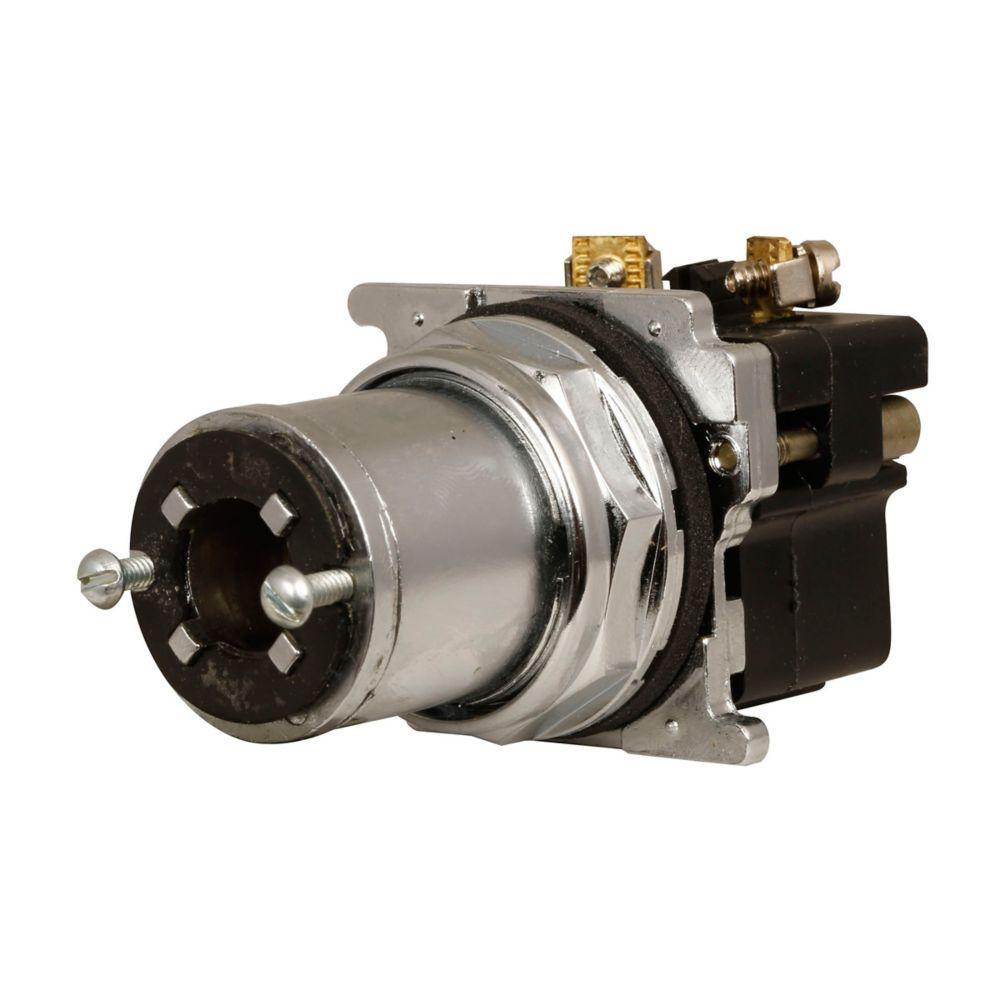

  • 10250T6392 CH ILL SEL SW 3POS MAINTAINED CAM2 240V FV-NO CAP

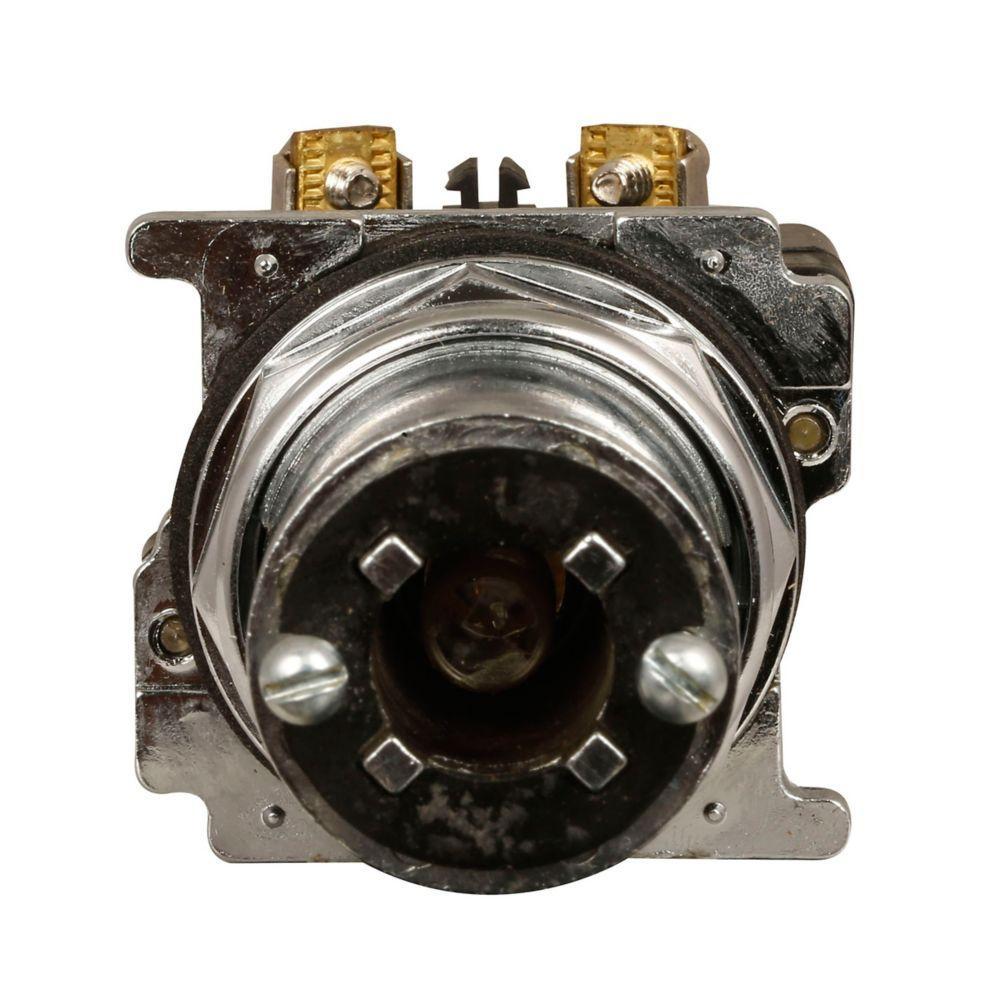

  • 10250T6392 CH ILL SEL SW 3POS MAINTAINED CAM2 240V FV-NO CAP
  • 10250T6392 CH ILL SEL SW 3POS MAINTAINED CAM2 240V FV-NO CAP

Description: EATON Selector Switch Operator, Full Voltage Heavy Duty Oil/Watertight Illuminated, Series: 10250T, 30.5 mm Size, Maintained Contact Mode, 3 Positions, 60 deg Left Center/Right Throw, Cam Code: 2, Incandescent Lamp, 240 V AC/DC, NEMA 1/2/3/3R/4/4X/12/13/IP65 Enclosure, Bezel/Housing: Polished Chrome, 1 to 150 deg F, Die Cast Zinc

Manufacturer PN: 10250T6392

UPC:  78211345852

Kendall Electric Inc PN: 4086432

Invoice Description:

10250T6392 CH ILL SEL SW 3POS MAINTAINED CAM2 240V FV-NO CAP


SPEC SHEET

▸ See All in Illuminated Selector Switch Operators


How Can We Make This Page Better?

EATON 10250T6392 Full Voltage Heavy Duty Oil/Watertight Illuminated Selector Switch Operator, 30.5 mm, 3 Positions

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
EATON Selector Switch Operator, Full Voltage Heavy Duty Oil/Watertight Illuminated, Series: 10250T, 30.5 mm Size, Maintained Contact Mode, 3 Positions, 60 deg Left Center/Right Throw, Cam Code: 2, Incandescent Lamp, 240 V AC/DC, NEMA 1/2/3/3R/4/4X/12/13/IP65 Enclosure, Bezel/Housing: Polished Chrome, 1 to 150 deg F, Die Cast Zinc

Specifications

 Bezel Housing Polished Chrome
 Brand Name EATON
 Cam Code 2
 Enclosure NEMA 1/2/3/3R/4/4X/12/13/IP65
 Lamp Type Incandescent
 Manufacturer Part Number 10250T6392
 Material Die Cast Zinc
 Number of Positions 3
 PART NUMBER KEYWORDS 10250T6392 ; 7326586 ; 782113458526 ; 78211345852 ; 00782113458526
 Series 10250T
 Size 30.5 mm
 Standards/Approvals UL Listed,CSA Certified,CE Marked
 Temperature Rating 1 to 150 deg F
 Throw 60 deg Left Center/Right
 Type Full Voltage Heavy Duty Oil/Watertight Illuminated
 Video Links
 Voltage Rating 240 V AC/DC

Features

▪ Without knob/lever/cap
▪ Heavy duty die cast zinc construction
▪ Enclosed silver contacts with reliability nibs
▪ Diaphragm seals with drainage holes
▪ Grounding nibs on the operator casing
