Eaton

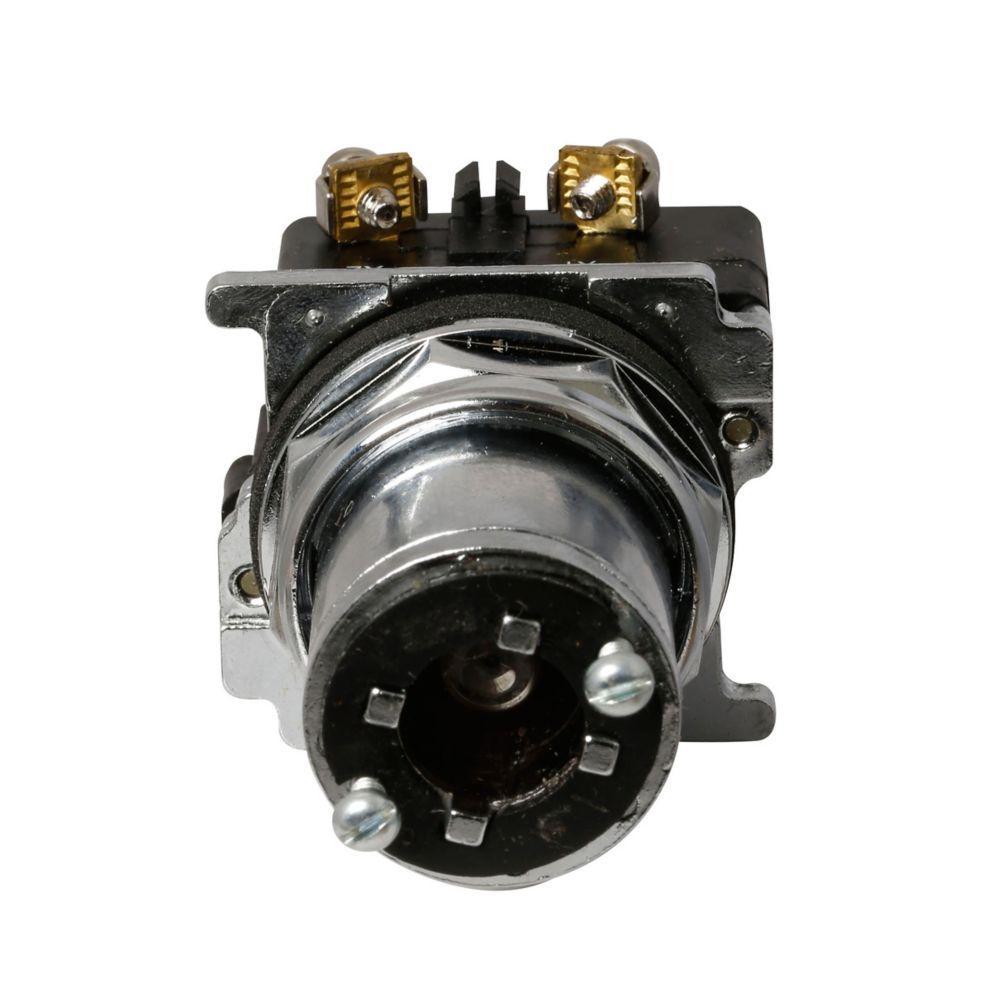

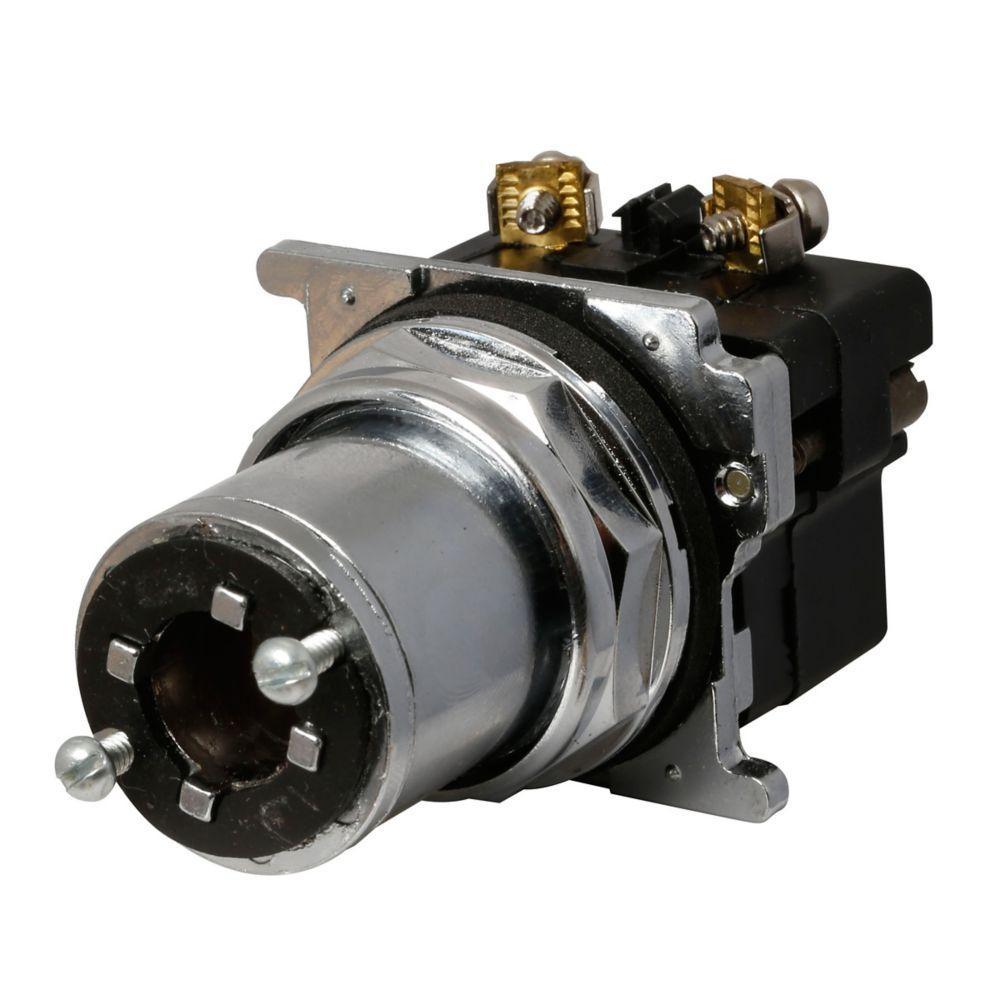

10250T6361 CH ILL SEL SW 2POS MAINTAINED CAM1 120V FV-NO CAP

Mouse over image to zoom, click to enlarge

  • 10250T6361 CH ILL SEL SW 2POS MAINTAINED CAM1 120V FV-NO CAP
  • 10250T6361 CH ILL SEL SW 2POS MAINTAINED CAM1 120V FV-NO CAP
  • 10250T6361 CH ILL SEL SW 2POS MAINTAINED CAM1 120V FV-NO CAP

Description: EATON Selector Switch Operator, Heavy Duty Oiltight/Watertight Illuminated, Series: 10250T, 30.5 mm Size, Maintained Contact Mode, 2 Positions, 60 deg Throw, Cam Code: 1, Incandescent Lamp, 120 V AC/DC, NEMA 3/3R/4/4X/12/13/IP66 Enclosure, Bezel/Housing: Metal, Die Cast Zinc, Polished Chrome

Manufacturer PN: 10250T6361

UPC:  78211336165

Kendall Electric Inc PN: 2463523

Invoice Description:

10250T6361 CH ILL SEL SW 2POS MAINTAINED CAM1 120V FV-NO CAP


SPEC SHEET

▸ See All in Illuminated Selector Switch Operators


How Can We Make This Page Better?

EATON 10250T6361 Heavy Duty Oiltight/Watertight Illuminated Selector Switch Operator, 30.5 mm, 2 Positions

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
EATON Selector Switch Operator, Heavy Duty Oiltight/Watertight Illuminated, Series: 10250T, 30.5 mm Size, Maintained Contact Mode, 2 Positions, 60 deg Throw, Cam Code: 1, Incandescent Lamp, 120 V AC/DC, NEMA 3/3R/4/4X/12/13/IP66 Enclosure, Bezel/Housing: Metal, Die Cast Zinc, Polished Chrome

Specifications

 Application Automation and Logic Control Equipment Applications
 Bezel Housing Metal
 Brand Name EATON
 Cam Code 1
 Enclosure NEMA 3/3R/4/4X/12/13/IP66
 Finish Polished Chrome
 Includes Screw
 Lamp Type Incandescent
 Manufacturer Part Number 10250T6361
 Material Die Cast Zinc
 Number of Positions 2
 PART NUMBER KEYWORDS 10250T6361 ; 7316990 ; 782113361659 ; 78211336165 ; 00782113361659
 Series 10250T
 Size 30.5 mm
 Standards/Approvals CSA Certified,UL Listed,CE Marked
 Throw 60 deg
 Type Heavy Duty Oiltight/Watertight Illuminated
 Video Links
 Voltage Rating 120 V AC/DC

Features

▪ Full voltage light unit
▪ Without cap

Resources

 Catalog Page
 Product Data Sheet
