Eaton

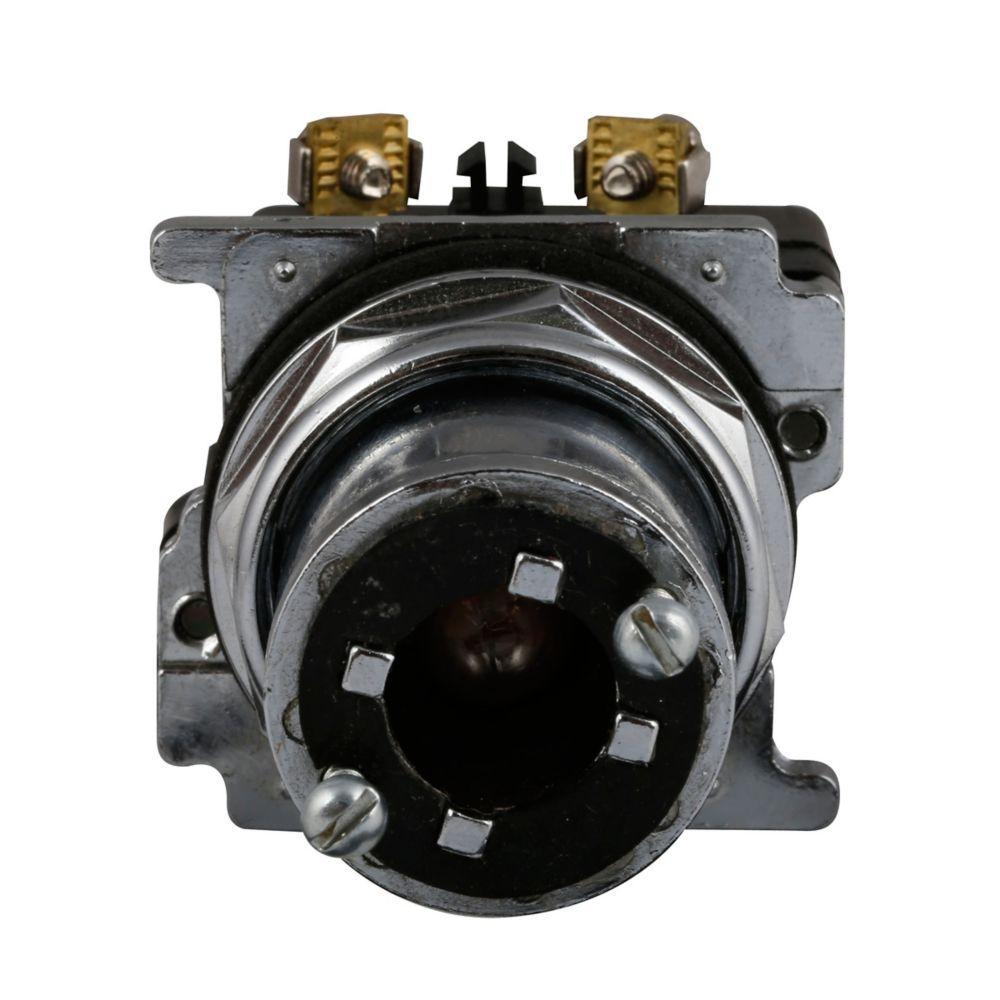

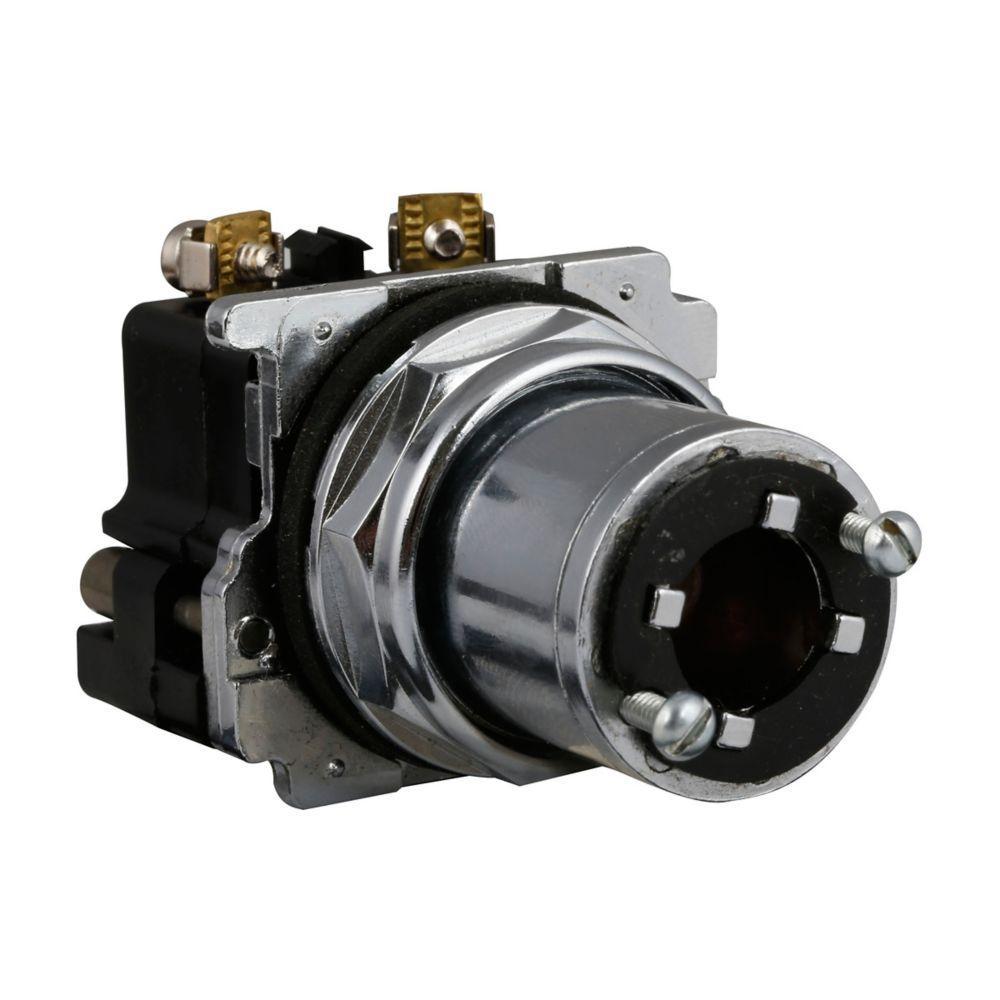

10250T6203 CH ILL SEL SW 3POS SPRING RETURN RT CAM3 120V XFRMR-NO CAP

Mouse over image to zoom, click to enlarge

  • 10250T6203 CH ILL SEL SW 3POS SPRING RETURN RT CAM3 120V XFRMR-NO CAP
  • 10250T6203 CH ILL SEL SW 3POS SPRING RETURN RT CAM3 120V XFRMR-NO CAP
  • 10250T6203 CH ILL SEL SW 3POS SPRING RETURN RT CAM3 120V XFRMR-NO CAP

Description: EATON Selector Switch Operator, Heavy Duty Oiltight/Watertight Pushbutton Illuminated, Series: 10250T, 30.5 mm Size, Maintained/Momentary Contact Mode, 3 Positions, 60 deg Throw, Cam Code: 3, Incandescent Lamp, 120 V AC, NEMA 3/3R/4/4X/12/13 Enclosure, Bezel/Housing: Metal, Die Cast Zinc, Polished Chrome

Manufacturer PN: 10250T6203

UPC:  78211334752

Kendall Electric Inc PN: 3809720

Invoice Description:

10250T6203 CH ILL SEL SW 3POS SPRING RETURN RT CAM3 120V XFRMR-NO CAP


SPEC SHEET

▸ See All in Illuminated Selector Switch Operators


How Can We Make This Page Better?

EATON 10250T6203 Heavy Duty Oiltight/Watertight Pushbutton Illuminated Selector Switch Operator, 30.5 mm, 3 Positions

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
EATON Selector Switch Operator, Heavy Duty Oiltight/Watertight Pushbutton Illuminated, Series: 10250T, 30.5 mm Size, Maintained/Momentary Contact Mode, 3 Positions, 60 deg Throw, Cam Code: 3, Incandescent Lamp, 120 V AC, NEMA 3/3R/4/4X/12/13 Enclosure, Bezel/Housing: Metal, Die Cast Zinc, Polished Chrome

Specifications

 Bezel Housing Metal
 Brand Name EATON
 Cam Code 3
 Enclosure NEMA 3/3R/4/4X/12/13
 Finish Polished Chrome
 Lamp Type Incandescent
 Manufacturer Part Number 10250T6203
 Material Die Cast Zinc
 Number of Positions 3
 PART NUMBER KEYWORDS 10250T6203 ; 7315357 ; 782113347523 ; 78211334752 ; 00782113347523
 Series 10250T
 Size 30.5 mm
 Standards/Approvals UL Listed,CSA Certified,CE Marked
 Throw 60 deg
 Type Heavy Duty Oiltight/Watertight Pushbutton Illuminated
 Video Links
 Voltage Rating 120 V AC

Features

▪ 50/60 Hz transformer frequency
▪ Transformer light unit type
▪ Without cap
▪ 3.4 in L x 2.4 in W x 2.1 in H

Resources

 Catalog Page
 Product Data Sheet
