Eaton

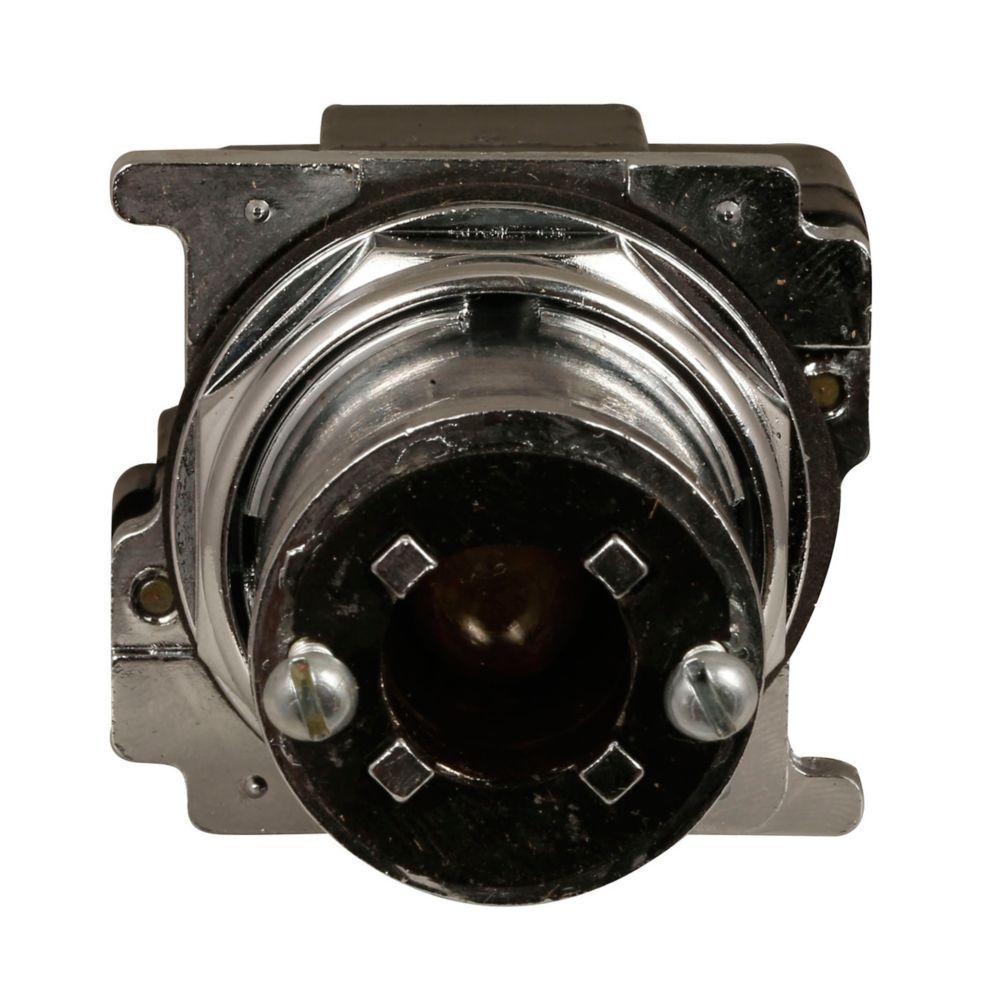

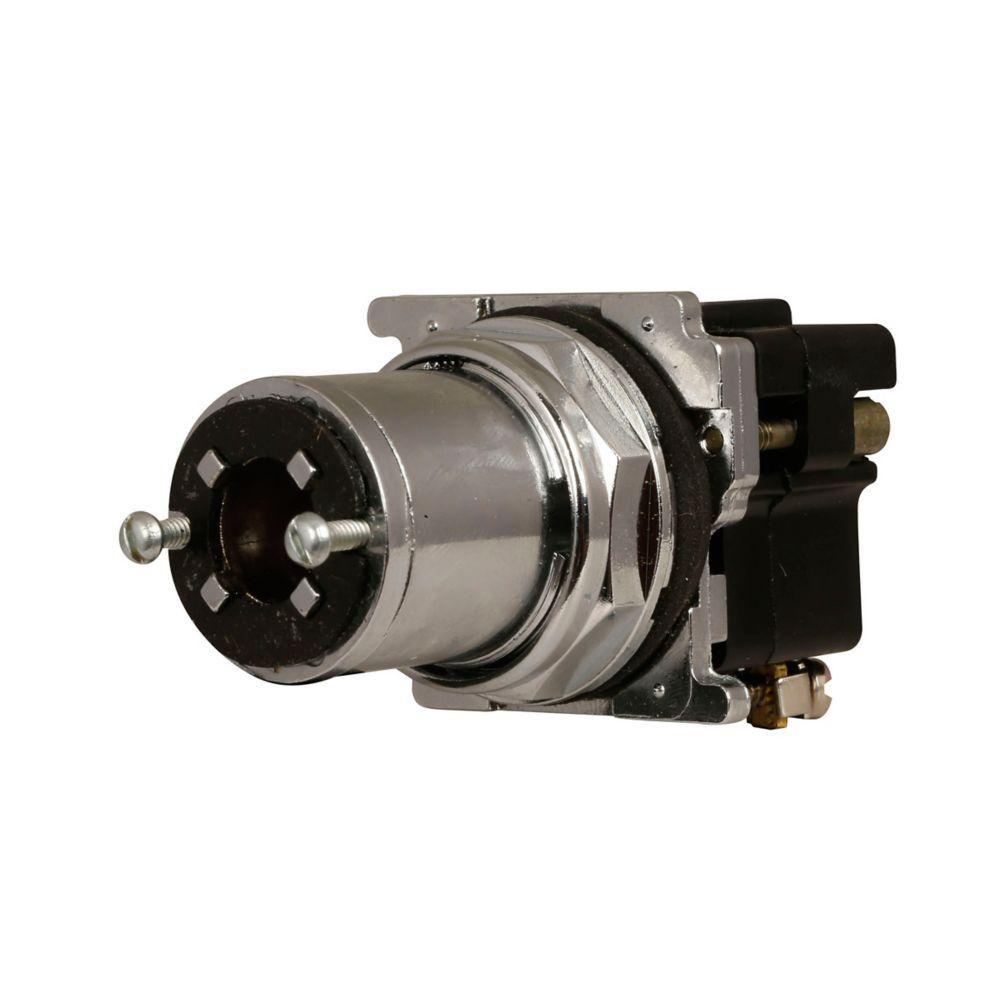

10250T6033 CH ILL SEL SW 3POS MAINTAINED CAM3 120V XFRMR-NO CAP

Mouse over image to zoom, click to enlarge

  • 10250T6033 CH ILL SEL SW 3POS MAINTAINED CAM3 120V XFRMR-NO CAP
  • 10250T6033 CH ILL SEL SW 3POS MAINTAINED CAM3 120V XFRMR-NO CAP
  • 10250T6033 CH ILL SEL SW 3POS MAINTAINED CAM3 120V XFRMR-NO CAP

Description: EATON Selector Switch Operator, Heavy Duty Oiltight/Watertight Pushbutton Illuminated, Series: 10250T, 30.5 mm Size, Maintained Contact Mode, 3 Positions, 60 deg Throw, Cam Code: 3, Incandescent Lamp, 120 V AC, NEMA 3/3R/4/4X/12/13 Enclosure, Bezel/Housing: Metal, Die Cast Zinc, Polished Chrome

Manufacturer PN: 10250T6033

UPC:  78211326607

Kendall Electric Inc PN: 2027972

Invoice Description:

10250T6033 CH ILL SEL SW 3POS MAINTAINED CAM3 120V XFRMR-NO CAP


SPEC SHEET

▸ See All in Illuminated Selector Switch Operators


How Can We Make This Page Better?

EATON 10250T6033 Heavy Duty Oiltight/Watertight Pushbutton Illuminated Selector Switch Operator, 30.5 mm, 3 Positions

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
EATON Selector Switch Operator, Heavy Duty Oiltight/Watertight Pushbutton Illuminated, Series: 10250T, 30.5 mm Size, Maintained Contact Mode, 3 Positions, 60 deg Throw, Cam Code: 3, Incandescent Lamp, 120 V AC, NEMA 3/3R/4/4X/12/13 Enclosure, Bezel/Housing: Metal, Die Cast Zinc, Polished Chrome

Specifications

 Application Automation and Logic Control Equipment Applications
 Bezel Housing Metal
 Brand Name EATON
 Cam Code 3
 Enclosure NEMA 3/3R/4/4X/12/13
 Finish Polished Chrome
 Lamp Type Incandescent
 Manufacturer Part Number 10250T6033
 Material Die Cast Zinc
 Number of Positions 3
 PART NUMBER KEYWORDS 10250T6033 ; 7354313 ; 782113266077 ; 78211326607 ; 00782113266077
 Series 10250T
 Size 30.5 mm
 Standards/Approvals CSA Certified,UL Listed,CE Marked
 Throw 60 deg
 Type Heavy Duty Oiltight/Watertight Pushbutton Illuminated
 Video Links
 Voltage Rating 120 V AC

Features

▪ Front of panel drainage holes
▪ Grounding nibs on the operator casing
▪ Solid thermosetting cathodic epoxy coating on E34
▪ Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments
▪ Grounding nibs bit through paint and other coatings to provide secure ground
▪ Earth terminal provides additional grounding point and allows for daisy chain grounding
▪ Transformer light unit type
▪ Without cap
▪ 3.4 in L x 2.4 in W x 2 in H

Resources

 Catalog Page
 Product Data Sheet
