Eaton

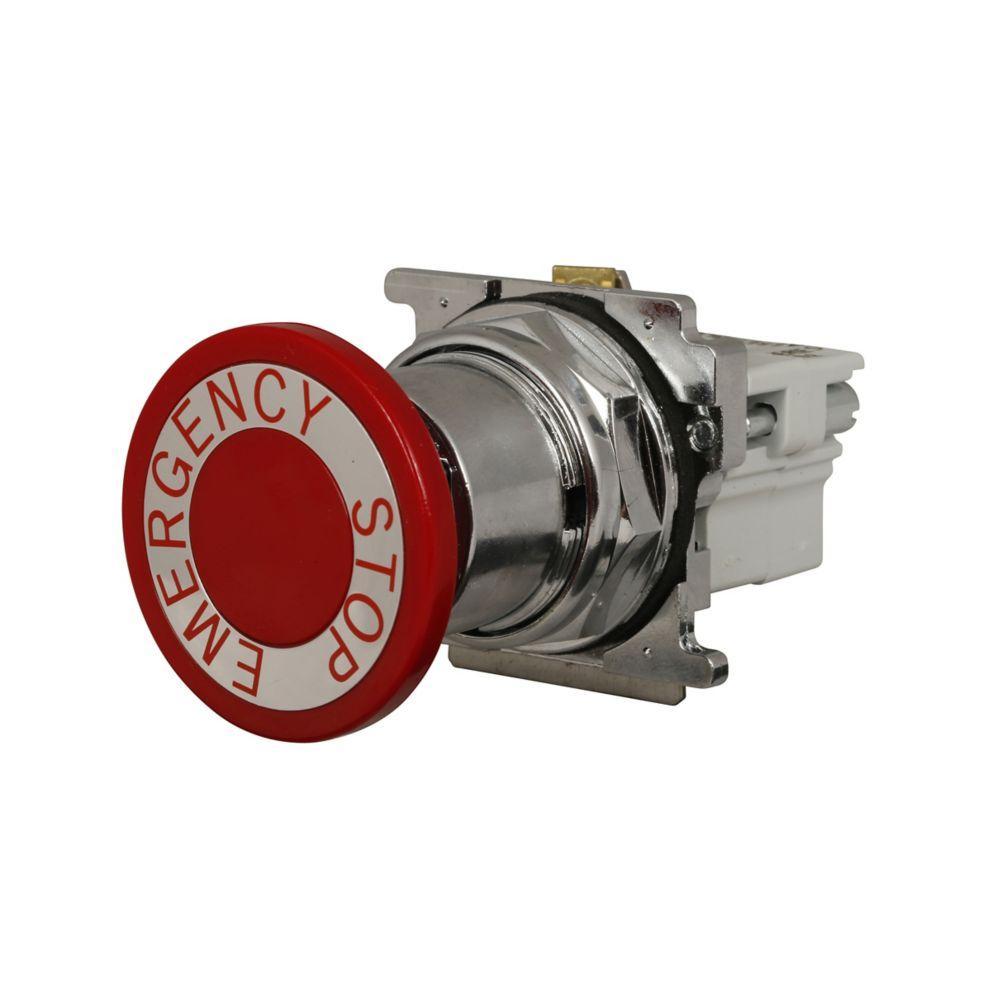

10250T5B63-71X CH 2-POS PUSH-PULL 40MM EMERGENCY STOP - 1 LONC

Mouse over image to zoom, click to enlarge

  • 10250T5B63-71X CH 2-POS PUSH-PULL 40MM EMERGENCY STOP - 1 LONC
  • 10250T5B63-71X CH 2-POS PUSH-PULL 40MM EMERGENCY STOP - 1 LONC

Description: EATON Non-Illuminated Push-Pull Unit, Assembled Heavy Duty, Series: 10250T, 40 mm Size, 1LONC Contact Configuration, Slow Make/Break Contact, Maintained Contact Mode, 10 A at 600 VAC Contact, Push-Pull Operator, 2 Positions, Legend: EMERGENCY STOP, Bezel/Housing: Polished Chrome Bezel, Standard Actuator, Screw Clamp Terminal, NEMA 1/2/3/3R/4/4X/12/13/IP65 Enclosure, Die-Cast Zinc, Polished Chrome, Red, Environmental Conditions: 1 to 150 deg F Operating Temperature, 95% Relative Humidity at 60 deg C

Manufacturer PN: 10250T5B63-71X

UPC:  78668536637

Kendall Electric Inc PN: 3884059

Invoice Description:

10250T5B63-71X CH 2-POS PUSH-PULL 40MM EMERGENCY STOP - 1 LONC


SPEC SHEET

▸ See All in Non-Illuminated Push-Pull Switches


How Can We Make This Page Better?

EATON 10250T5B63-71X Assembled Heavy Duty Non-Illuminated Push-Pull Unit, 40 mm, 1LONC Contact, Slow Make/Break Contact, Push-Pull Operator, Red

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
EATON Non-Illuminated Push-Pull Unit, Assembled Heavy Duty, Series: 10250T, 40 mm Size, 1LONC Contact Configuration, Slow Make/Break Contact, Maintained Contact Mode, 10 A at 600 VAC Contact, Push-Pull Operator, 2 Positions, Legend: EMERGENCY STOP, Bezel/Housing: Polished Chrome Bezel, Standard Actuator, Screw Clamp Terminal, NEMA 1/2/3/3R/4/4X/12/13/IP65 Enclosure, Die-Cast Zinc, Polished Chrome, Red, Environmental Conditions: 1 to 150 deg F Operating Temperature, 95% Relative Humidity at 60 deg C

Specifications

 Actuator Standard
 Application Stationary Machinery, Equipment Outside Factory and Other Applications
 Bezel Housing Polished Chrome Bezel
 Brand Name EATON
 Color Red
 Contact Configuration 1LONC
 Contact Rating 10 A at 600 VAC
 Contact Type Slow Make/Break
 Enclosure NEMA 1/2/3/3R/4/4X/12/13/IP65
 Environmental Conditions 1 to 150 deg F Operating Temperature, 95% Relative Humidity at 60 deg C
 Finish Polished Chrome
 Legend EMERGENCY STOP
 Manufacturer Part Number 10250T5B63-71X
 Material Die-Cast Zinc
 Number of Positions 2
 Series 10250T
 Size 40 mm
 Standards/Approvals CE Marking|CSA C22.2 No. 14|CSA Certified File No. LR68551|EN 60947-5-1|EN 60947-5-5|IEC 60947-5-5|UL 508|UL Listed File No. 131568
 Terminal Type Screw Clamp
 Type Assembled Heavy Duty
 Video Links

Features

▪ Enclosed silver contacts with reliability nibs
▪ Diaphragm seals with drainage holes
▪ Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
▪ Drainage holes prevent build-up of liquid inside the operator which can prevent operation in freezing environments
▪ Grounding nibs bit through paint and other coatings to provide secure ground
