Eaton

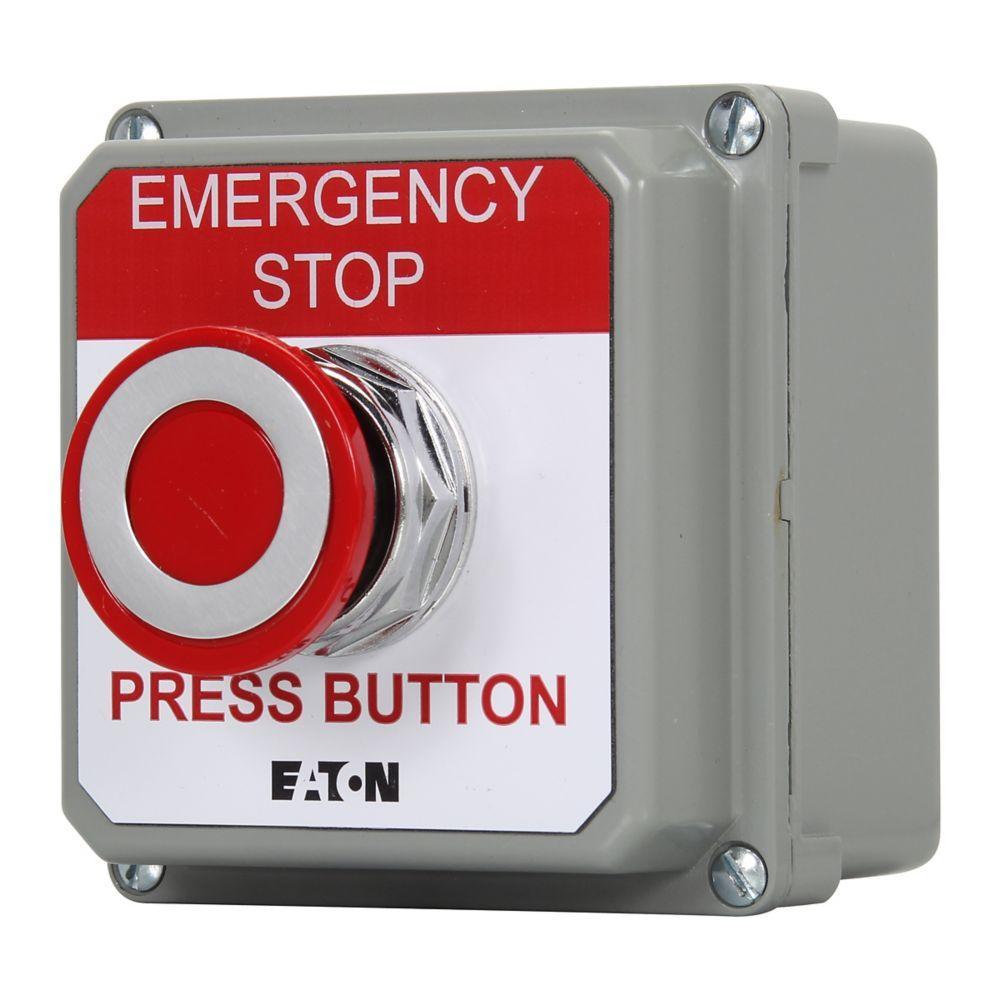

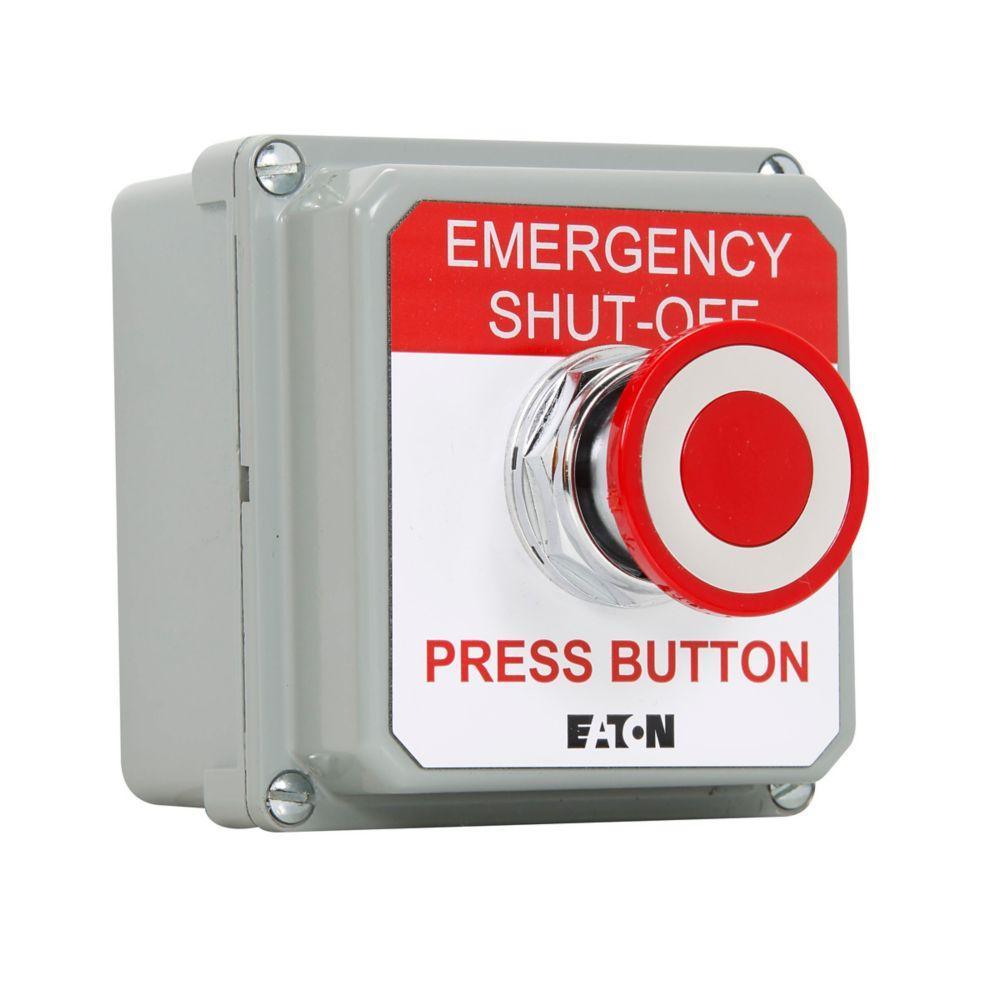

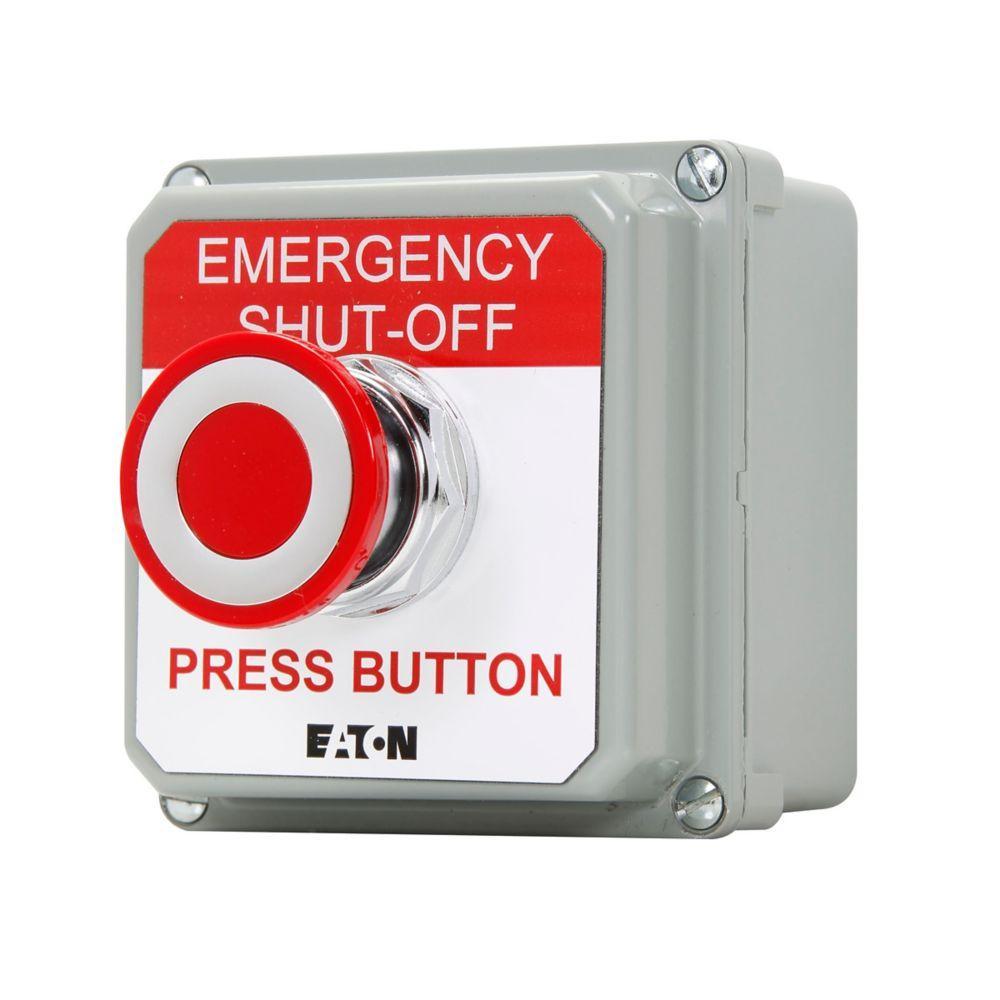

10250T5B62-S101 CH PRESS BUTTON STATION EMERG STOP - GRY 1NO/1NC CONTACT BLOCK

Mouse over image to zoom, click to enlarge

  • 10250T5B62-S101 CH PRESS BUTTON STATION EMERG STOP - GRY 1NO/1NC CONTACT BLOCK
  • 10250T5B62-S101 CH PRESS BUTTON STATION EMERG STOP - GRY 1NO/1NC CONTACT BLOCK
  • 10250T5B62-S101 CH PRESS BUTTON STATION EMERG STOP - GRY 1NO/1NC CONTACT BLOCK
  • 10250T5B62-S101 CH PRESS BUTTON STATION EMERG STOP - GRY 1NO/1NC CONTACT BLOCK

Description: EATON Pushbutton Control Station, Assembled Commercial, Series: 10250T, 1 Operators, 1NO-1NC Contact Configuration, Push-Pull Pushbutton Operator, Legend: EMERGENCY STOP, NEMA 4/4X/12/13 NEMA Rating, Die-cast Zinc, Gray, 3 in L x 3.88 in W x 4 in H Dimensions

Manufacturer PN: 10250T5B62-S101

UPC:  78668535744

Kendall Electric Inc PN: 3510793

Invoice Description:

10250T5B62-S101 CH PRESS BUTTON STATION EMERG STOP - GRY 1NO/1NC CONTACT BLOCK


SPEC SHEET

How Can We Make This Page Better?

EATON 10250T5B62-S101 Assembled Commercial Pushbutton Control Station, 1NO-1NC Contact, 1 Operators, NEMA 4/4X/12/13 NEMA Rating

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
EATON Pushbutton Control Station, Assembled Commercial, Series: 10250T, 1 Operators, 1NO-1NC Contact Configuration, Push-Pull Pushbutton Operator, Legend: EMERGENCY STOP, NEMA 4/4X/12/13 NEMA Rating, Die-cast Zinc, Gray, 3 in L x 3.88 in W x 4 in H Dimensions

Specifications

 Application Electrical Assemblies, Panels and EOEMs Applications
 Brand Name EATON
 Color Gray
 Contact Configuration 1NO-1NC
 Dimensions 3 in L x 3.88 in W x 4 in H
 Legend EMERGENCY STOP
 Manufacturer Part Number 10250T5B62-S101
 Material Die-cast Zinc
 NEMA Rating NEMA 4/4X/12/13
 Number of Operators 1
 PART NUMBER KEYWORDS 10250T5B62-S101 ; 10250T5B62S101 ; 12228443 ; 786685357447 ; 78668535744 ; 00786685357447
 Series 10250T
 Standards/Approvals CSA Certified,UL Listed,CE Marked,RoHS Compliant
 Type Assembled Commercial
 Video Links

Features

▪ Factory sealed contact blocks
▪ Enclosed silver contacts with reliability nibs
▪ Diaphragm seals with drainage holes
▪ Grounding nibs on the operator casing
▪ Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
▪ Drainage holes prevent build-up of liquid inside the operator which can prevent operation in freezing environments
▪ Grounding nibs bit through paint and other coatings to provide secure ground
▪ 30.5 mm operators
▪ Industrial grade
▪ Popular with industrial end users
