Eaton

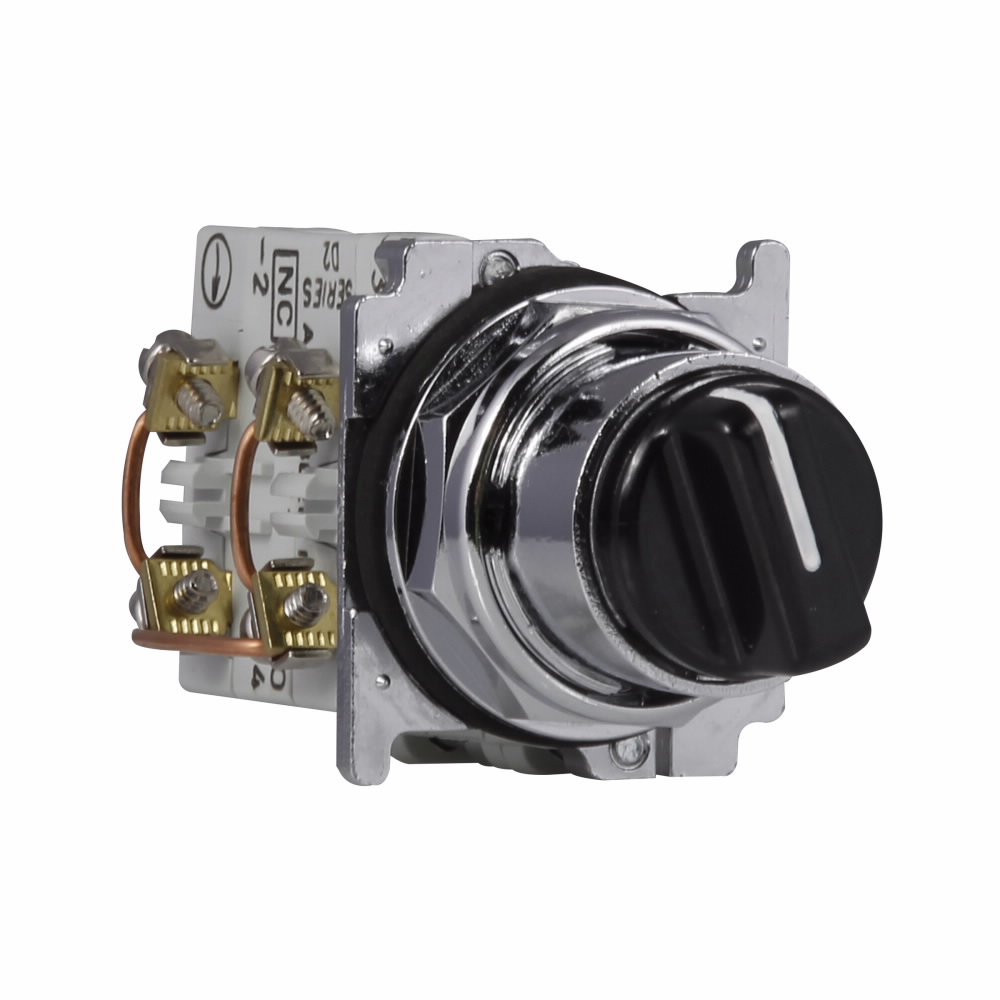

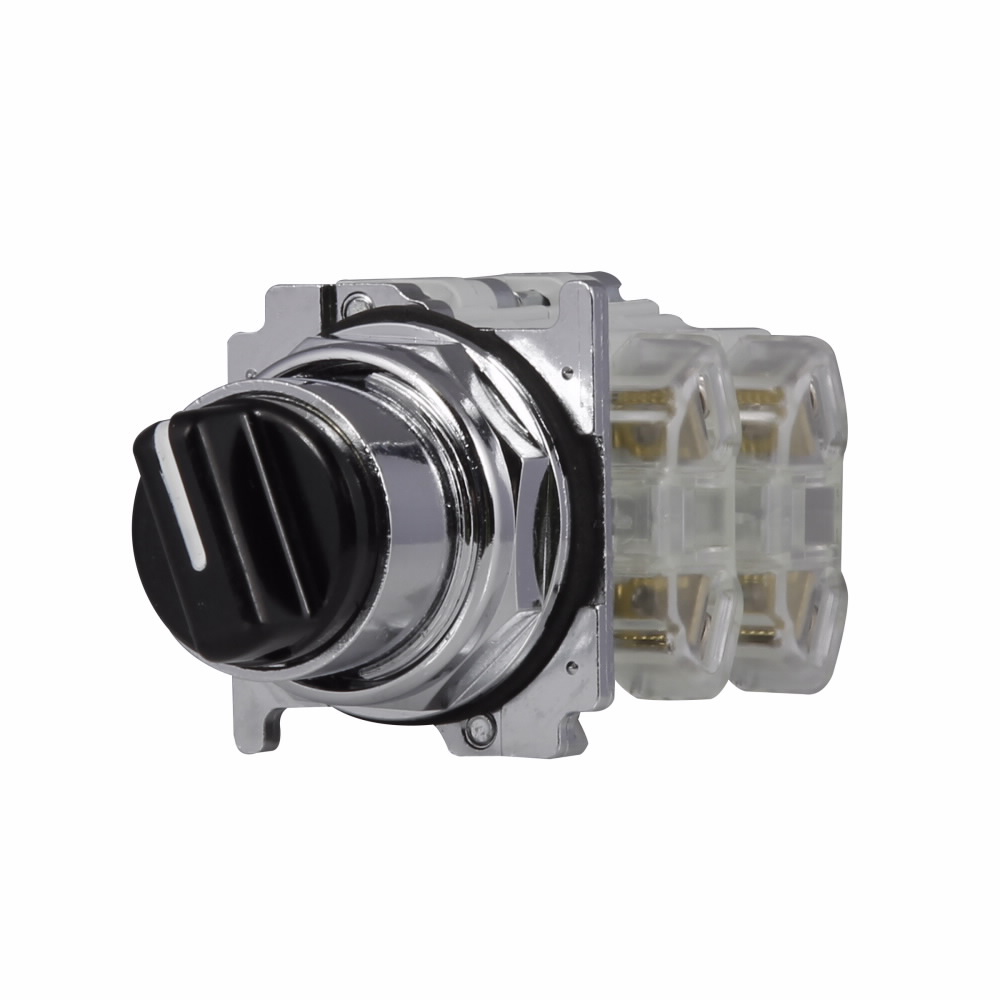

10250T46KB CH SEL SW 4P BK KNB 2NO 2NC

Mouse over image to zoom, click to enlarge

  • 10250T46KB CH SEL SW 4P BK KNB 2NO 2NC
  • 10250T46KB CH SEL SW 4P BK KNB 2NO 2NC
  • 10250T46KB CH SEL SW 4P BK KNB 2NO 2NC
  • 10250T46KB CH SEL SW 4P BK KNB 2NO 2NC

Description: EATON Non-Illuminated Selector Switch, Heavy Duty, Series: 10250T, 30.5 mm Size, 2NO-2NC Contact Configuration, Maintained Contact Mode, 4 Positions, 40 deg Throw, Bezel/Housing: Polished Chrome Metal, Knob Actuator, NEMA 3/3R/4/4X/12/13/IP65 Enclosure, Die Cast Zinc, Black

Manufacturer PN: 10250T46KB

UPC:  78211336517

Kendall Electric Inc PN: 2026906

Invoice Description:

10250T46KB CH SEL SW 4P BK KNB 2NO 2NC


SPEC SHEET

▸ See All in Non-Illuminated Selector Switches


How Can We Make This Page Better?

EATON 10250T46KB Heavy Duty Non-Illuminated Selector Switch, 30.5 mm, 2NO-2NC Contact, Black

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
EATON Non-Illuminated Selector Switch, Heavy Duty, Series: 10250T, 30.5 mm Size, 2NO-2NC Contact Configuration, Maintained Contact Mode, 4 Positions, 40 deg Throw, Bezel/Housing: Polished Chrome Metal, Knob Actuator, NEMA 3/3R/4/4X/12/13/IP65 Enclosure, Die Cast Zinc, Black

Specifications

 Actuator Knob
 Application Automation and Logic Control Equipment Applications
 Bezel Housing Polished Chrome Metal
 Brand Name EATON
 Color Black
 Contact Configuration 2NO-2NC
 Enclosure NEMA 3/3R/4/4X/12/13/IP65
 Manufacturer Part Number 10250T46KB
 Material Die Cast Zinc
 Number of Positions 4
 PART NUMBER KEYWORDS 10250T46KB ; 7317240 ; 782113365176 ; 78211336517 ; 00782113365176
 Series 10250T
 Size 30.5 mm
 Standards/Approvals UL Listed,CSA Certified,CE Marked
 Throw 40 deg
 Type Heavy Duty
 Video Links

Features

▪ Watertight and oiltight (indoor/outdoor) environmental conditions
▪ Enclosed silver contacts with reliability nibs
▪ Diaphragm seals with drainage holes
▪ Grounding nibs on the operator casing
▪ Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
▪ Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments
▪ Grounding nibs bit through paint and other coatings to provide secure ground
▪ Earth terminal provides additional grounding point and allows for daisy chain grounding
▪ Solid thermosetting cathodic epoxy coating on E34
▪ Front of panel drainage holes
