Eaton

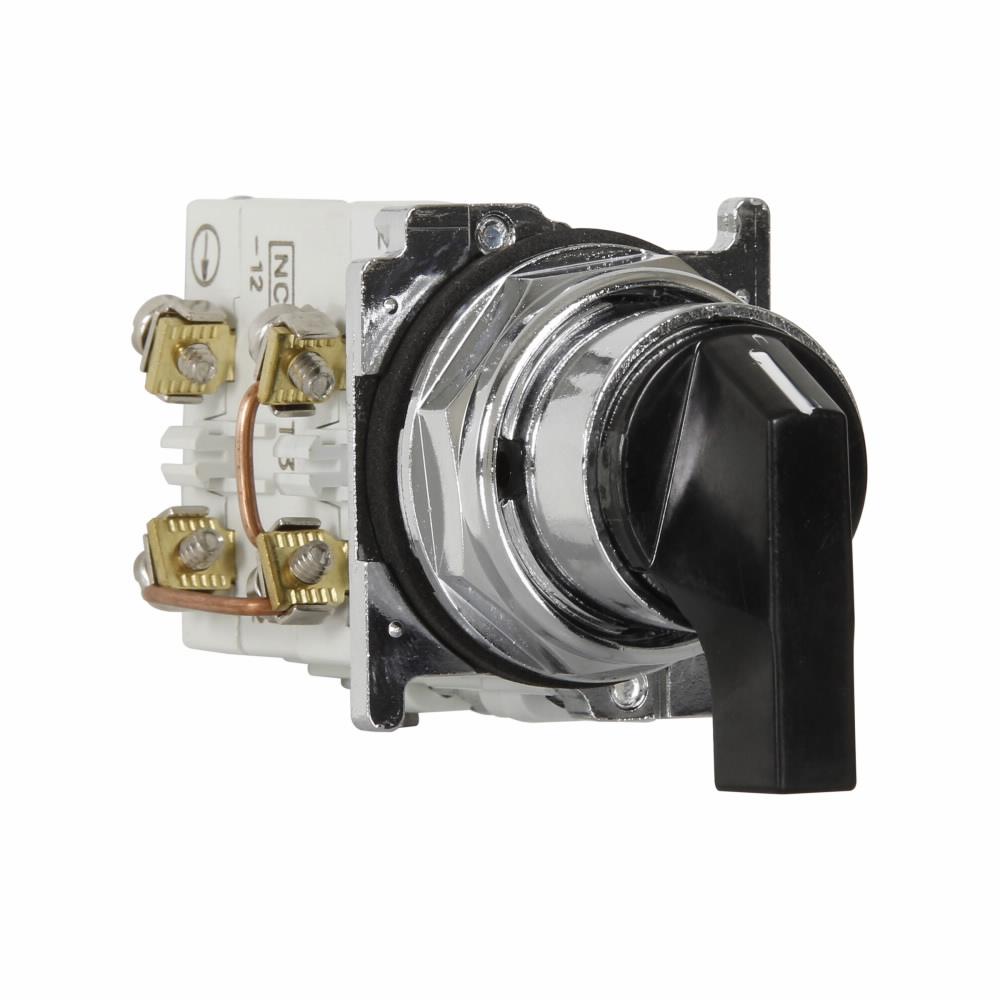

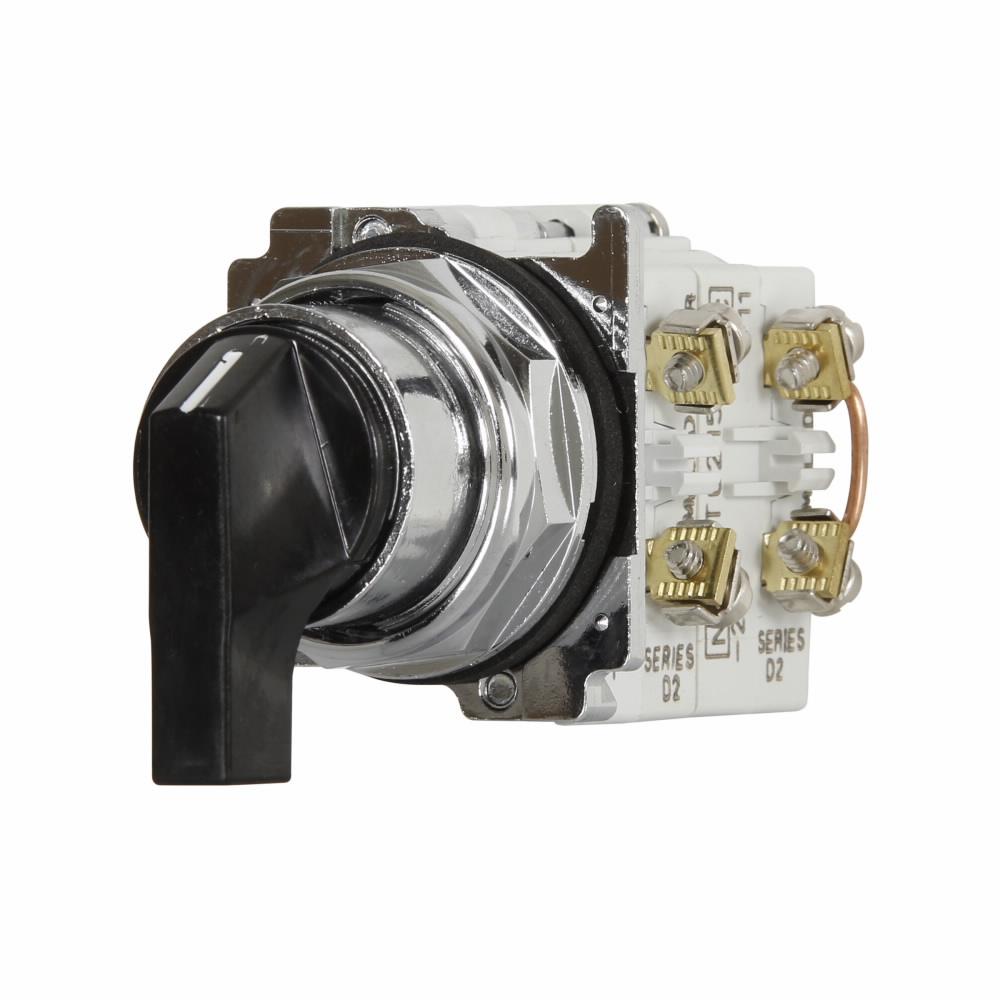

10250T22LB CH SEL SW 3P BK LVR 2NO 2NC

Mouse over image to zoom, click to enlarge

  • 10250T22LB CH SEL SW 3P BK LVR 2NO 2NC
  • 10250T22LB CH SEL SW 3P BK LVR 2NO 2NC
  • 10250T22LB CH SEL SW 3P BK LVR 2NO 2NC
  • 10250T22LB CH SEL SW 3P BK LVR 2NO 2NC

Description: EATON Non-Illuminated Selector Switch, Assembled Heavy Duty, Series: 10250T, 30.5 mm Size, 2NO-2NC Contact Configuration, Maintained Contact Mode, 3 Positions, 60 deg Throw, Lever Actuator, NEMA 3/3R/4/4X/12/13/IP65 Enclosure, Die Cast Zinc, Black

Manufacturer PN: 10250T22LB

UPC:  78211335761

Kendall Electric Inc PN: 2898755

Invoice Description:

10250T22LB CH SEL SW 3P BK LVR 2NO 2NC


SPEC SHEET

How Can We Make This Page Better?

EATON 10250T22LB Assembled Heavy Duty Non-Illuminated Selector Switch, 30.5 mm, 2NO-2NC Contact, Black

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
EATON Non-Illuminated Selector Switch, Assembled Heavy Duty, Series: 10250T, 30.5 mm Size, 2NO-2NC Contact Configuration, Maintained Contact Mode, 3 Positions, 60 deg Throw, Lever Actuator, NEMA 3/3R/4/4X/12/13/IP65 Enclosure, Die Cast Zinc, Black

Specifications

 Actuator Lever
 Application Automation and Logic Control Equipment Applications
 Brand Name EATON
 Color Black
 Contact Configuration 2NO-2NC
 Enclosure NEMA 3/3R/4/4X/12/13/IP65
 Includes Mounting Strap and Hardware
 Manufacturer Part Number 10250T22LB
 Material Die Cast Zinc
 Number of Positions 3
 PART NUMBER KEYWORDS 10250T22LB ; 7315992 ; 782113357614 ; 78211335761 ; 00782113357614
 Series 10250T
 Size 30.5 mm
 Standards/Approvals UL Listed,CSA Certified,CE Marked
 Throw 60 deg
 Type Assembled Heavy Duty
 Video Links

Features

▪ Enclosed silver contacts with reliability nibs
▪ Diaphragm seals with drainage holes
▪ Grounding nibs on the operator casing
▪ Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
▪ Drainage holes prevent buildup of liquid inside the operator which can prevent operation in freezing environments
▪ Grounding nibs bit through paint and other coatings to provide secure ground
▪ Watertight and oiltight (indoor/outdoor) environmental conditions

Resources

 Catalog Page
 Product Data Sheet
