Eaton

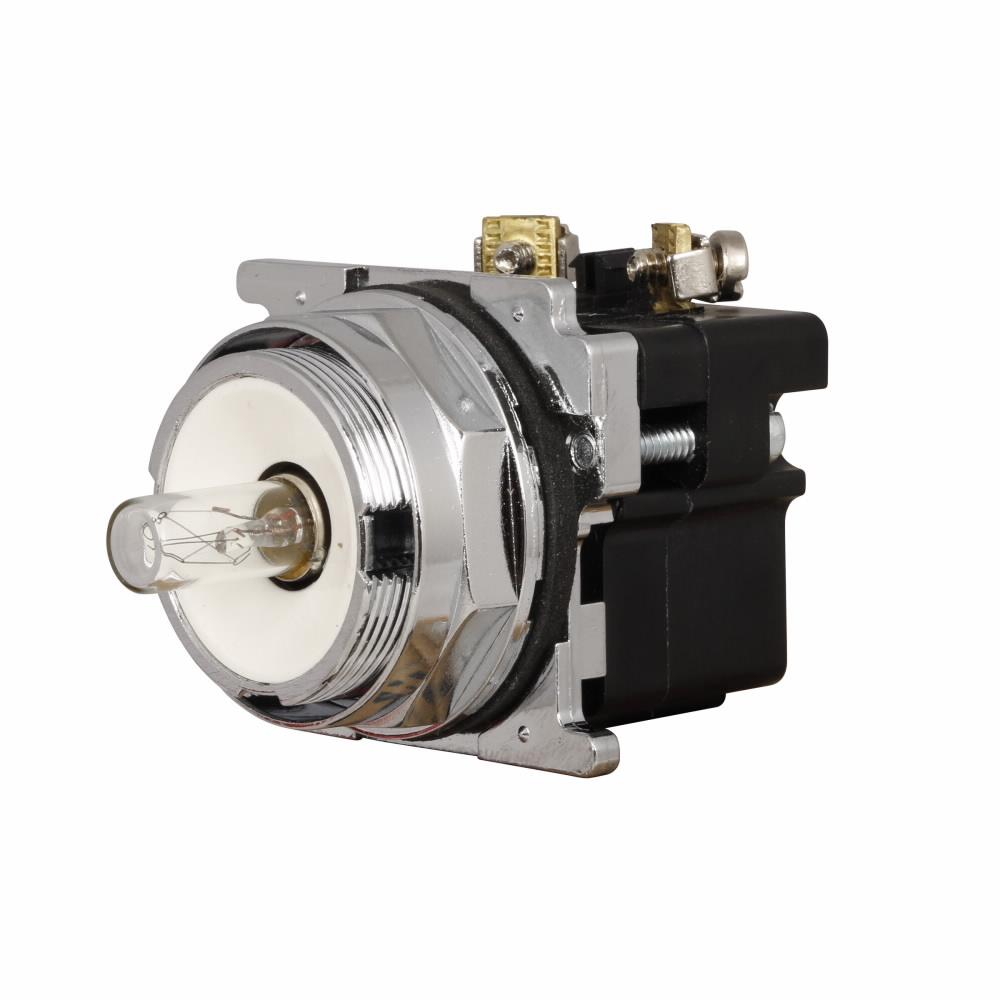

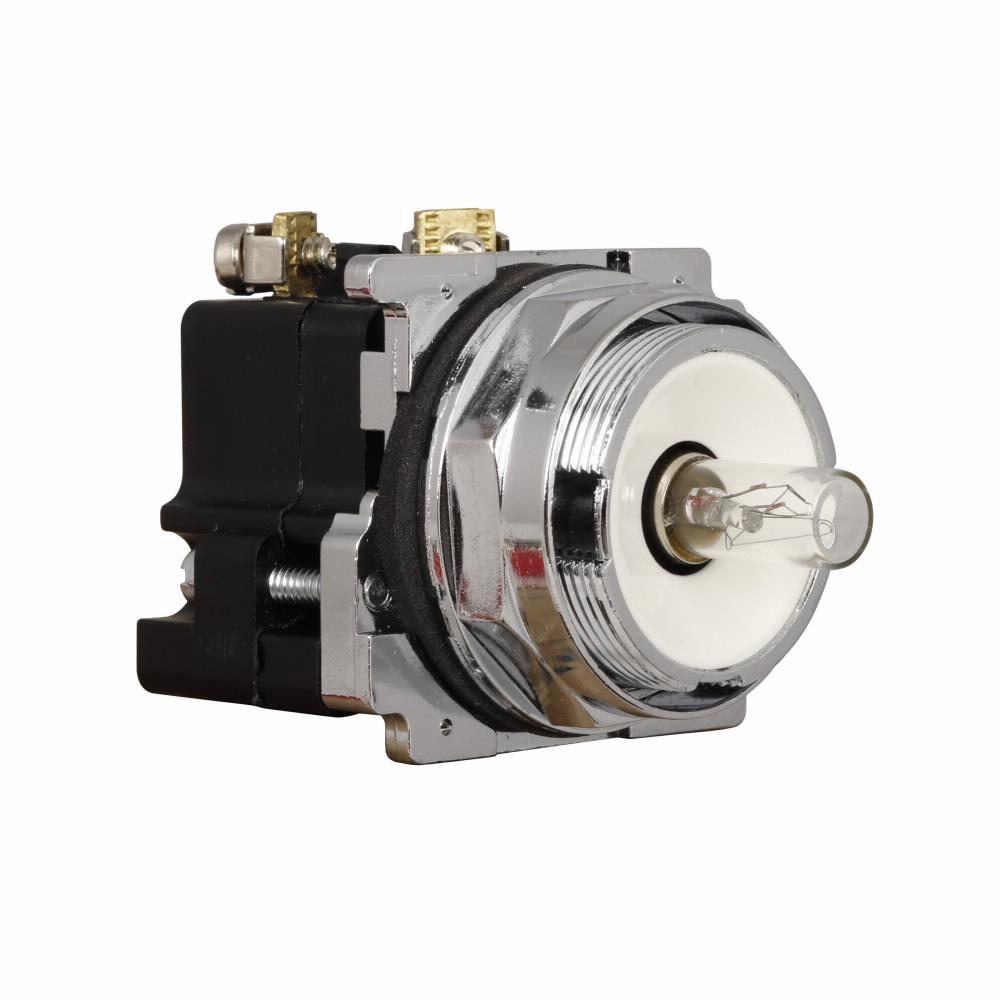

10250T202N CH IND LGT 240V RES

Mouse over image to zoom, click to enlarge

  • 10250T202N CH IND LGT 240V RES
  • 10250T202N CH IND LGT 240V RES
  • 10250T202N CH IND LGT 240V RES
  • 10250T202N CH IND LGT 240V RES

Description: EATON Indicating Light, Heavy Duty Oil/Watertight Standard Actuator, Series: 10250T, 240 VAC/VDC, Incandescent Lamp, Bezel/Housing: Die Cast Zinc, 30.5 mm Size, NEMA 3/3R/4/4X/12/13 Enclosure

Manufacturer PN: 10250T202N

UPC:  78211314825

Kendall Electric Inc PN: 2543994

Invoice Description:

10250T202N CH IND LGT 240V RES


SPEC SHEET

▸ See All in Pilot Light Operators


How Can We Make This Page Better?

EATON 10250T202N Heavy Duty Oil/Watertight Standard Actuator Indicating Light, 240 VAC/VDC

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

EATON 10250T line of 30.5 mm pushbuttons features a heavy duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the build up of liquid inside the operator, which can prevent operation in freezing environments.
EATON Indicating Light, Heavy Duty Oil/Watertight Standard Actuator, Series: 10250T, 240 VAC/VDC, Incandescent Lamp, Bezel/Housing: Die Cast Zinc, 30.5 mm Size, NEMA 3/3R/4/4X/12/13 Enclosure

Specifications

 Application Automation, Logic Control Equipment, Electrical Assemblies, Panels and OEMs Applications
 Bezel Housing Die Cast Zinc
 Brand Name EATON
 Enclosure NEMA 3/3R/4/4X/12/13
 Includes Contact Block Mounting Adapter
 Lamp Type Incandescent
 Manufacturer Part Number 10250T202N
 Series 10250T
 Size 30.5 mm
 Standards/Approvals CCC Certified|CE Certified|CSA Certified|UL Listed|Lloyd's Register|GOST-R Certified|Bureau Veritas Approved
 Type Heavy Duty Oil/Watertight Standard Actuator
 Video Links
 Voltage Rating 240 VAC/VDC

Features

▪ Enclosed silver contacts with reliability nibs
▪ Diaphragm seals with drainage holes
▪ Grounding nibs on the operator casing
▪ Reliability nibs improve contact reliability even under dry circuit and fine dust conditions
▪ Drainage holes prevent build up of liquid inside the operator which can prevent operation in freezing environments
▪ Grounding nibs bite through paint and other coatings to provide secure ground
▪ 120MB lamp number
▪ Resistor type light unit

Resources

 Catalog Page
 Product Data Sheet
