Eaton

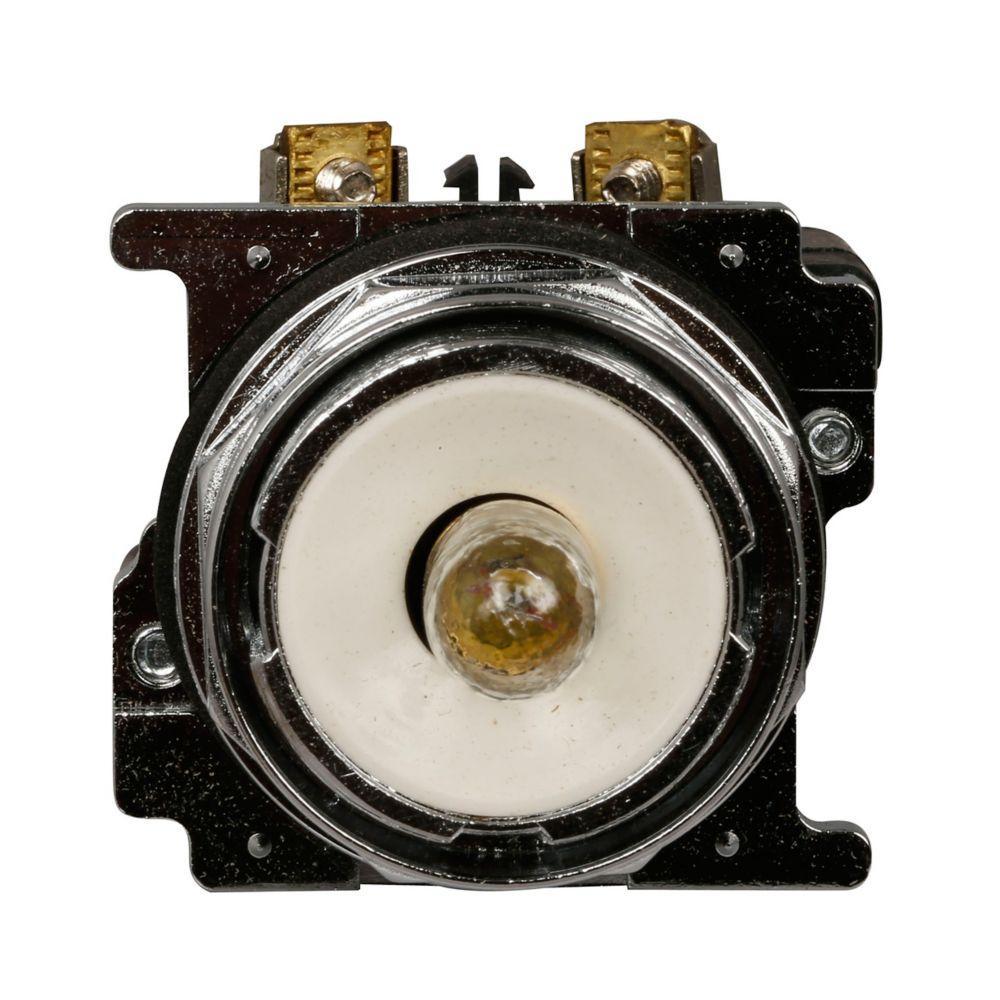

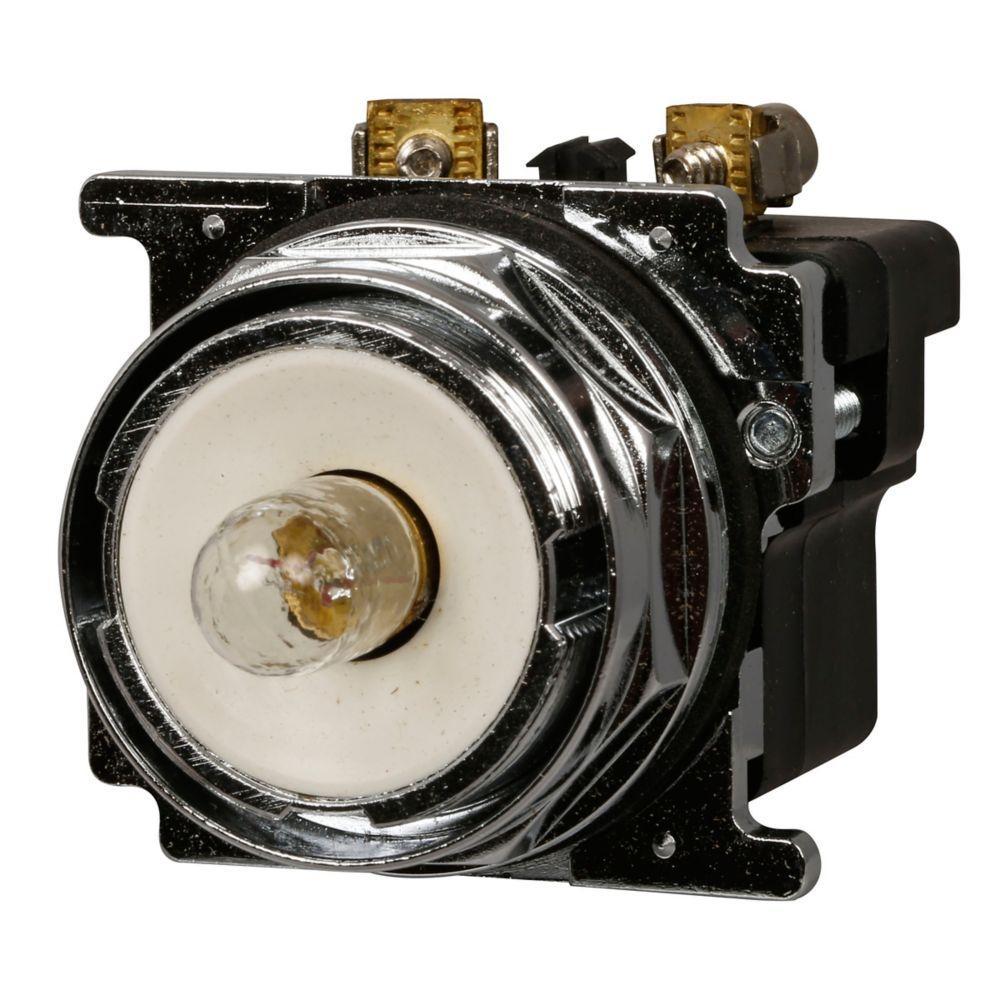

10250T182HL CH IND LIGHT 240V/XFR (ORDER LED SEPARATELY) - CLASS I DIV 2

Mouse over image to zoom, click to enlarge

  • 10250T182HL CH IND LIGHT 240V/XFR (ORDER LED SEPARATELY) - CLASS I DIV 2
  • 10250T182HL CH IND LIGHT 240V/XFR (ORDER LED SEPARATELY) - CLASS I DIV 2
  • 10250T182HL CH IND LIGHT 240V/XFR (ORDER LED SEPARATELY) - CLASS I DIV 2
  • 10250T182HL CH IND LIGHT 240V/XFR (ORDER LED SEPARATELY) - CLASS I DIV 2

Description: EATON Indicating Light, Standard Hazardous Location Oiltight Watertight Transformer, Series: 10250T, 240 V AC, LED Lamp, 30.5 mm Size, Bayonet Base, Saddle Clamp Terminal, NEMA 3/3R/3S/4/4X/12/13 Enclosure, Surface Mounting, Environmental Conditions: 32 to 140 deg F Operating, -40 to 176 deg F Storage, 95% Relative Humidity at 60 deg C

Manufacturer PN: 10250T182HL

UPC:  78211455262

Kendall Electric Inc PN: 4333821

Invoice Description:

10250T182HL CH IND LIGHT 240V/XFR (ORDER LED SEPARATELY) - CLASS I DIV 2


SPEC SHEET

▸ See All in Explosionproof Pilot Lights


How Can We Make This Page Better?

EATON 10250T182HL Standard Hazardous Location Oiltight Watertight Transformer Indicating Light, 240 V AC, Surface Mount

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

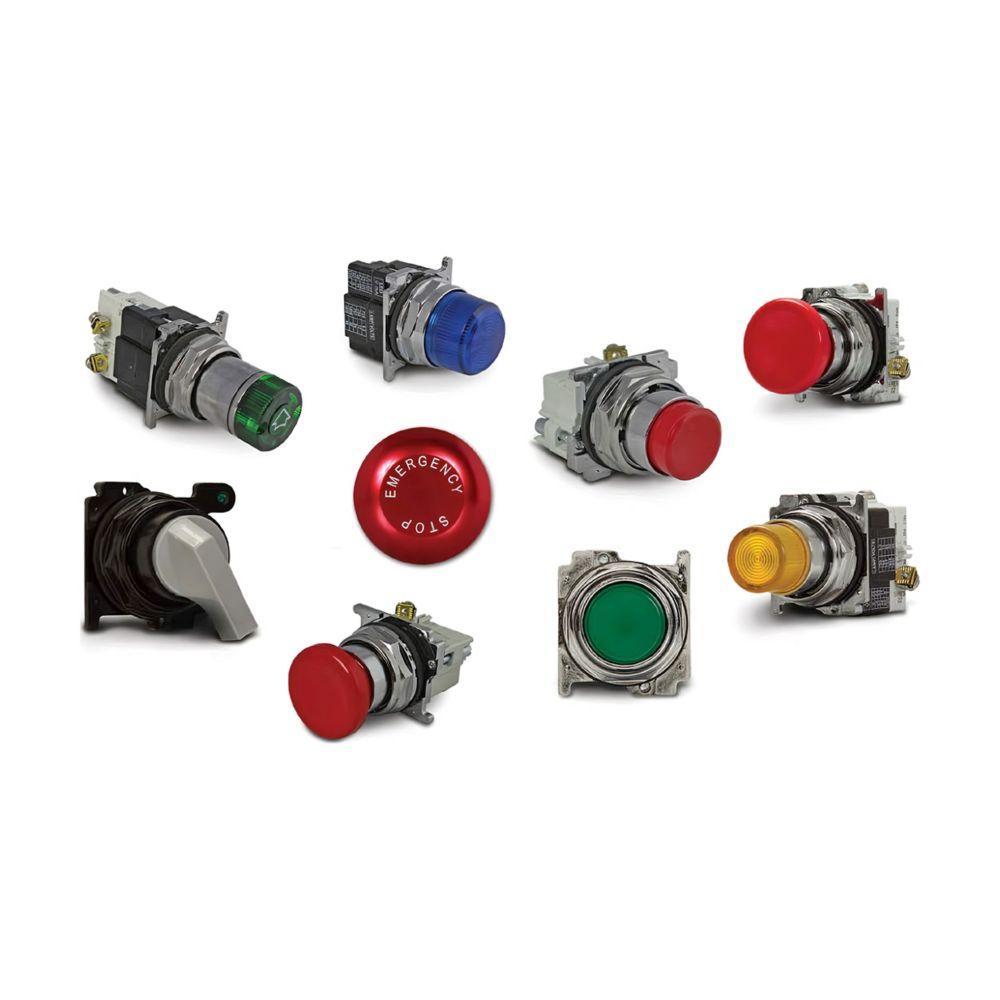

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
EATON Indicating Light, Standard Hazardous Location Oiltight Watertight Transformer, Series: 10250T, 240 V AC, LED Lamp, 30.5 mm Size, Bayonet Base, Saddle Clamp Terminal, NEMA 3/3R/3S/4/4X/12/13 Enclosure, Surface Mounting, Environmental Conditions: 32 to 140 deg F Operating, -40 to 176 deg F Storage, 95% Relative Humidity at 60 deg C

Specifications

 Application Electrical Assemblies, Panels, EOEMs, Heavy Industrials, Material Handling, Metal Forming, Original Equipment Manufacturers, Mining, Oil and Gas Applications
 Base Bayonet
 Brand Name EATON
 Enclosure NEMA 3/3R/3S/4/4X/12/13
 Environmental Conditions 32 to 140 deg F Operating, -40 to 176 deg F Storage, 95% Relative Humidity at 60 deg C
 Lamp Type LED
 Manufacturer Part Number 10250T182HL
 Mounting Type Surface
 PART NUMBER KEYWORDS 10250T182HL ; 7393285 ; 782114552629 ; 78211455262 ; 00782114552629
 Series 10250T
 Size 30.5 mm
 Standards/Approvals CSA Certified,UL Listed,CE Marked
 Terminal Type Saddle Clamp
 Type Standard Hazardous Location Oiltight Watertight Transformer
 Video Links
 Voltage Rating 240 V AC

Features

▪ EATON contact blocks feature enclosed silver contacts with pointed reliability nibs
▪ To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
▪ Durable polished chrome finish
▪ Rugged 1-piece metal body
▪ Self-grounding operators
▪ Controlled compression sealing gasket
▪ Reliability nibs on contact blocks
▪ Largest breadth of offering
▪ Without lens

Resources

 Catalog Page
 Product Data Sheet
