Eaton

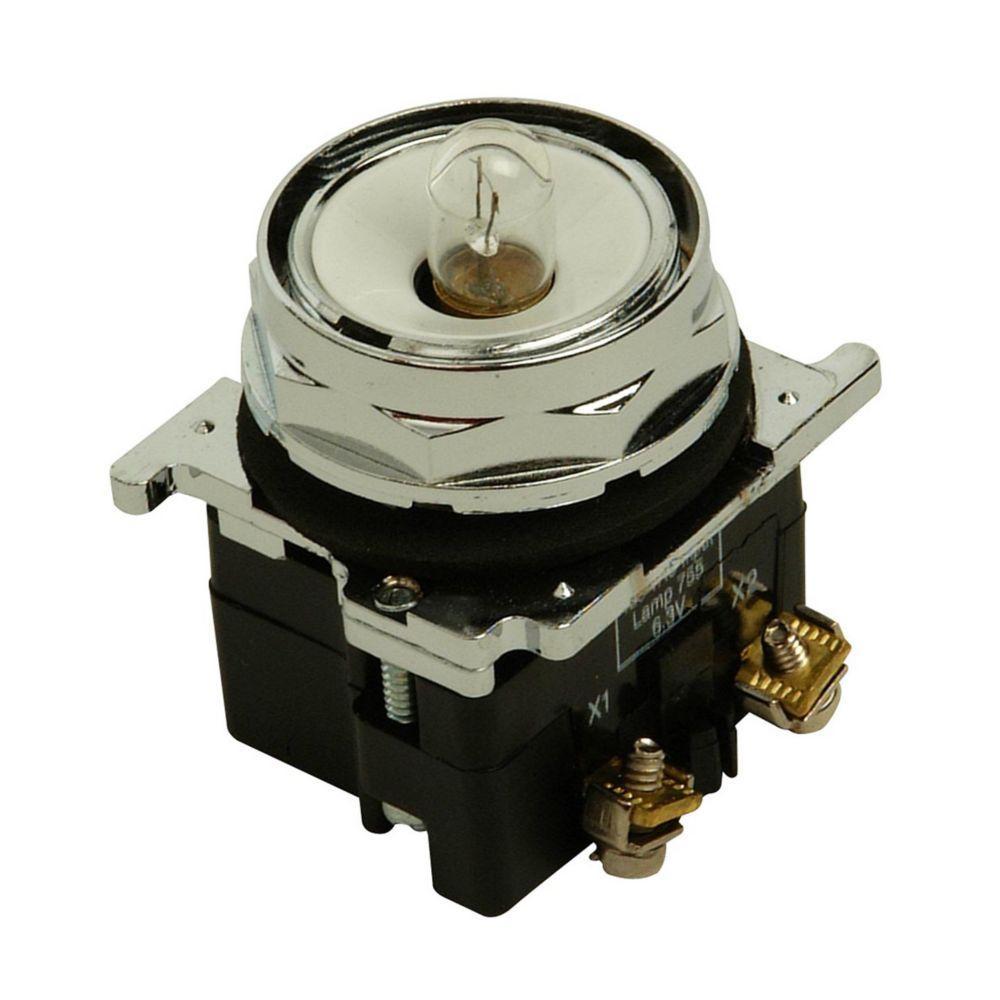

10250T181N CH IND LGT 120V/XFR

Mouse over image to zoom, click to enlarge

  • 10250T181N CH IND LGT 120V/XFR
  • 10250T181N CH IND LGT 120V/XFR

Description: EATON Indicating Light, Heavy Duty Oiltight Watertight Standard Actuator, Series: 10250T, 120 VAC, Incandescent Lamp, Bezel/Housing: Polished Chrome/Die Cast Zinc, 30.5 mm, Round, Screw Terminal, NEMA 3/3R/4/4X/12/13/IP65, Environmental Conditions: 1 to 150 deg F Operating

Manufacturer PN: 10250T181N

UPC:  78211314816

Kendall Electric Inc PN: 2017058

Invoice Description:

10250T181N CH IND LGT 120V/XFR


SPEC SHEET

▸ See All in Pilot Light Operators


How Can We Make This Page Better?

EATON 10250T181N 10250T Heavy Duty Oiltight Watertight Standard Actuator Indicating Light, 120 VAC

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

EATON 10250T line of 30.5 mm pushbuttons features a heavy duty die cast zinc construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the build-up of liquid inside the operator, which can prevent operation in freezing environments.
EATON Indicating Light, Heavy Duty Oiltight Watertight Standard Actuator, Series: 10250T, 120 VAC, Incandescent Lamp, Bezel/Housing: Polished Chrome/Die Cast Zinc, 30.5 mm, Round, Screw Terminal, NEMA 3/3R/4/4X/12/13/IP65, Environmental Conditions: 1 to 150 deg F Operating

Specifications

 Application Automation and Logic Control Equipment Applications
 Bezel Housing Polished Chrome/Die Cast Zinc
 Brand Name EATON
 Enclosure NEMA 3/3R/4/4X/12/13/IP65
 Environmental Conditions 1 to 150 deg F Operating
 Includes Contact Block Mounting Adapter
 Lamp Type Incandescent
 Manufacturer Part Number 10250T181N
 Series 10250T
 Shape Round
 Size 30.5 mm
 Standards/Approvals BAA Compliant|CCC Certified|CE Certified|CSA Certified|UL Listed|Lloyd's Register Certified|GoST-R Certified|Bureau Veritas Certified
 Terminal Type Screw
 Type Heavy Duty Oiltight Watertight Standard Actuator
 Video Links
 Voltage Rating 120 VAC

Features

▪ Contact blocks feature enclosed silver contacts with pointed reliability nibs
▪ To ensure reliable switching, these nibs bite through oxide, which can form on silver contacts, eliminating the need for expensive logic level blocks for most applications
▪ 755 lamp number
▪ Transformer type light unit
▪ 2.4 in L x 2.1 in W x 3.3 in H dimension

Resources

 Catalog Page
 Product Data Sheet
