Eaton

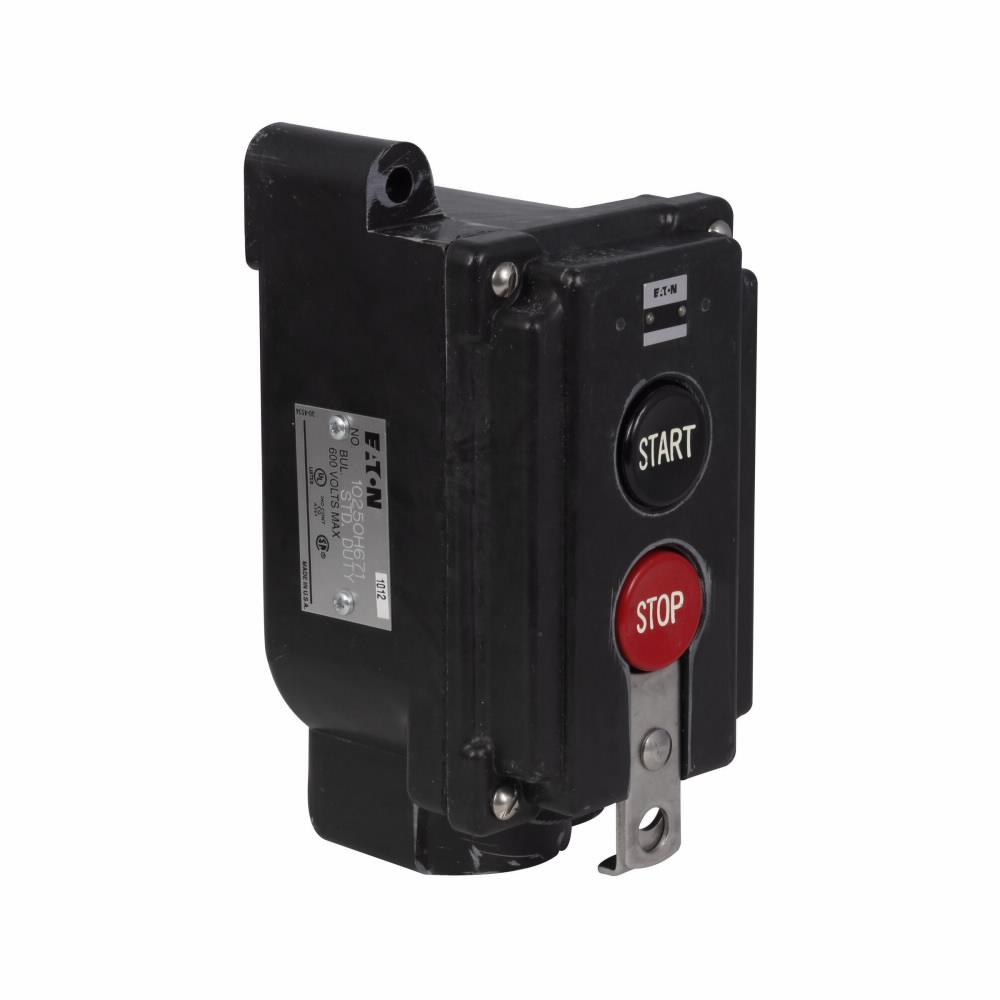

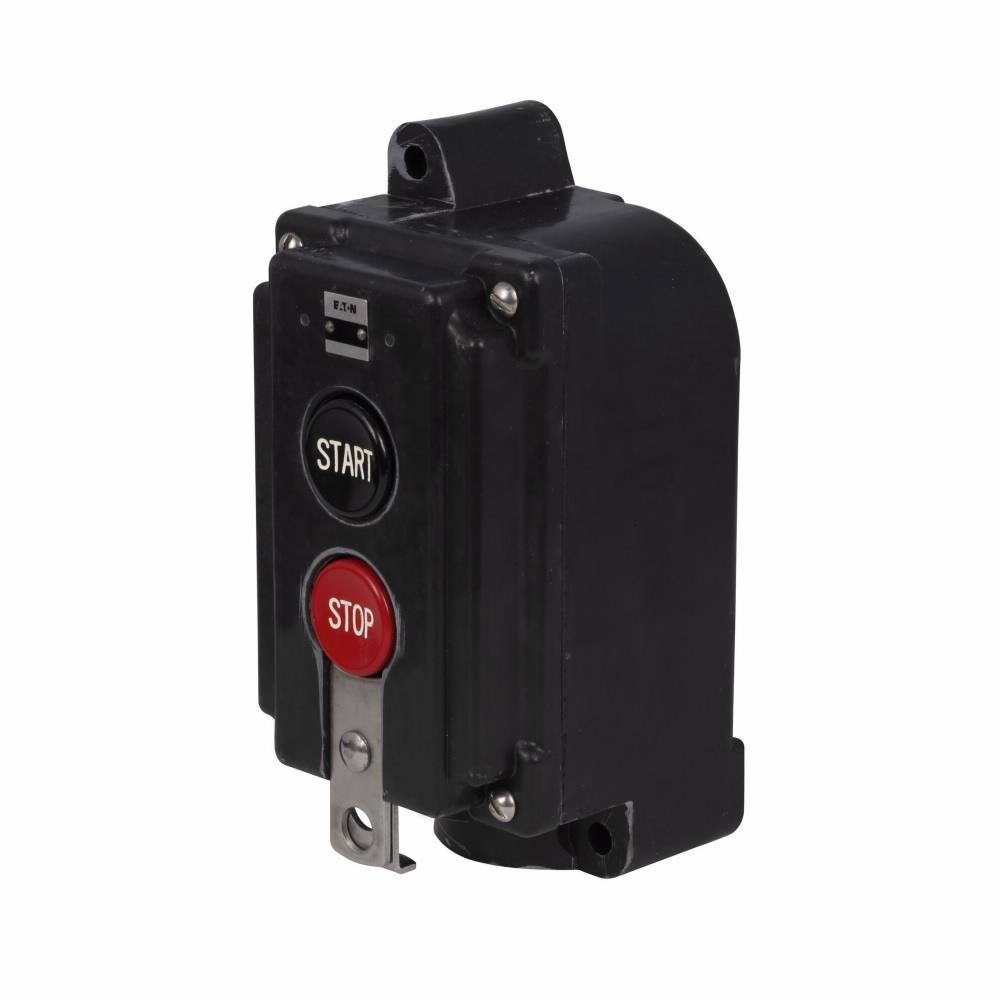

10250H2742 CH 10250 STD DUTY RND&SEL SW

Mouse over image to zoom, click to enlarge

  • 10250H2742 CH 10250 STD DUTY RND&SEL SW
  • 10250H2742 CH 10250 STD DUTY RND&SEL SW
  • 10250H2742 CH 10250 STD DUTY RND&SEL SW

Description: EATON Pushbutton Control Station, Type N Assembled Heavy Duty Mechanically Interlocked Special Purpose, Series: 10250H, 2 Operators, 2NO Contact Configuration, Flush Operator, Legend: OPEN/CLOSE, NEMA 3/3R/4/4X/12/13 NEMA Rating, Surface Mounting, 3.6 in L x 3.4 in W x 5 in H Dimensions

Manufacturer PN: 10250H2742

UPC:  78211325397

Kendall Electric Inc PN: 4773791

Invoice Description:

10250H2742 CH 10250 STD DUTY RND&SEL SW


SPEC SHEET

How Can We Make This Page Better?

EATON 10250H2742 Type N Assembled Heavy Duty Mechanically Interlocked Special Purpose Pushbutton Control Station, 2NO Contact, 2 Operators, NEMA 3/3R/4/4X/12/13 NEMA Rating

Log In for Pricing and Availability

Note: Lead times are estimates only




Description

Eaton's 10250T line of 30.5 mm pushbuttons features a heavy-duty zinc die cast construction. Reliability nibs improve contact reliability even under dry circuit and fine dust conditions. In addition, drainage holes prevent the buildup of liquid inside the operator, which can prevent operation in freezing environments.
EATON Pushbutton Control Station, Type N Assembled Heavy Duty Mechanically Interlocked Special Purpose, Series: 10250H, 2 Operators, 2NO Contact Configuration, Flush Operator, Legend: OPEN/CLOSE, NEMA 3/3R/4/4X/12/13 NEMA Rating, Surface Mounting, 3.6 in L x 3.4 in W x 5 in H Dimensions

Specifications

 Brand Name EATON
 Contact Configuration 2NO
 Dimensions 3.6 in L x 3.4 in W x 5 in H
 Legend OPEN/CLOSE
 Manufacturer Part Number 10250H2742
 Mounting Type Surface
 NEMA Rating NEMA 3/3R/4/4X/12/13
 Number of Operators 2
 PART NUMBER KEYWORDS 10250H2742 ; 7353547 ; 782113253978 ; 78211325397 ; 00782113253978
 Series 10250H
 Standards/Approvals CSA Certified,UL 505,CE Marked
 Type Type N Assembled Heavy Duty Mechanically Interlocked Special Purpose
 Video Links

Features

▪ PresTest illumination

Resources

 Catalog Page
 Product Data Sheet
