Eaton

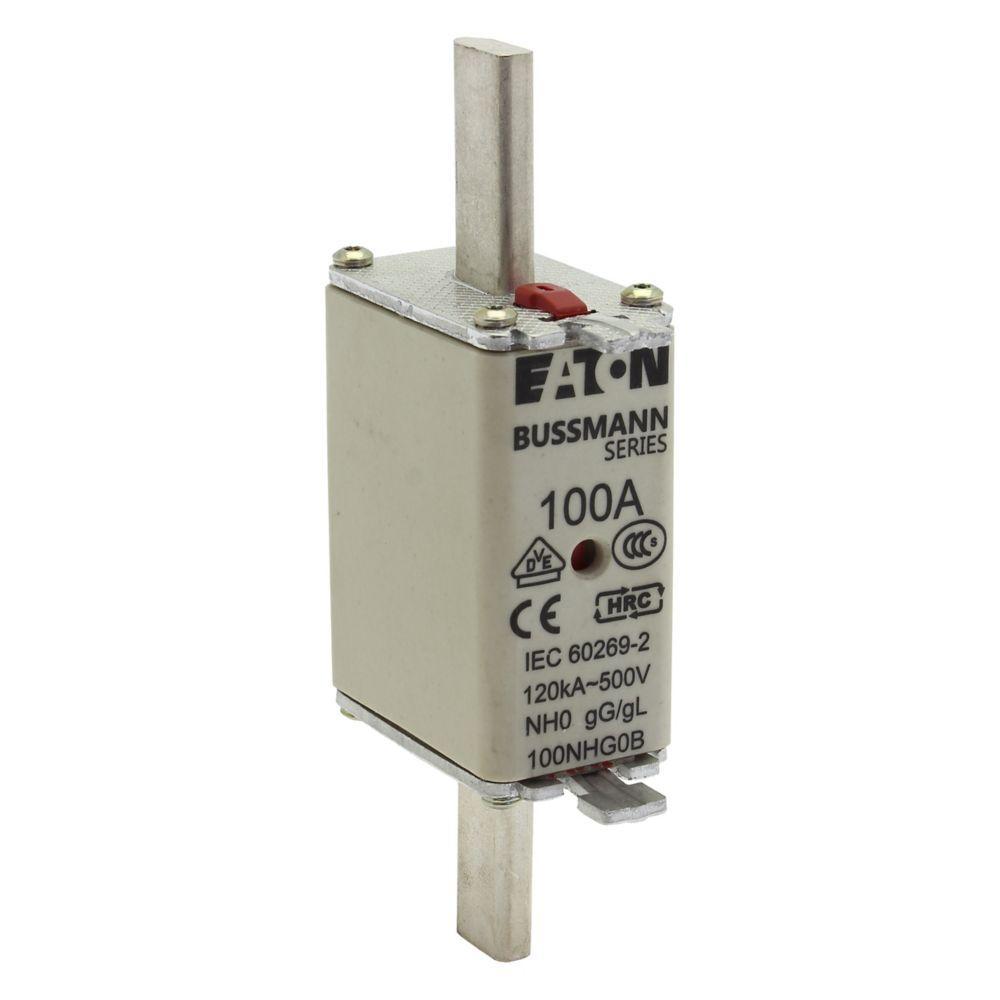

  • 100NHG0B BUS NH FUSE 100A 500V GG/GL SIZE 0
  • 100NHG0B BUS NH FUSE 100A 500V GG/GL SIZE 0
  • 100NHG0B BUS NH FUSE 100A 500V GG/GL SIZE 0
  • 100NHG0B BUS NH FUSE 100A 500V GG/GL SIZE 0

Description: Bussmann NH Fuse Link, Size 0 Dual Indicator Low Voltage, Series: NHG, 500 V, 100 A, 45 to 62 Hz Frequency, Rated Breaking Capacity: 120 kA, Holder Mounting, For Use With: Class C gG/gL Fuse, Ceramic

Manufacturer PN: 100NHG0B

UPC:  05171223285

Kendall Electric Inc PN: 3788943

Invoice Description:

100NHG0B BUS NH FUSE 100A 500V GG/GL SIZE 0


SPEC SHEET

▸ See All in Fuse Links


How Can We Make This Page Better?

Bussmann 100NHG0B Size 0 Dual Indicator Low Voltage NH Fuse Link, 500 V, 100 A, For Use With Class C gG/gL Fuse, Ceramic

Log In for Pricing and Availability




Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.
Bussmann NH Fuse Link, Size 0 Dual Indicator Low Voltage, Series: NHG, 500 V, 100 A, 45 to 62 Hz Frequency, Rated Breaking Capacity: 120 kA, Holder Mounting, For Use With: Class C gG/gL Fuse, Ceramic

Specifications

 Amperage Rating 100 A
 Application Electrical Assemblies, Panels and EOEMs, Control Panels for Machines, Aftermarket, Panel Builders, Industrial Facilities and Factories, Power Distribution and Control, Safety and Security Systems Applications
 Brand Name Bussmann
 Frequency Rating 45 to 62 Hz
 Manufacturer Part Number 100NHG0B
 Material Ceramic
 Mounting Type Holder
 PART NUMBER KEYWORDS 100NHG0B ; 10771195 ; 051712232852 ; 51712232852 ; 05171223285 ; 5027590428224 ; 00051712232852
 Rated Breaking Capacity 120 kA
 Series NHG
 Standards/Approvals IEC 60269-2 ,IEC 60269-1 ,DIN 43620 ,IEC 60269-1 ,DIN 43620 ,IEC 60269-2 ,DIN 43620 ,IEC 60269-2 ,IEC 60269-1 ,IEC 60269-2 ,DIN 43620 ,IEC 60269-1 ,IEC 60269-2 ,IEC 60269-1 ,DIN 43620 ,IEC 60269-1 ,IEC 60269-2 ,DIN 43620 ,DIN 43620 ,IEC 60269-2 ,IEC 60269-1,RoHS Compliant,CE Marked,CE-Kennzeichnung,RoHS-konform,Conformité RoHS,Marquage CE,RoHS-compliant,CE-markering,Con marchio CE,Conforme a RoHS,CE-märkt,RoHS-Certified,CE-merket,RoHS-kompatibel
 Suitable For Use With Class C gG/gL Fuse
 Type Size 0 Dual Indicator Low Voltage
 Video Links
 Voltage Rating 500 V

Features

▪ Square body with knife blade contact
▪ Live gripping lugs
